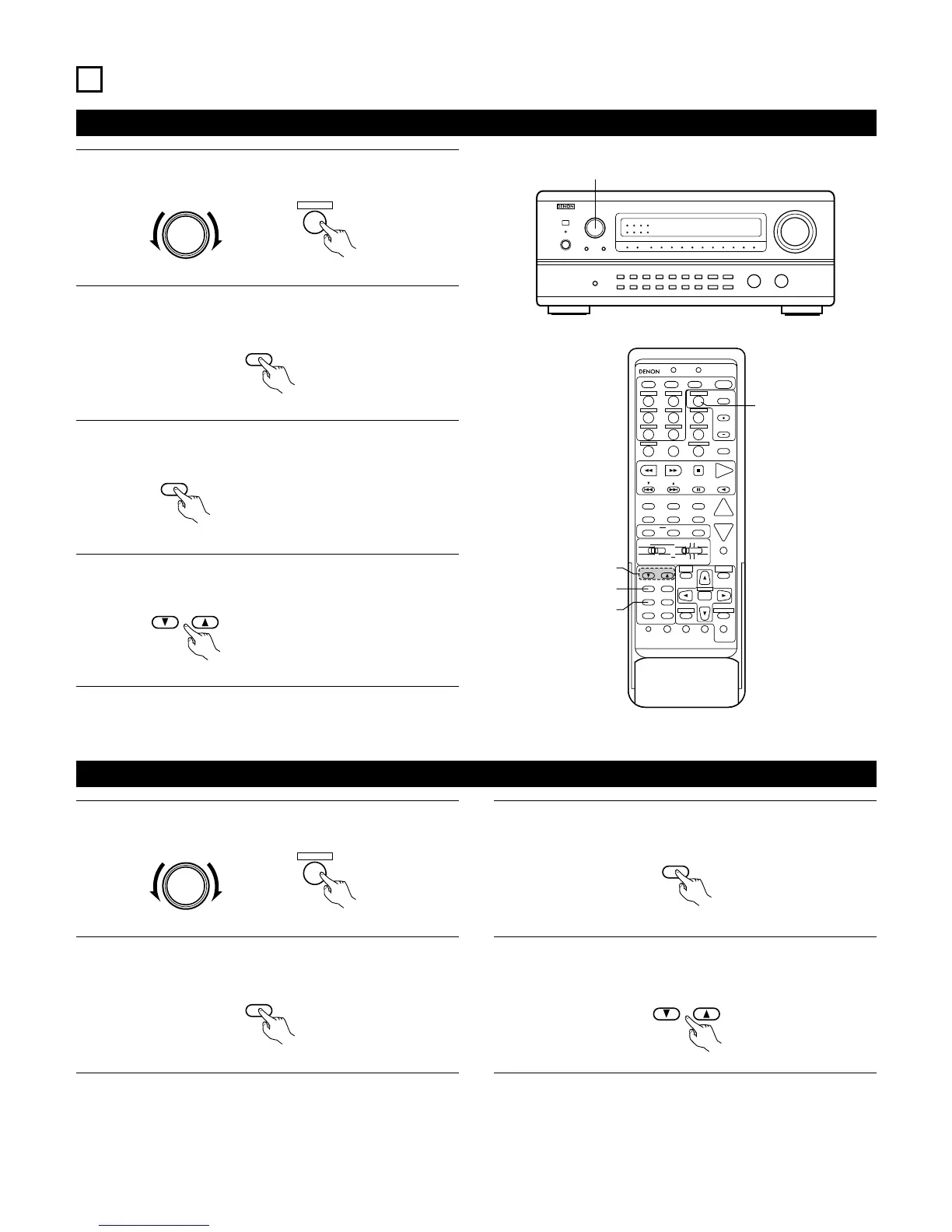

LISTENING TO THE RADIO
Auto tuning
1
Set the input function to “TUNER”.
INPUT SELECTOR
TUNER
3
(Main unit) (Remote control unit)
2
Watching the display, press the BAND button to select the
desired band (AM or FM).
BAND
3
Press the MODE button to set the auto tuning mode.
MODE
“Auto” appears on the display.
4
Press the TUNING UP or DOWN button.
TUNING
Automatic searching begins, then
stops when a station is tuned in.
If tuning does not stop at the desired station, use to the “Manual
tuning” operation.
1
DVD
START LEARNED/TX
HOME THX CINEMA
TUNING
BAND
TITLE
MENU/GUIDE
MODE
MEMORY
USE/LEARN T.TONE MULTI SPEAKLER DVD
SET UP
RETURN
STATUS
DISPLAY
ON SCREEN
DOLBY / DTS
SURROUND
DIRECT
DSP SIMULATION
5CH / 7CH STEREO
STEREO
INPUT MODE
ANALOG EXT.IN
MUTING
MASTER VOL.
VOLUME DISC SKIP+
SYSTEM CALL POWER
VDP TUNER SHIFT
TV/DBS V.AUX PHONO
VCR-1 CD
MD
/
TAPE-1
CHANNEL
VCR-2
TAPE-2 MON
TV/VCR
AVR/AVC VIDEO DVD TV
AUDIO
VDP VCR
CD
MD
MULTI
DECK
SYSTEM
SETUP
SURROUND
PARAMETER
CH SELECT
SELECT
RC-869
123
4
SET
A / B
CALL OFF
ENTER
ON
/
SOURCE
56
789
+10
0
4
2
3
1
Manual tuning
1
Set the input function to “TUNER”.
INPUT SELECTOR
TUNER
3
(Main unit) (Remote control unit)
2
Watching the display, press the BAND button to select the
desired band (AM or FM).
BAND
3
Press the MODE button to set the manual tuning mode.
Check that the display’s “AUTO” indicator turns.
MODE
4
Press the TUNING UP or DOWN button to tune in the desired
station.
The frequency changes continuously when the button is held
in.
TUNING
NOTES:
When in the auto tuning mode on the FM band, the “STEREO” indicator lights on the display when a stereo broadcast is tuned in. At open
frequencies, the noise is muted and the “TUNED” and “STEREO” indicators turn off.
When the manual tuning mode is set, FM stereo broadcasts are received in monaural and the “STEREO” indicator turns off.
