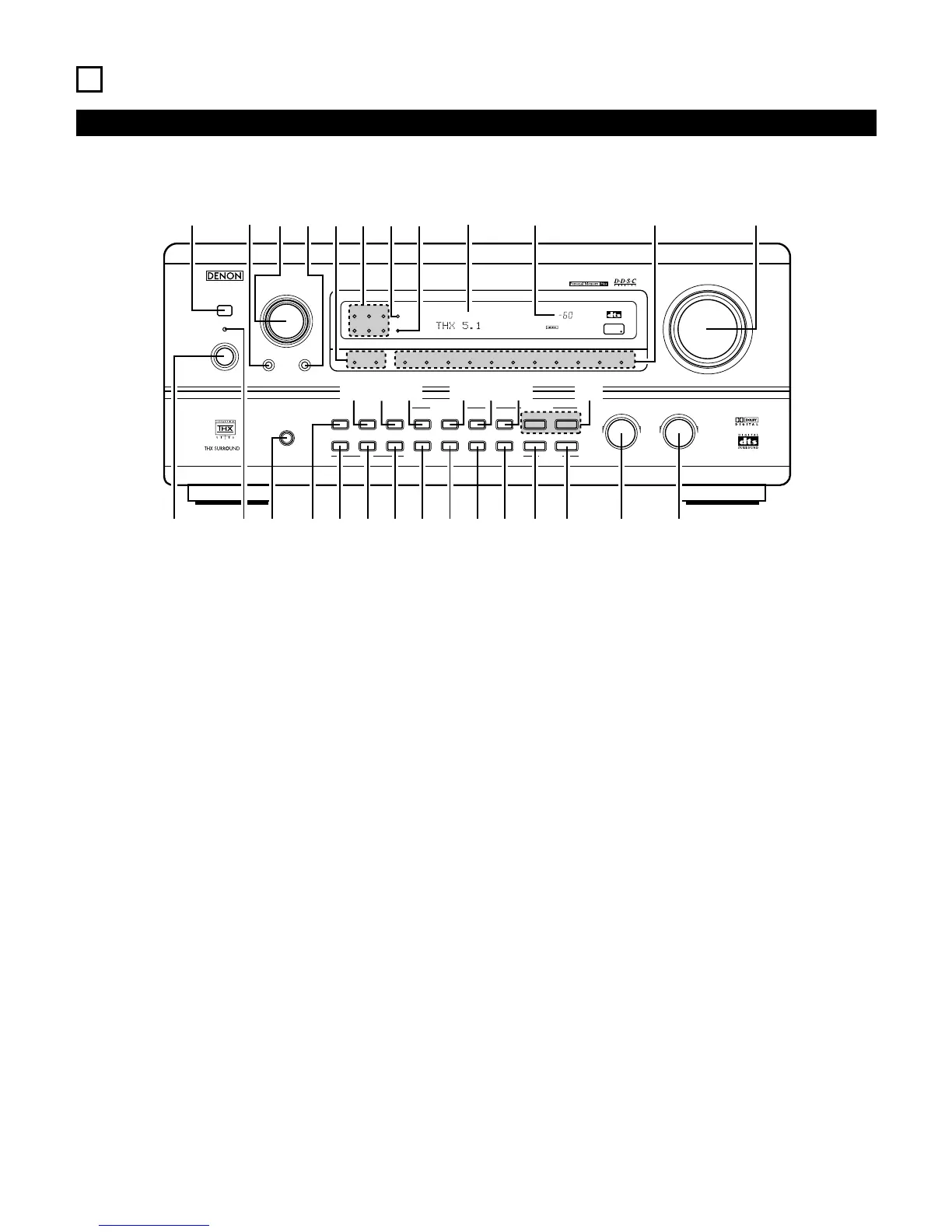

PART NAMES AND FUNCTIONS
Front Panel
• For details on the functions of these parts, refer to the pages given in parentheses ( ).
PRECISION AUDIO COMPONENT / AV SURROUND RECEIVER
DSP
SIMULATION
MASTER VOLUME
REMOTE SENSOR
ON / STANDBY
INPUT SELECTOR
TAPE-2 MON
HOME
THX CINEMA
VOLUME LEVEL
PHONES
BASS
TREBLE
INPUT MODE
DIRECT STEREO
ANALOG
DOLBY / DTS
SURROUND
6.1 / 7.1
SURROUND
5CH / 7CH
STEREO
SURROUND MODE
TUNING PRESET
SHIFT
6CH / 8CH
EXT. IN
VIDEO
SELECT
TONE
DEFEAT
DIMMER
STATUS
MODE
SOURCE
INPUT
REC / MULTI
DOWN UP
TUNER DVD VDP TV / DBS VCR-1 VCR-2 V. AUX MD / TAPE-1 TAPE-2 MONPHONO CD
L
C
R
SL
S
SR
CH INDICATOR
LOCK
LFE
SURROUND SPEAKER
BA
qwe
r
tyuio!0!1!2 !3 @1 @2
#4 #3 #2
#1
#0 @9 @8 @7 @6 @5 @4 @3
!4 !5 !6 !7 !8 !9 @0
AVR-4800
SURROUND
BACK
q
Power switch...........................................................................(39)
w
Power indicator........................................................................(39)
e
Headphones jack (PHONES)....................................................(41)
r
6.1/7.1 SURROUND button.....................................................(51)
t
INPUT MODE selector button.................................................(40)
y
ANALOG button.......................................................................(40)
u
6CH/8CH external input button
(6CH/8CH EXT. IN)...................................................................(44)
i
VIDEO SELECT button ............................................................(42)
o
TONE DEFEAT button .............................................................(41)
!0
STATUS button ........................................................................(42)
!1
DIMMER button ......................................................................(42)
!2
REC/MULTI MODE selector button.........................................(43)
!3
REC/MULTI SOURCE selector button.....................................(43)
!4
DIRECT button.........................................................................(54)
!5
STEREO button........................................................................(54)
!6
DOLBY/DTS SURROUND button............................................(54)
!7
5CH/7CH STEREO button .......................................................(54)
!8
DSP SIMULATION button .......................................................(54)
!9
SHIFT button .....................................................................(58, 59)
@0
PRESET UP/DOWN button................................................(58, 59)
@1
BASS adjustment control ........................................................(41)
@2
TREBLE adjustment control ....................................................(41)
@3
MASTER VOLUME control......................................................(41)
@4
Input source indicators
@5
Master volume indicator (VOLUME LEVEL)............................(41)
@6
Display
@7
Low frequency effect indicator (LFE)......................................(49)
@8
Digital lock indicator (LOCK)....................................................(41)
@9
Dolby digital/DTS surround input channel indicators
[CH INDICATOR] .…………………………………………………(49)
#0
Surround speaker system indicators
(SURROUND SPEAKER A/B)
#1
Tape 2 monitor button (TAPE-2 MON).....................................(40)
#2
Input source selector dial (INPUT SELECT).............................(40)
#3
HOME THX CINEMA button ...................................................(49)
#4
Remote control sensor (REMOTE SENSOR) ..........................(31)

Denon AVR-4800 Specifications

Power Amplifier

stereo rated output	125 W + 125 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
surround rated output	125 W x 5 ch (8 Ω/ohms, 1 kHz with 0.7% T.H.D.)
dynamic power	170 W x 2 ch (8 Ω/ohms), 270 W x 2 ch (4 Ω/ohms), 350 W x 2 ch (2 Ω/ohms)

Analog Audio

input sensitivity / input impedance	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +0, –3 dB (DIRECT mode)
S/N ratio	105 dB (DIRECT mode)

Digital Audio

D/A output rated output	2 V (at 0 dB playback)
total harmonic distortion	0.005% (1 kHz, at 0 dB)
S/N ratio	105 dB

Phono Equalizer

input sensitivity	2.5 mV
RIAA deviation	±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio	74 dB (A weighting, with 5 mV input)

Video

standard video jacks input/output level and impedance	1 Vp-p, 75 Ω/ohms
S-video jacks input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; C signal — 0.286 Vp-p, 75 Ω/ohms
color component video terminal input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; Cb signal — 0.7 Vp-p, 75 Ω/ohms; Cr signal — 0.7Vp-p, 75 Ω/ohms

Tuner

receiving range	87.5 MHz ~ 107.9 MHz, 520 kHz ~ 1710 kHz
usable sensitivity	1.0 µV (11.2 dBf), 18 µV
signal to noise ratio (IHF-A)	MONO 80 dB, STEREO 75 dB

General

power supply	AC 120 V, 60 Hz
power consumption	10.9 A
maximum external dimensions	434 (W) x 181 (H) x 494 (D) mm (17-3/32” x 7-1/8” x 19-29/64”)

Remote Control Unit

batteries	R6P/AA Type (two batteries)
external dimensions	70 (W) x 215 (H) x 24 (D) mm (2-3/4” x 8-15/32” x 15/16”)
weight	200 g (Approx. 7 oz) (including batteries)
