Connecting a Video Component Equipped with Color Difference (Component - Y, R-Y, B-Y) Video
Jacks (DVD Player)
• When making connections, also refer to the operating instructions of the other components.
• The signals input to the color difference (component) video jacks are not output from the VIDEO output jack (yellow) or the S-Video output jack.
In addition, the video signals input to the VIDEO input (yellow) and S-Video input jacks are not output to the color difference (component) video
jacks.
• The AVR-4800’s on-screen display signals are not output from the color difference (component) video output jacks (MONITOR OUT).
• Some video sources with component video outputs are labeled Y, Pb, Pr, or Y, Cb, Cr, or Y, R-Y, B-Y. These terms all refer to component video
color difference output.
OUT
OUT
R L
YC
B
DVD TV/DBS
COMPONENT VIDEO
FRONT
/ EFECT, SB
R L
SURROUND
POWER
AMP
MONITOR
ROOM TO ROOM
REMOTE
CONTROL
CR YCB CR YCB CR
A
IN
IN IN
SB-R SB / SB-L
YPrPb
B
B
VIDEO OUT
Pr
Y
Pb
COMPONENT
VIDEO IN
COMPONENT
DVD player
Monitor TV

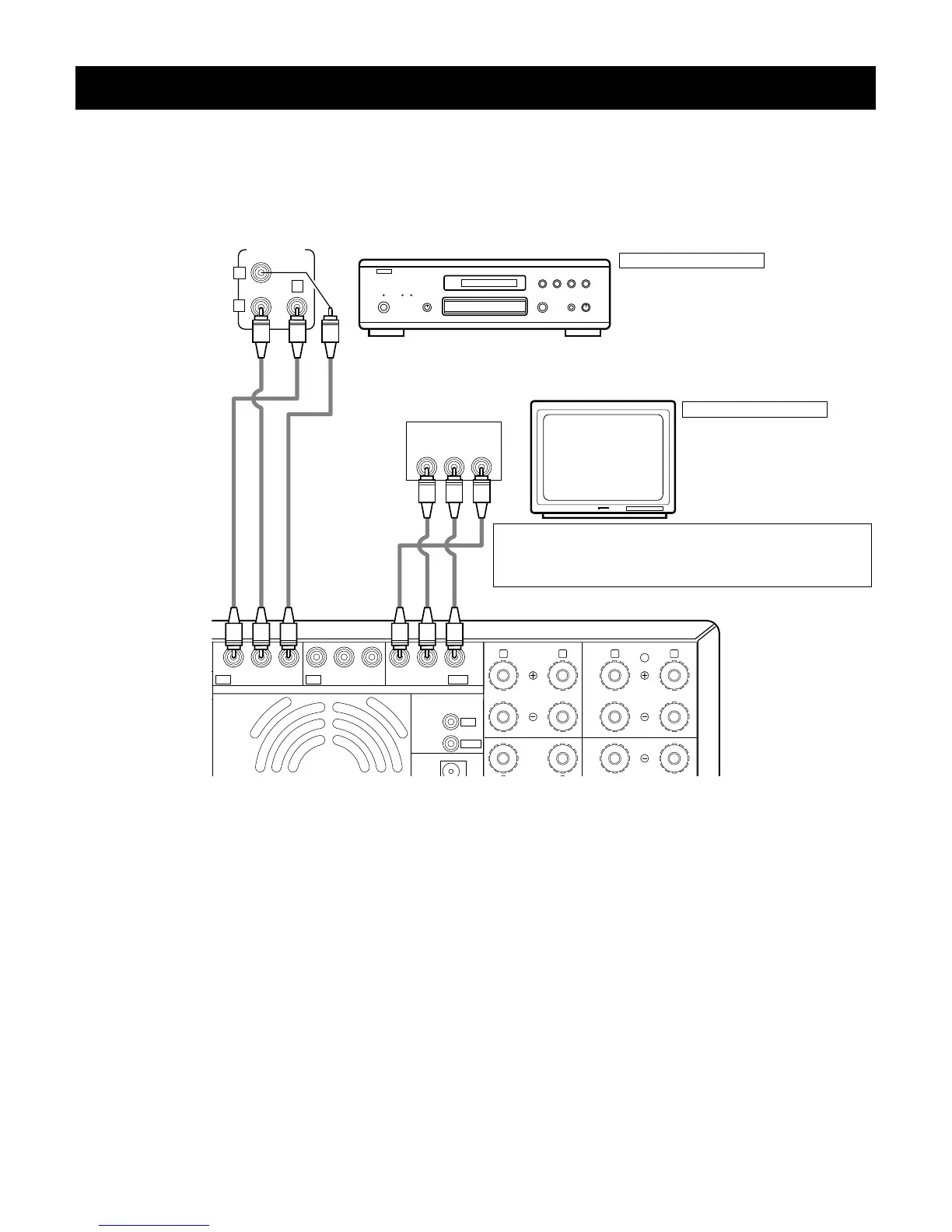

Connecting a DVD player
Connecting a monitor TV
DVD IN jacks
• Connect the DVD player’s color difference
(component) video output jacks (COMPONENT
VIDEO OUTPUT) to the COMPONENT DVD IN jack
using 75 Ω/ohms coaxial video pin-plug cords.
• In the same way, another video source with
component video outputs such as a DTV/DBS
tuner, etc., can be connected to the TV/DBS color
difference (component) video jacks.
MONITOR OUT jack
• Connect the TV’s color difference
(component) video input jacks
(COMPONENT VIDEO INPUT) to the
COMPONENT MONITOR OUT jack
using 75 Ω/ohms coaxial video pin-
plug cords.
• The color difference input jacks may be indicated differently on some TVs,
monitors or video components (“Pr, Pb and Y”, “R-Y, B-Y and Y”, “Cr, Cb and
Y”, etc.). For details, carefully read the operating instructions included with
the TV or other component.

Denon AVR-4800 Specifications

Power Amplifier

stereo rated output	125 W + 125 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
surround rated output	125 W x 5 ch (8 Ω/ohms, 1 kHz with 0.7% T.H.D.)
dynamic power	170 W x 2 ch (8 Ω/ohms), 270 W x 2 ch (4 Ω/ohms), 350 W x 2 ch (2 Ω/ohms)

Analog Audio

input sensitivity / input impedance	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +0, –3 dB (DIRECT mode)
S/N ratio	105 dB (DIRECT mode)

Digital Audio

D/A output rated output	2 V (at 0 dB playback)
total harmonic distortion	0.005% (1 kHz, at 0 dB)
S/N ratio	105 dB

Phono Equalizer

input sensitivity	2.5 mV
RIAA deviation	±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio	74 dB (A weighting, with 5 mV input)

Video

standard video jacks input/output level and impedance	1 Vp-p, 75 Ω/ohms
S-video jacks input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; C signal — 0.286 Vp-p, 75 Ω/ohms
color component video terminal input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; Cb signal — 0.7 Vp-p, 75 Ω/ohms; Cr signal — 0.7Vp-p, 75 Ω/ohms

Tuner

receiving range	87.5 MHz ~ 107.9 MHz, 520 kHz ~ 1710 kHz
usable sensitivity	1.0 µV (11.2 dBf), 18 µV
signal to noise ratio (IHF-A)	MONO 80 dB, STEREO 75 dB

General

power supply	AC 120 V, 60 Hz
power consumption	10.9 A
maximum external dimensions	434 (W) x 181 (H) x 494 (D) mm (17-3/32” x 7-1/8” x 19-29/64”)

Remote Control Unit

batteries	R6P/AA Type (two batteries)
external dimensions	70 (W) x 215 (H) x 24 (D) mm (2-3/4” x 8-15/32” x 15/16”)
weight	200 g (Approx. 7 oz) (including batteries)
