Denon AVR-4800 User Manual

43

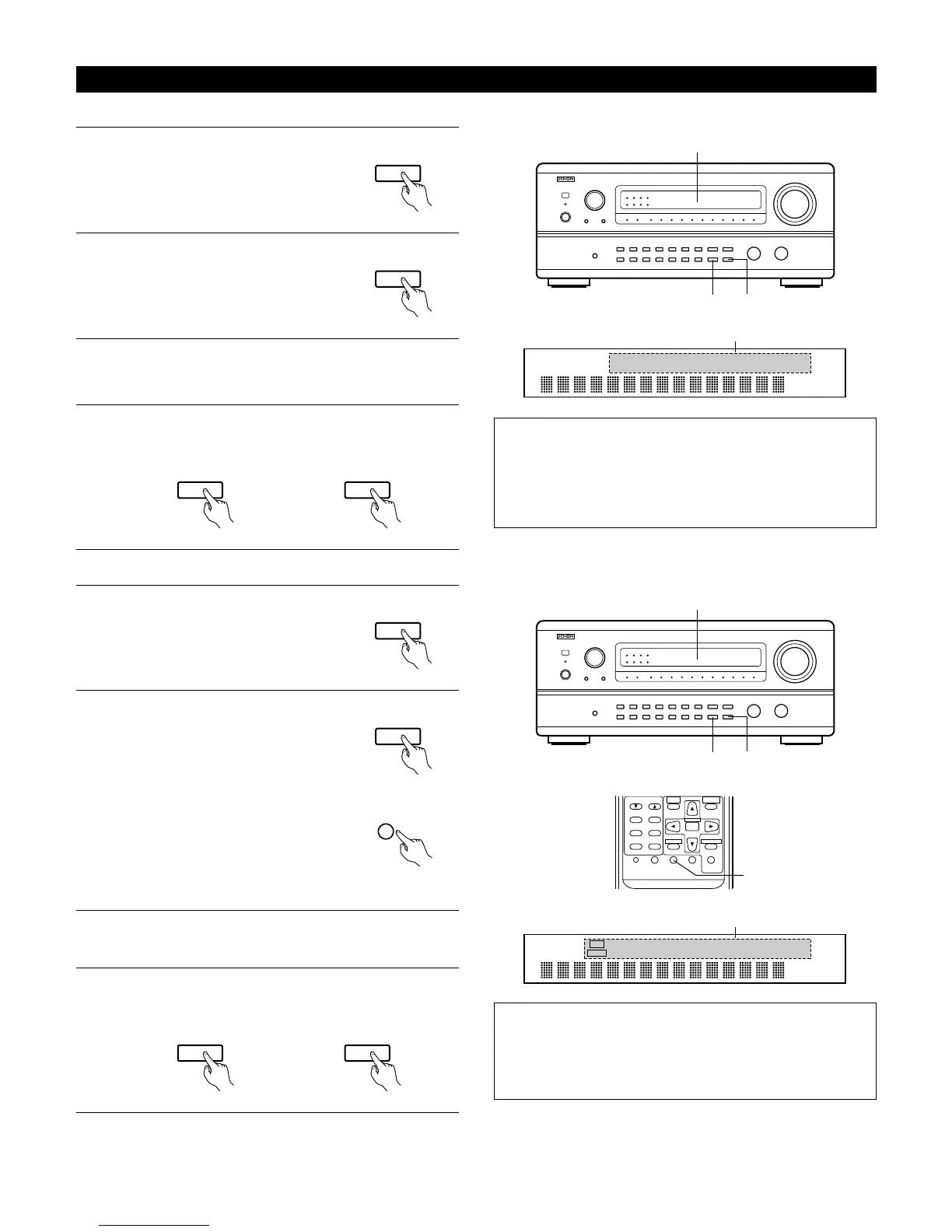

Multi-source recording/playback
[1] Playing one source while recording another (REC OUT mode)
1
Press the REC/MULTI MODE button
until “REC OUT SOURCE” appears on
the set’s display.
MODE
2
Press the REC/MULTI SOURCE button
until the source you want to record
appears on the set’s display.
• The indicator for the selected
program source lights.
SOURCE
3
Set the recording mode.
• For operating instructions, refer to the manual of the
component on which you want to record.
4
To cancel, press the REC/MULTI MODE button or press the
REC/MULTI SOURCE button until “SOURCE” appears on the
display.
MODE
SOURCE
or
[2] Outputting a program source to an amplifier, etc., in a different room (MULTI mode)
1
Press the REC/MULTI MODE button
until “M-SOURCE SOURCE” appears
on the set’s display.
MODE
2
Press the REC/MULTI SOURCE button
until the source you want to output
appears on the set’s display.
• The “MULTI” indicator lights.
• The indicator for the selected
program source lights.
• When the AVR-4800 is in the REC
OUT mode, the source cannot be
output using the MULTI button on the
remote control unit.
SOURCE
(Main unit)
MULTI
(Remote control unit)
3
Start playing the source to be output.
• For operating instructions, refer to the manuals of the
respective components.
4
To cancel, either press the REC/MULTI MODE button or press
the REC/MULTI SOURCE button until “SOURCE” appears on
the display.
MODE
SOURCE
or
1,2
1,4 2,4
VCR -1 -2 V.AUX MD / TAPE -1 -2
PHONO CD TUNER AUX DVD / VDP TV / DBS
2
Display
NOTES:
• Recording sources other than digital inputs selected in the REC
OUT mode are also output to the multi source audio/video
output jacks.
• Digital signals are not output from the MULTI SOURCE or
audio/video output jacks.
• Only the currently playing source can be recorded to TAPE-2.
1,2
1,4 2,4
TUNING
BAND
TITLE
MENU/GUIDE
MODE
MEMORY
USE/LEARN T.TONE MULTI SPEAKER DVD
SET UP
RETURN
STATUS
DISPLAY
ON SCREEN
SYSTEM
SETUP
SURROUND
PARAMETER
CH SELECT
SELECT
ENTER
2
VCR -1 -2 V.AUX MD / TAPE -1 -2
PHONO CD TUNER AUX DVD / VDP TV / DBS
2
REC
MULTI
Display
NOTES:
• The signals of the source selected in the MULTI mode are also
output from the MD/TAPE-1 and VCR recording output
terminals.
• Digital signals are not output from the multi source audio output
jacks.

Denon AVR-4800 Specifications

Power Amplifier

stereo rated output	125 W + 125 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
surround rated output	125 W x 5 ch (8 Ω/ohms, 1 kHz with 0.7% T.H.D.)
dynamic power	170 W x 2 ch (8 Ω/ohms), 270 W x 2 ch (4 Ω/ohms), 350 W x 2 ch (2 Ω/ohms)

Analog Audio

input sensitivity / input impedance	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +0, –3 dB (DIRECT mode)
S/N ratio	105 dB (DIRECT mode)

Digital Audio

D/A output rated output	2 V (at 0 dB playback)
total harmonic distortion	0.005% (1 kHz, at 0 dB)
S/N ratio	105 dB

Phono Equalizer

input sensitivity	2.5 mV
RIAA deviation	±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio	74 dB (A weighting, with 5 mV input)

Video

standard video jacks input/output level and impedance	1 Vp-p, 75 Ω/ohms
S-video jacks input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; C signal — 0.286 Vp-p, 75 Ω/ohms
color component video terminal input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; Cb signal — 0.7 Vp-p, 75 Ω/ohms; Cr signal — 0.7Vp-p, 75 Ω/ohms

Tuner

receiving range	87.5 MHz ~ 107.9 MHz, 520 kHz ~ 1710 kHz
usable sensitivity	1.0 µV (11.2 dBf), 18 µV
signal to noise ratio (IHF-A)	MONO 80 dB, STEREO 75 dB

General

power supply	AC 120 V, 60 Hz
power consumption	10.9 A
maximum external dimensions	434 (W) x 181 (H) x 494 (D) mm (17-3/32” x 7-1/8” x 19-29/64”)

Remote Control Unit

batteries	R6P/AA Type (two batteries)
external dimensions	70 (W) x 215 (H) x 24 (D) mm (2-3/4” x 8-15/32” x 15/16”)
weight	200 g (Approx. 7 oz) (including batteries)
