Denon AVR-4800 User Manual

49

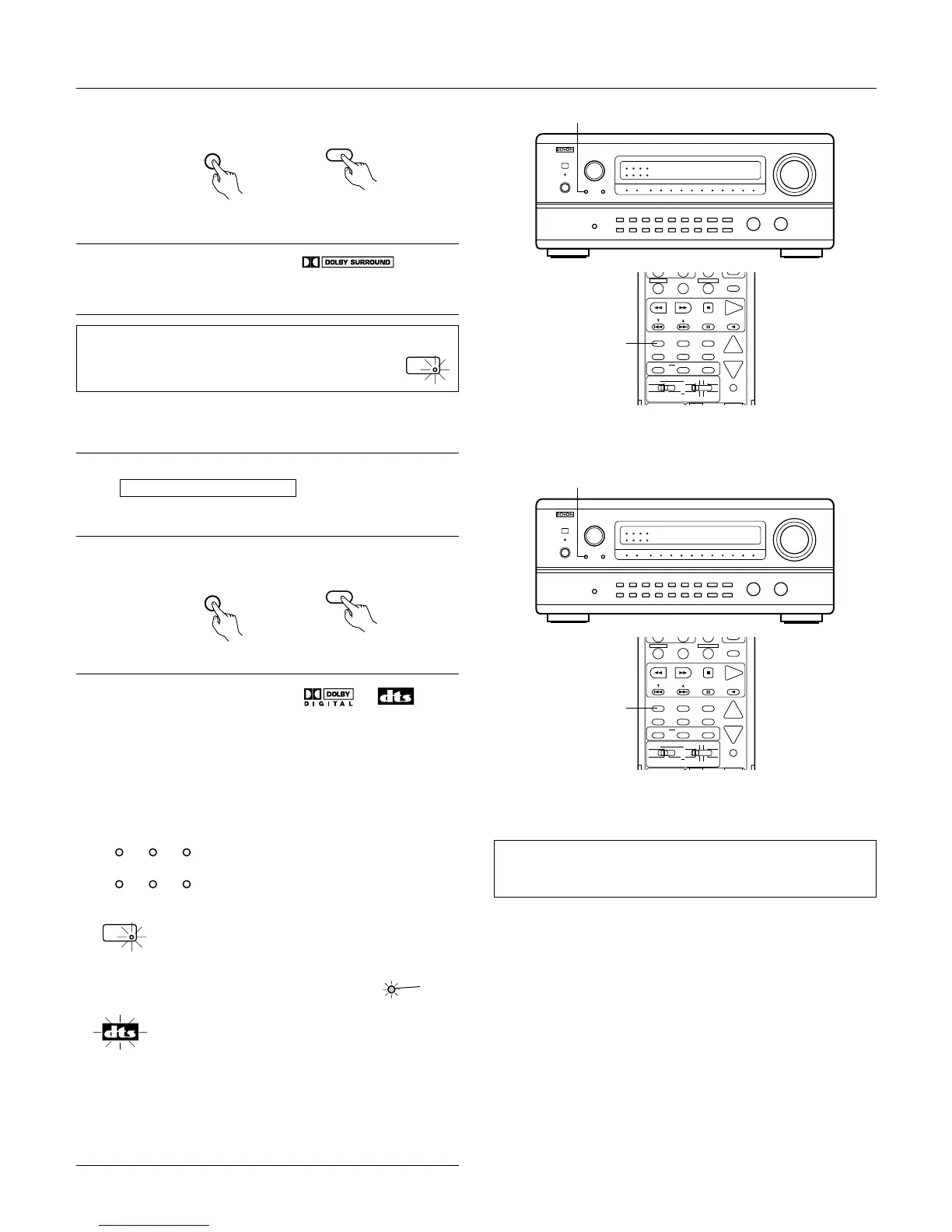

[1] Playing sources recorded in Dolby Pro Logic in the Home THX Cinema surround mode
1
Select the Home THX Cinema mode.
HOME
THX CINEMA
HOME THX CINEMA
(Main unit) (Remote control unit)
2
Play a program source with the mark.
• For operating instructions, refer to the manuals of the
respective components.
[2] To play in the THX Surround EX/Home THX Cinema Surround mode for sources recorded in Dolby Digital or DTS
1
HOME THX CINEMA
DOLBY / DTS
SURROUND
DIRECT
DSP SIMULATION 5CH / 7CH STEREO STEREO
INPUT MODE ANALOG EXT.IN
MUTING
MASTER VOL.
VOLUME DISC SKIP+
VCR-2
TAPE-2 MON
TV/VCR
AVR/AVC VIDEO DVD TV
AUDIO
VDP VCR
CD
MD
MULTI
DECK
SYSTEM SURROUND
A / B
789
+10
0
1
1
Select the program source.
Selecting a digital input source
Perform step 1 under “Dolby Digital mode and DTS
Surround” (page 50).
2
Select the Home THX Cinema mode.
HOME
THX CINEMA
HOME THX CINEMA
(Main unit) (Remote control unit)
3
Play a program source with the , mark.
For operating instructions, refer to the manuals of the
respective components.
When the source is played, the input channel indicators
indicating the signals included in the source light as shown on
the diagram below. (The number of channels that lights
depends on the input source.)
L C
CH INDICATOR
R
SL S SR
L: Front left channel
C: Center channel
R: Front right channel
SL: Surround left channel
S: Mono surround channel
SR: Surround right channel
• Also, the following indicator lights if the software
contains Low Frequency Effect sounds:
LFE
Lit
The DTS indicator lights when playing DTS sources.
Lit
2
HOME THX CINEMA
DOLBY / DTS
SURROUND
DIRECT
DSP SIMULATION 5CH / 7CH STEREO STEREO
INPUT MODE ANALOG EXT.IN
MUTING
MASTER VOL.
VOLUME DISC SKIP+
VCR-2
TAPE-2 MON
TV/VCR
AVR/AVC VIDEO DVD TV
AUDIO
VDP VCR
CD
MD
MULTI
DECK
SYSTEM SURROUND
A / B
789
+10
0
2
Surround parameters q
THX Surround EX:
Switch the surround back speakers on and off.
NOTE:
For Dolby Pro Logic sources, no sound is produced from
the surround back speakers even if the THX Surround EX
mode is selected. The Surround Back LED lights red.
The SURROUND BACK indicator lights (green)
when playing THX surround mode.
SURROUND
BACK
Lit
SURROUND
BACK
Lit

Denon AVR-4800 Specifications

Power Amplifier

stereo rated output	125 W + 125 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
surround rated output	125 W x 5 ch (8 Ω/ohms, 1 kHz with 0.7% T.H.D.)
dynamic power	170 W x 2 ch (8 Ω/ohms), 270 W x 2 ch (4 Ω/ohms), 350 W x 2 ch (2 Ω/ohms)

Analog Audio

input sensitivity / input impedance	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +0, –3 dB (DIRECT mode)
S/N ratio	105 dB (DIRECT mode)

Digital Audio

D/A output rated output	2 V (at 0 dB playback)
total harmonic distortion	0.005% (1 kHz, at 0 dB)
S/N ratio	105 dB

Phono Equalizer

input sensitivity	2.5 mV
RIAA deviation	±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio	74 dB (A weighting, with 5 mV input)

Video

standard video jacks input/output level and impedance	1 Vp-p, 75 Ω/ohms
S-video jacks input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; C signal — 0.286 Vp-p, 75 Ω/ohms
color component video terminal input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; Cb signal — 0.7 Vp-p, 75 Ω/ohms; Cr signal — 0.7Vp-p, 75 Ω/ohms

Tuner

receiving range	87.5 MHz ~ 107.9 MHz, 520 kHz ~ 1710 kHz
usable sensitivity	1.0 µV (11.2 dBf), 18 µV
signal to noise ratio (IHF-A)	MONO 80 dB, STEREO 75 dB

General

power supply	AC 120 V, 60 Hz
power consumption	10.9 A
maximum external dimensions	434 (W) x 181 (H) x 494 (D) mm (17-3/32” x 7-1/8” x 19-29/64”)

Remote Control Unit

batteries	R6P/AA Type (two batteries)
external dimensions	70 (W) x 215 (H) x 24 (D) mm (2-3/4” x 8-15/32” x 15/16”)
weight	200 g (Approx. 7 oz) (including batteries)
