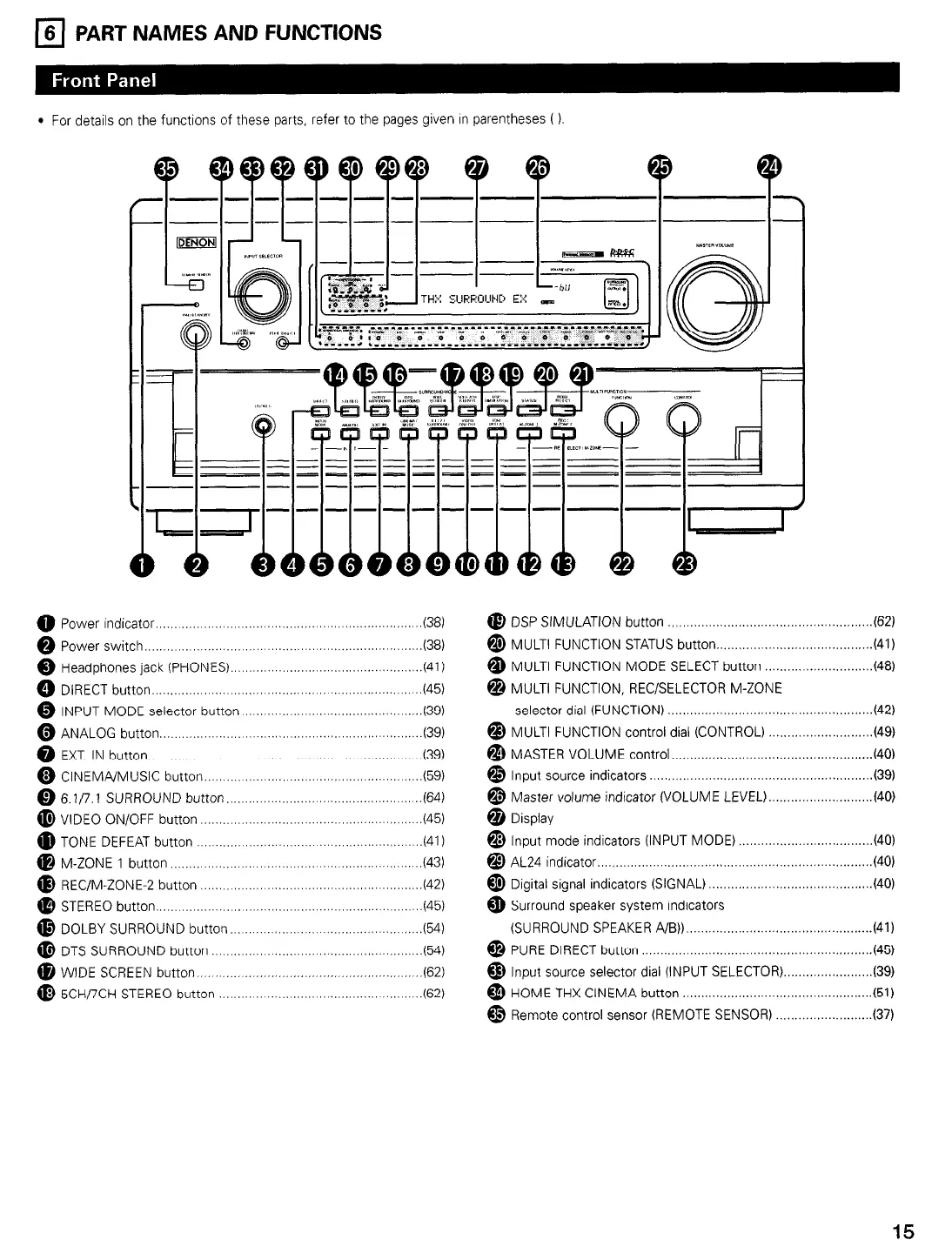

6 PART NAMES AND FUNCTIONS
l For details on the functions of these parts, refer to the pages given In parentheses ( )
0 Power indicator..
......................................................................
(38)
@ Power switch..
.........................................................................
(38)
0 Headphones jack (PHONES).
...................................................
(41)
@ DIRECT button.. ...................................................................... (45)
@ INPUT MODE selector button
.................................................
(39)
0 ANALOG button..
.....................................................................
(39)
@ EXT. IN button.. ....................................................................... (39)
@ CINEMA/MUSIC button..
........................................................
(59)
0 6.1/7.1 SURROUND button
.....................................................
(64)
@ VIDEO ON/OFF button
............................................................
(45)
@ TONE DEFEAT button
...........................................................
(41)
@ M-ZONE 1 button ................................................................... (43)
@ REC/M-ZONE-2 button ........................................................... (42)
@ STEREO button.. ...................................................................... (45)
@ DOLBY SURROUND button.. ................................................. (54)
@ DTS SURROUND button ........................................................
(54)
@ WIDE SCREEN button.. .......................................................... (62)
@ 5CH/7CH STEREO button ..................................................... (62)
@ DSP SIMULATION button ....................................................... (62)
@ MULTI FUNCTION STATUS button .......................................... (41)
@ MULTI FUNCTION MODE SELECT button ............................. (48)
@ MULTI FUNCTION, REC/SELECTOR M-ZONE
selector dial (FUNCTION) ....................................................... (42)
@ MULTI FUNCTION control dial (CONTROL) ............................ (49)
@ MASTER VOLUME control.. .................................................... (40)
@ Input source indicators ............................................................ (39)
@ Master volume indicator (VOLUME LEVEL). ........................... (40)
@ Display
@ Input mode indicators (INPUT MODE) .................................... (40)
@ AL24 indicator .......................................................................... (40)
@ Digital signal indicators (SIGNAL). ........................................... (40)
Q) Surround speaker system indicators
(SURROUND SPEAKER A/B)) .................................................. (41)
@ PURE DIRECT button .............................................................. (45)
@ Input source selector dial (INPUT SELECTOR). ....................... (39)
@ HOME THX CINEMA button ................................................... (51)
@ Remote control sensor (REMOTE SENSOR) .......................... (37)
