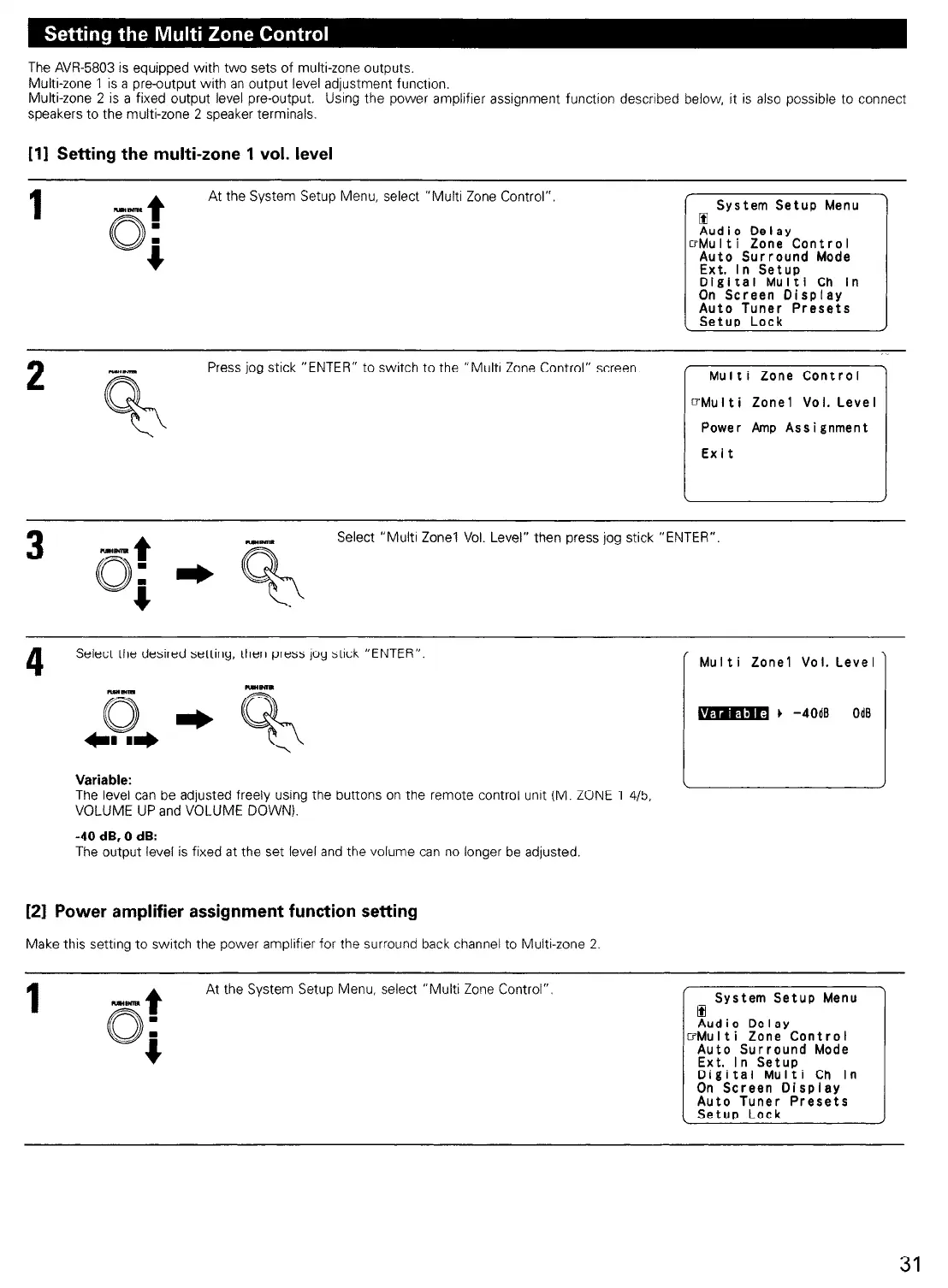

The AVR-5803 is equipped with two sets of multi-zone outputs.
Multi-zone 1 is a pre-output with an output level adjustment function.
Multi-zone 2 is a fixed output level pre-output. Using the power amplifier assignment function described below, it is also possible to connect
speakers to the multi-zone 2 speaker terminals.
Ill Setting the multi-zone 1 vol. level
At the System Setup Menu, select “Multi Zone Control”.
Digital Mul’ti Ch In
On Screen Display
Auto Tuner Presets
Setup Lock
2
WDnm
Press jog stick “ENTER” to switch to the “Multl Zone Control” screen
Multi Zone Control
Multi Zone1 Vol. Level
Power Amp Assignment
Exit
3
t
Mmam
Select “Multi Zone1 Vol. Level” then press jog stick “ENTER”.
MIDam
4
Select the desired setting, then press log strck “ENTER”
I(ROllE
nmmmm
*
I
Multi Zone1 Vol. Level
OdB
Variable:
I
The level can be adjusted freely using the buttons on the remote control unit (M. ZONE 1 4/5,
VOLUME UP and VOLUME DOWN).
-40 cl%, 0 d%:
The output level is fixed at the set level and the volume can no longer be adjusted.
[Zl Power amplifier assignment function setting
Make this setting to switch the power amplifier for the surround back channel to Multi-zone 2.
System Setup Menu
@
Audio Delay
Multi Zone Control
Auto Surround Mode
Ext. In Setup
Digital Multi Ch In
On Screen Display
Auto Tuner Presets
Setuo Lock
31
To Next Page
