El

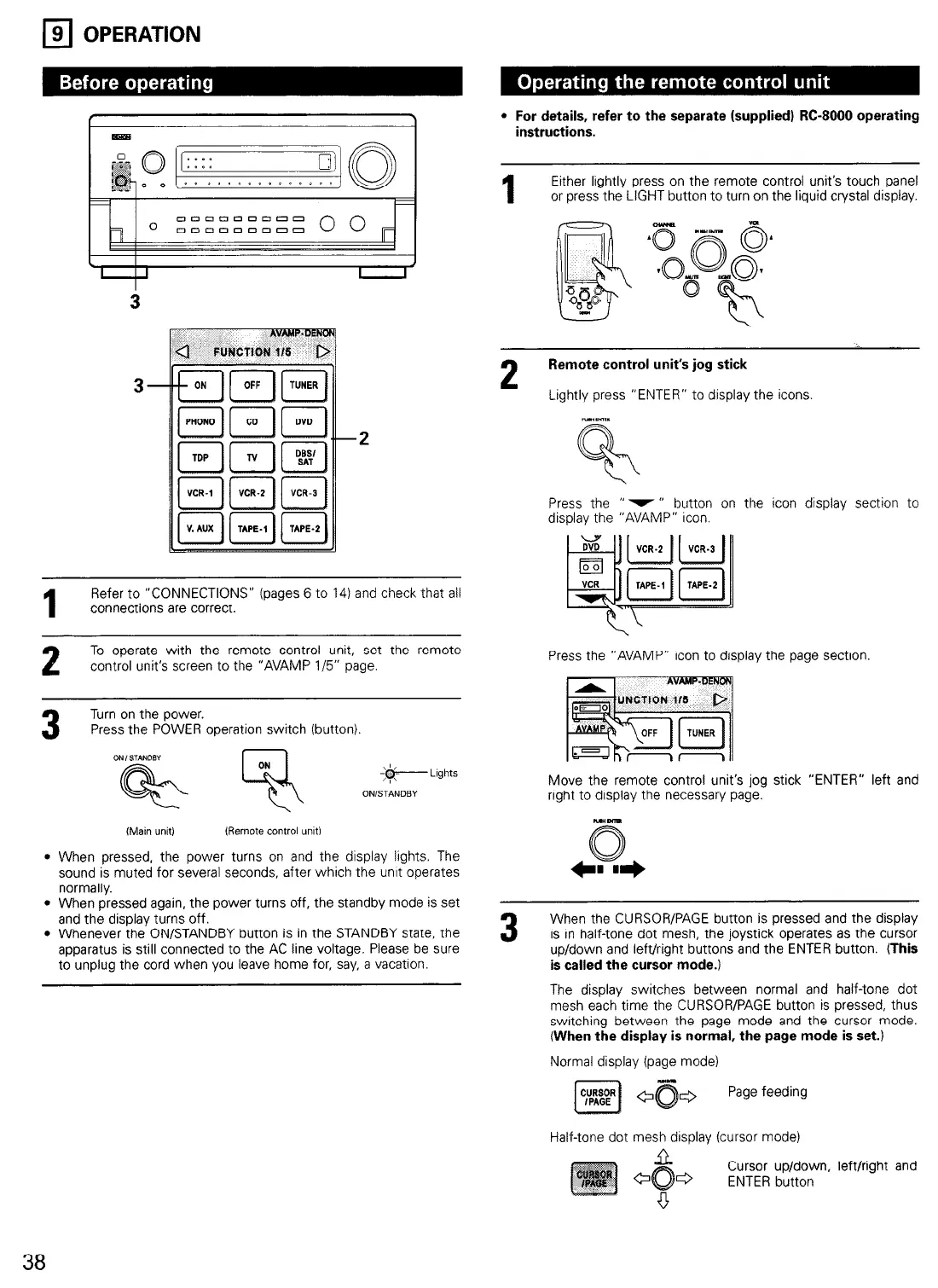

9 OPERATION
1
Refer to “CONNECTIONS” (pages 6 to 14) and check that all
connections are correct.
2
To operate with the remote control unit, set the remote
control unit’s screen to the “AVAMP l/5” page.
3
Turn on the power.
Press the POWER operation switch (button).
(Main unit1
G?emote Control mti
l When pressed, the power turns on and the display lights. The
sound is muted for several seconds, after which the unrt operates
normally.
l When pressed again, the power turns off, the standby mode is set
and the display turns off.
l Whenever the ON/STANDBY button is in the STANDBY state. the
apparatus is still connected to the AC line voltage. Please be sure
to unplug the cord when you leave home for, say, a vacatron.
l For details, refer to the separate (supplied) RC-8000 operating
instructions.
1
Either lightly press on the remote control unit’s touch panel
or press the LIGHT button to turn on the liquid crystal display.
2
Remote control unit’s jog stick
Lightly press “ENTER” to display the icons.
Mom.
%
Press the “v 0
button on the icon display section to
display the “AVAMP” icon.
Press the “AVAMP” icon to display the page section
Move the remote control unit’s jog stick “ENTER” left and
right to display the necessary page.
When the CURSOR/PAGE button is pressed and the display
is in half-tone dot mesh, the joystick operates as the cursor
up/down and left/right buttons and the ENTER button. (This
is called the cursor mode.)
The display switches between normal and half-tone dot
mesh each time the CURSOR/PAGE button is pressed, thus
switching between the page mode and the cursor mode.
(When the display is normal, the page mode is set.)
Normal display (page mode)
Page feeding
Half-tone dot mesh display (cursor mode)
Cursor up/down, left/right and
ENTER button
38
