Denon AVR-X3300W Service Manual

Check item(69). Does a video signal come from HDMI OUT to TV correctly? :
Turn Video Conversion "ON" on the setup menu.
(SETUP MENU-> Video-> Output Settings-> Video Conversion = On)
When the "SETUP" button on a remote control is pressed, is "MENU" displayed on TV which is connected
to the HDMI output terminal on the AVR?
HDMI OUT
NO
YES
Go to check item (70)
Go to check item (73)

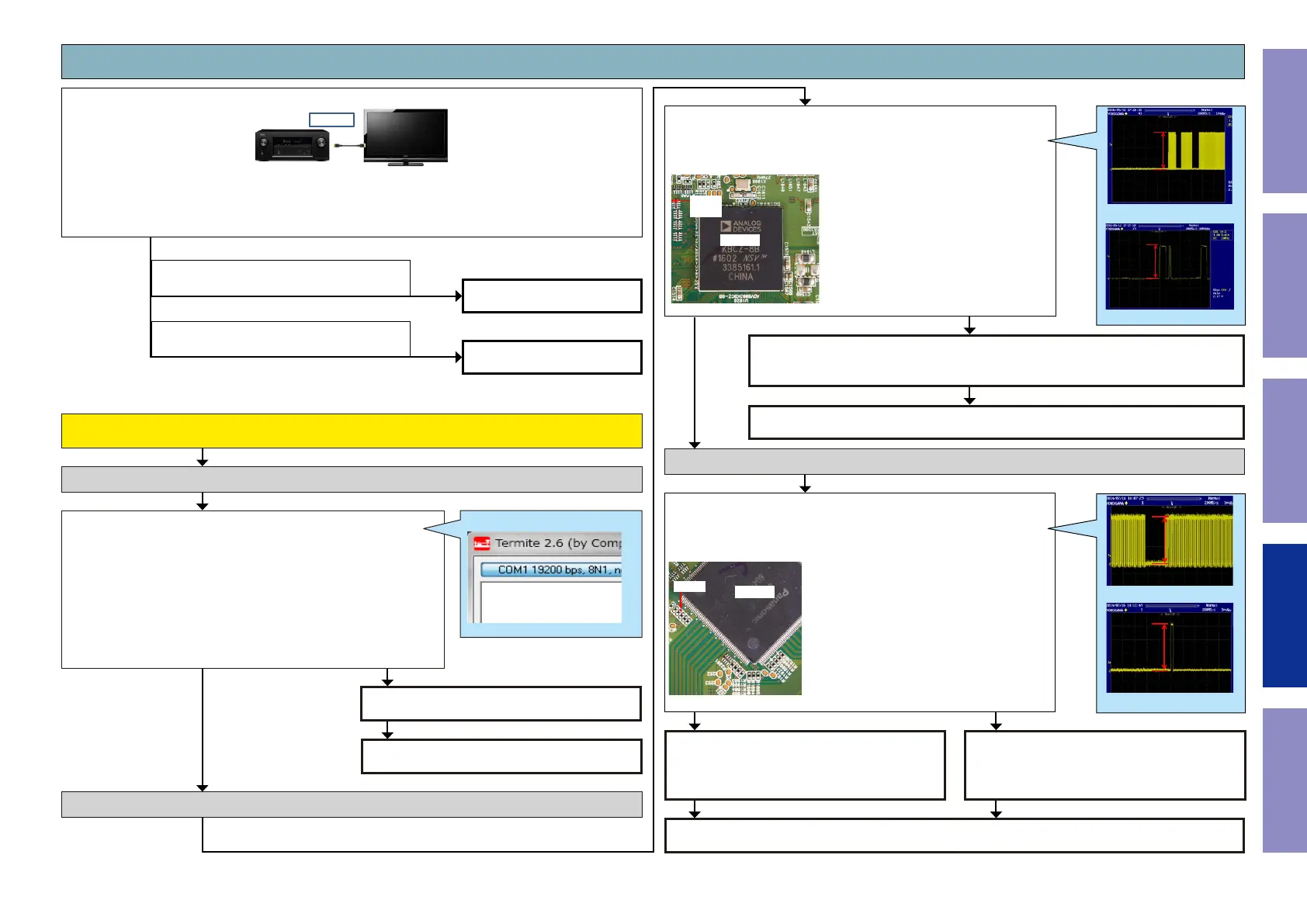

3-7 GUI and PLD failure detection procedure
When the results of check item (69) are "NO"
(When the menu display is not OK)
Check item(70). Check the format of the resistor video signal :
Send the following command from Termite.exe.
Send the command "i 0020 0070 0001".
Is the return value "22/21/20/1F/15/14/13/11/10/06/05/04/02" ?
Check the Video signal line. (GUI -> HDMI Tx)
Example
i 0020 0070 0001
22
NO YES
Check item(71). Check the PLD video signal line from the GUI :
Check the video signal waveform at the following test point.
Is the waveform like the sample?
U1026
Y11/R7
R2189
Check item(72). Check the HDMI Tx video signal line from the PLD :
Check the video signal waveform at the following test point.
Is the waveform like the sample?
U1001
DE
NO
NO
HDMI Tx (U1001) is faulty.
Replace with a new device.
Check the peripheral pattern between the GUI (U1026) and PLD (U1011).
If there is no problem, the GUI (U1026) is faulty.
Replace with a new device.
Check the peripheral pattern between the PLD
(U1011) and HDMI Tx (U1001).
If there is no problem, the PLD (U1011) is faulty.
Replace with a new device.
Check the Video signal line. (GUI -> PLD)
Check the Video signal line. (PLD -> HDMI Tx)
3.3V
Example of waveform in check ①
3.3V
Example of waveform in check ②
3.3V
Example of waveform in check ①
3.3V
Example of waveform in check ②
HDMI Tx (U1001) is faulty.
Replace with a new device.
YES
Recheck from check item (6).
If it does not work, replace the PCB.
Recheck from check item (6).
If it does not work, replace the PCB.
Recheck from check item (6).
If it does not work, replace the PCB.
