Denon AVR-X3300W - 1. COVER; 2. FRONT PANEL ASSY

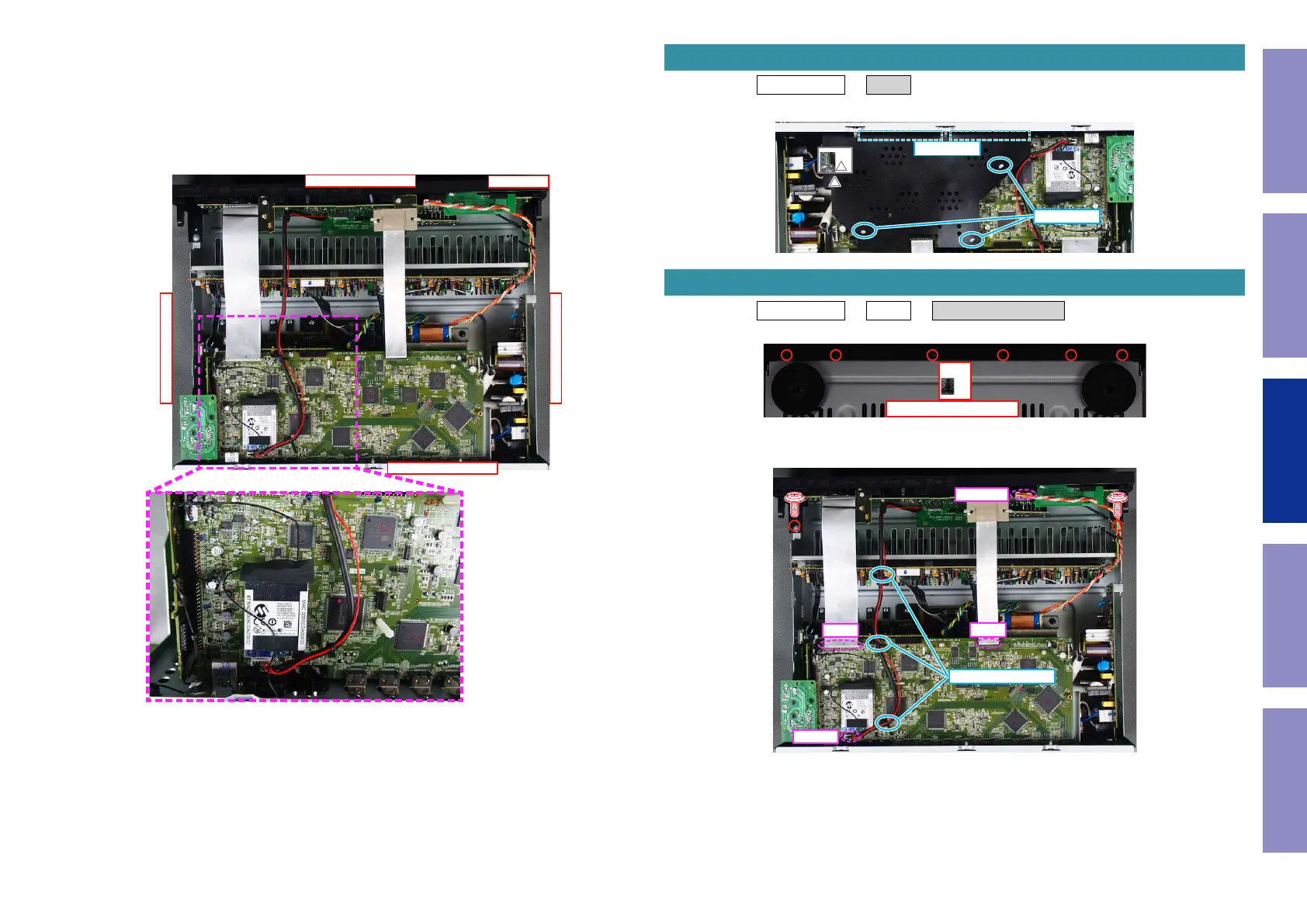

Explanatory Photos for DISASSEMBLY
• For the shooting direction of each photos used in this manual, see the photo below.
• A, B, C and D in the photo below indicate the shooting directions of photos.
• The photographs with no shooting direction indicated were taken from the top of the unit.
• Photos of AVR-X3300W E3 are used in this manual.
The viewpoint of each photograph
(Shooting direction : X) [View from the top]
↑Shooting direction: A↑
↓Shooting direction: B↓
↓Shooting direction: D↓ ↑Shooting direction: C↑
↑ Front side ↑
Proceeding : TOP COVER → COVER
(1) Remove the screws. Remove the HOLDER. Remove the TAPE.
Proceeding : TOP COVER → COVER → FRONT PANEL ASSY
(1) Remove the screws.
(2) Remove the screws. Remove the CORD HOLDER and connectors. Remove the FFC.
1. COVER
x2
HOLDER
TAPE
2. FRONT PANEL ASSY
View from the bottom
x6
FFC
FFC
N1008
CP4400
CORD HOLDER
64
