Denon AVR-X3300W Service Manual

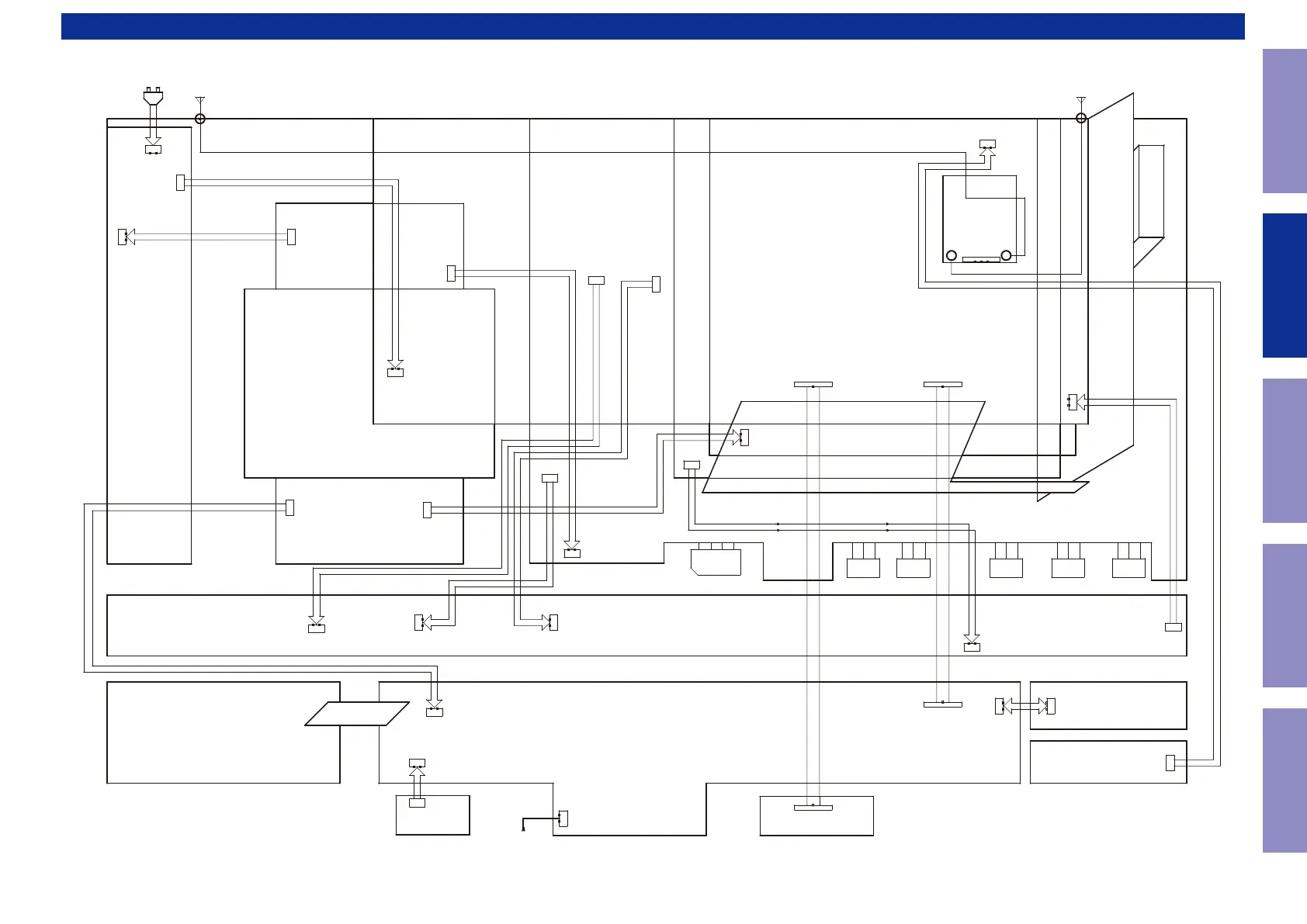

WIRING DIAGRAM
7805
7908
7905
7805
23P
VIDEO VIDEO
AUDIO
CODEC
SMPS PCB
7P TAP (SPK)
3P WIRE (SBL/R)
40P
6P WIRE (HDMI POWER)
7808
AC CORD
2P TAP (SMPS)
WIFI_ANT
H/P PCB
CHASSIS
10P WIRE (+/- B)
FRONT PCB
D10SB60
SPK PCB
FRONT HDMI PCB
FRONT CNT PCB
23P CARD CABLE
AUDIO
VIDEO PCB
CY920
MODULE
WIFI_BT_ANT
7P TAP (FL)
JUMPER
HDMI PCB
MIC
8P TAP (A/V)
5P WIRE (AUDIO OUT)
USB PCB
INPUT PCB
SIDE_CNT
6P SHIELD WIRE (USB)
7P WIRE (P/T)
TUNER PACK
V.AUX (SR5010 ONLY)
SELECT PCB
7CH AMP PCB
13P WIRE (AUDIO IN)
MAIN TRANS
AVR_X3300 WIRE DIAGRAM
VOLUME PCB
40P CARD CABLE
51
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X3300W Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Pre-out channels	7.2
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Product color	Black
Audio decoders	DTS-HD, DTS-HD Master Audio, Dolby TrueHD
Multi-Zone quantity	2
Apple docking compatibility	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
HDMI in	8
Audio (L/R) in	5
Remote control in	1
Composite video in	3
Composite video out	0
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Audio formats supported	AAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA

Weight and Dimensions

Depth	389 mm
Width	434 mm
Height	167 mm
Weight	10800 g
