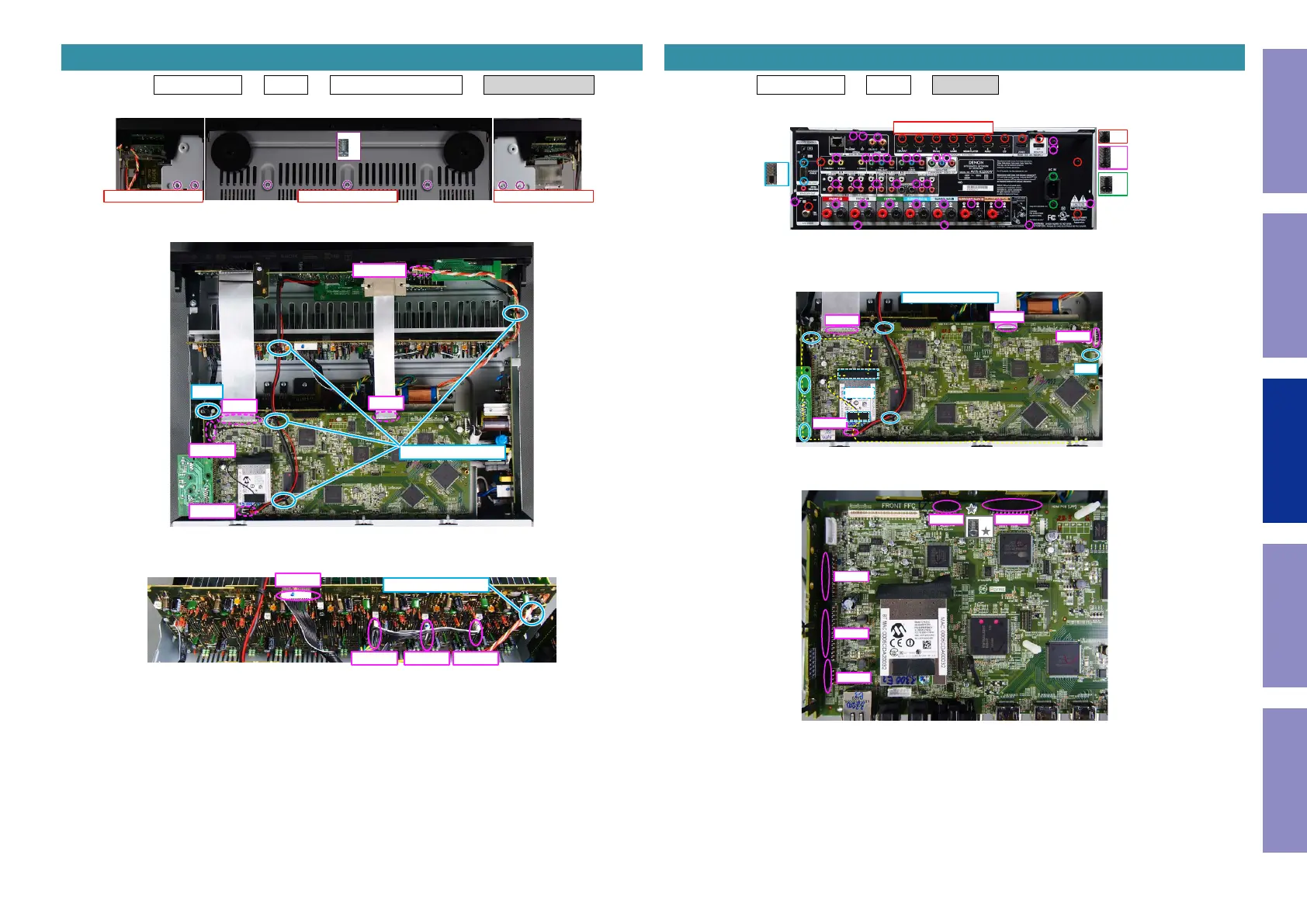

Proceeding : TOP COVER → COVER → FRONT PANEL ASSY → RADIATOR ASSY
(1) Remove the screws.
(2) Remove the screws. Remove the CORD HOLDER and connectors. Remove the FFC.
(3) Remove the CORD HOLDERs and connectors.
3. RADIATOR ASSY
View from the bottom
Shooting direction: C Shooting direction: D
x7
FFC
FFC
N1008
CP4400
N1019
CORD HOLDER
CUT
CP405CP403CP402
CP401
CORD HOLDER
Proceeding : TOP COVER → COVER → HDMI PCB
(1) Remove the screws.
(2) Cut the wire clamps, then remove the CORD HOLDERs and connectors.
Remove the TAPE. Remove the FFC.
(3) Cut the wire clamp, then remove the connector. Remove the screws.
4. HDMI PCB
Shooting direction: A
x13
x31
x2
x2
FFC
FFC
N1008
N1033
CORD HOLDER x 5
CUT
TAPE
x1
N1039N1020
N1018
N1016
N1022
