Denon AVR-X3300W Service Manual

JIG FOR SERVICING

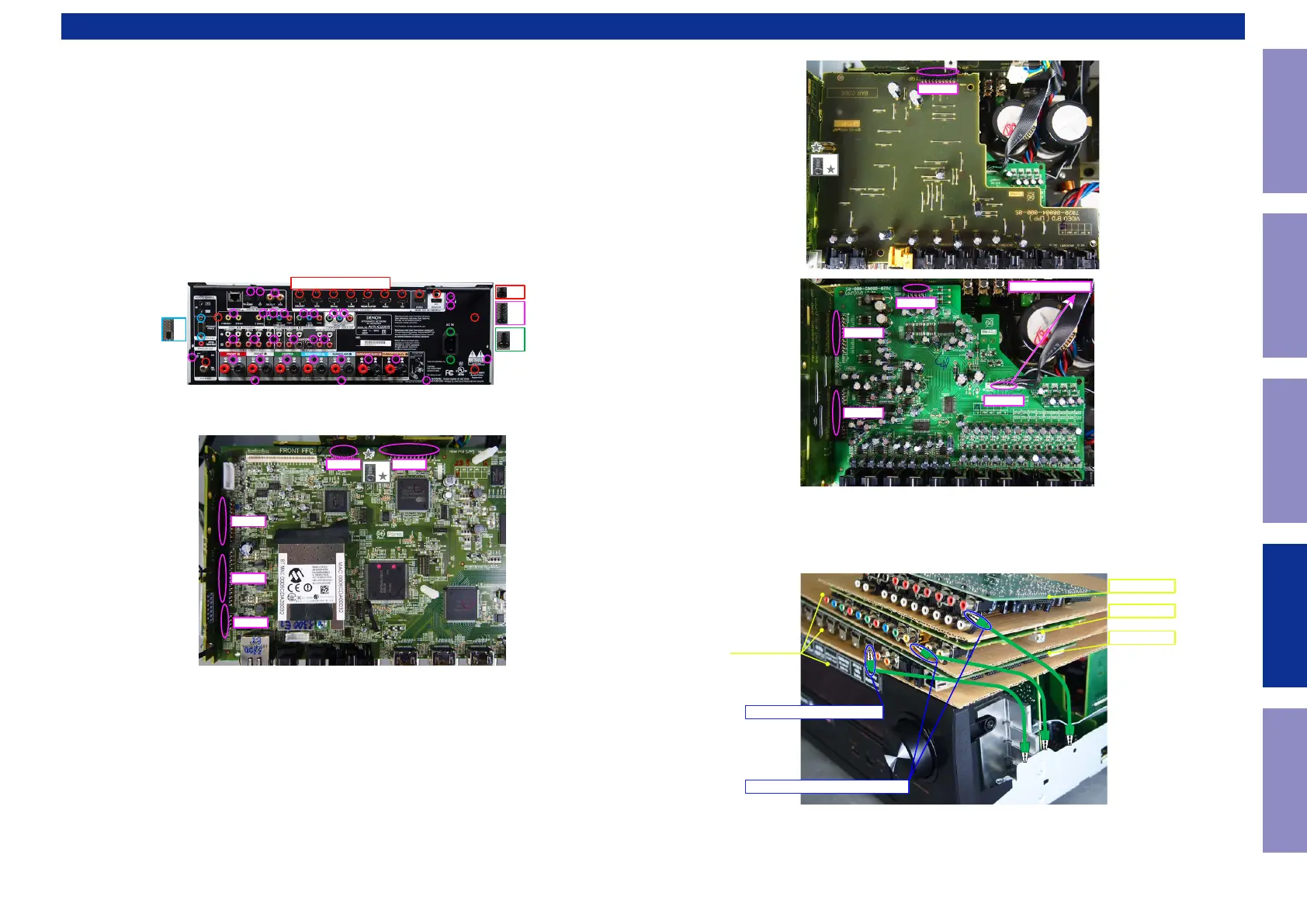

Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.
Connection of Jig for HDMI PCB
---Items to Be Prepared---
8U-110084S : EXTENSION UNIT KIT : 1Set
8U-110136S : EXTENSION UNIT KIT : 1Set
Insulation sheet (Not supplied) : 3 sheet
Ground lead (Not supplied) : 3 pc
-Proceeding-
(1) Remove the screws.
(2) Remove the connector PCB.
Shooting direction: A
x13
x31
x2
x2
x1
N1039N1020
N1018
N1016
N1022
(3) Remove the HDMI PCB from the chassis and turn it over.
Place an insulation sheet larger than the PCB underneath the HDMI PCB.
b
Connect the earth of the PCB to the chassis using an earth wire, etc.
x1
CN5000
CN4203
CN4202
CN4201
CN4200
From AMP PCB
Insulation sheet
PCB HDMI
PCB INPUT
PCB VIDEO
CHASSIS-HDMI CONNECTOR
CHASSIS-COMPOSIT CONNECTOR
153
Caution in
servicing
Electrical Mechanical Repair Information Updating
