Denon AVR-X3300W Service Manual

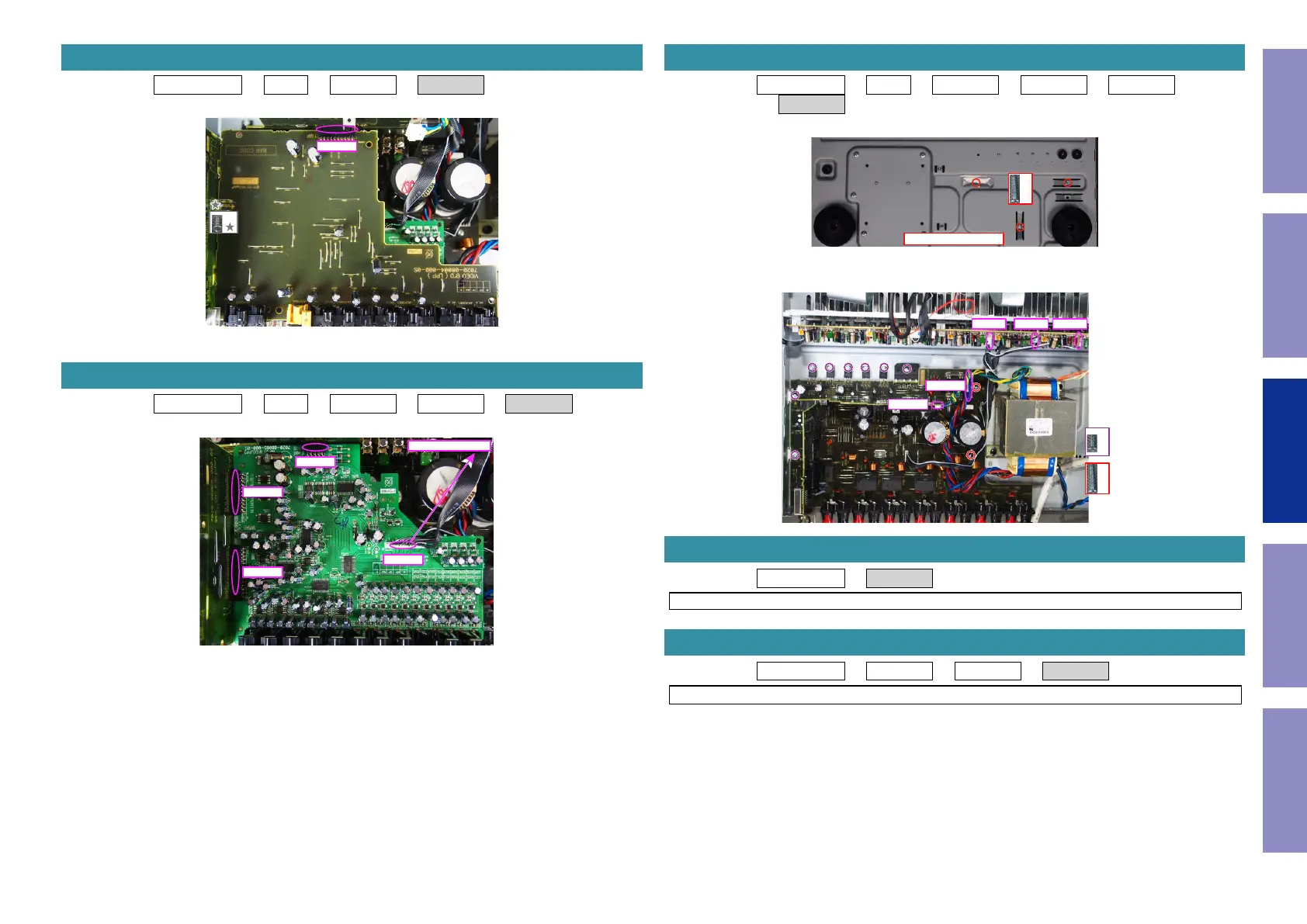

Proceeding : TOP COVER → COVER → HDMI PCB → VIDEO PCB
(1) Remove the connector.
Proceeding : TOP COVER → COVER → HDMI PCB → VIDEO PCB → INPUT PCB
(1) Remove the connector.
5. VIDEO PCB
x1
CN5000
6. INPUT PCB
CN4203
CN4202
CN4201
CN4200
From AMP PCB
Proceeding : TOP COVER → COVER → HDMI PCB → VIDEO PCB → INPUT PCB
→ MAIN PCB
(1) Remove the screws.
(2) Remove the screws. Remove the connector.
Proceeding : TOP COVER → SMPS PCB
See "EXPLODED VIEW" for instructions on removing the SMPS PCB.
Proceeding : TOP COVER → COVER → HDMI PCB → TRANS
See "EXPLODED VIEW" for instructions on removing the transformer (TRANS).
7. MAIN PCB
View from the bottom
x3
x8
x2
CP402 CP403 CP405
CP4001
CP5003
8. SMPS PCB
9. TRANS
66
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X3300W Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Pre-out channels	7.2
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Product color	Black
Audio decoders	DTS-HD, DTS-HD Master Audio, Dolby TrueHD
Multi-Zone quantity	2
Apple docking compatibility	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
HDMI in	8
Audio (L/R) in	5
Remote control in	1
Composite video in	3
Composite video out	0
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Audio formats supported	AAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA

Weight and Dimensions

Depth	389 mm
Width	434 mm
Height	167 mm
Weight	10800 g
