Denon AVR-X3300W Service Manual

SUBWOOFER ch
+20dB
+10dB
0dB
-20dB
-30dB
-40dB
-10dB
0dBFS=1.06Vrms
0dBFS = 2.0Vrms
AVR-X3300W

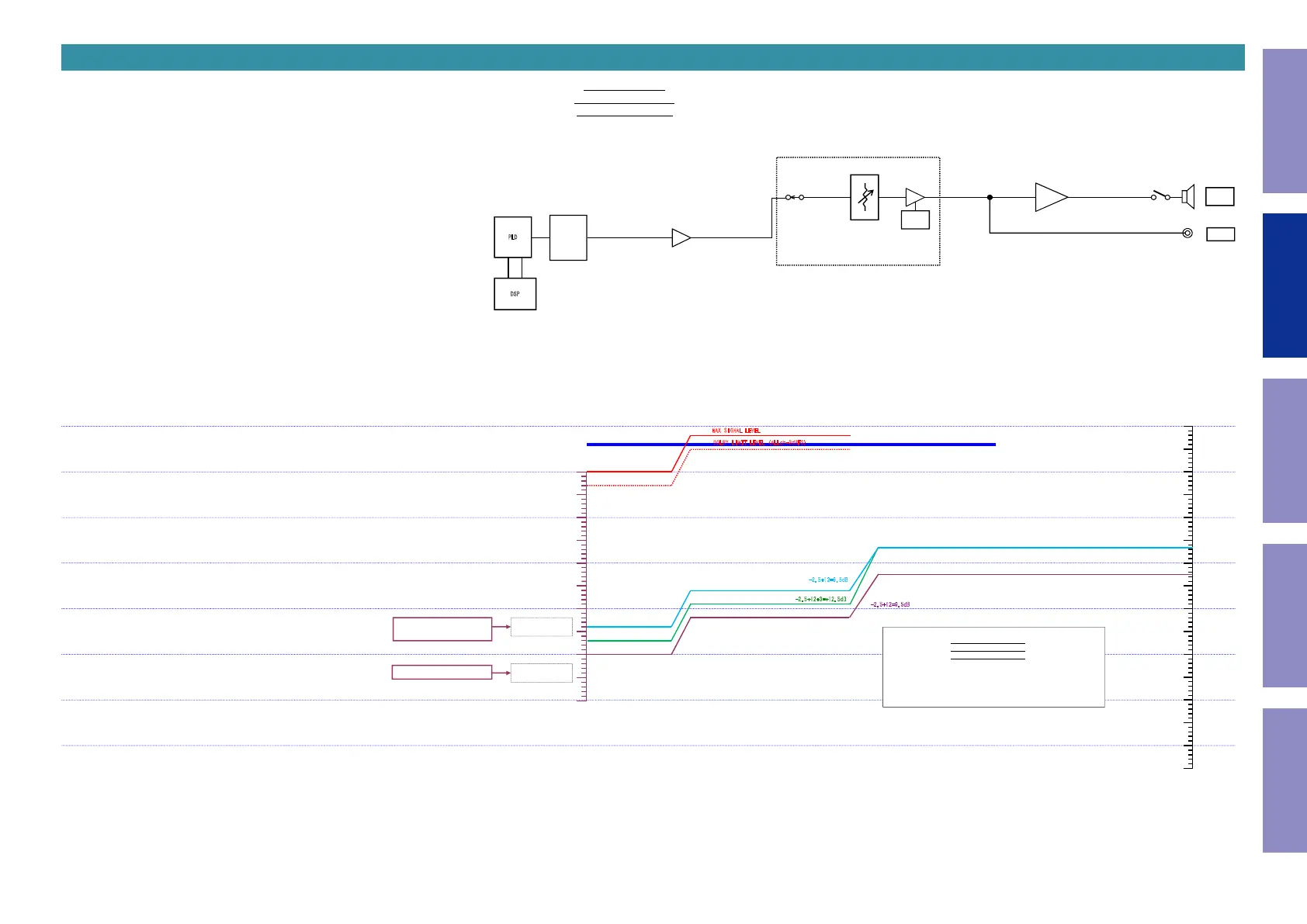

LEVEL DIAGRAM
SUBWOOFER ch
-2.5+12=9.5dB
+30dB
-
2.5+12+3=+12.5dB
MAX SIGNAL LEVEL
DOLBY LIMIT LEVEL (ALLch-3dBFS)
0dBFS
-10dBFS
-20dBFS
-30dBFS
-40dBFS
PCM5100
NJU72343 MAX.OUTPUT4.2Vrms
＋
SPEAKER
DSP
GAIN
PCM5100
D/A
PLD
NJU72343
PREOUT
PREOUT
150mVrms
-40dBFS(DIG.IN)
DD Config1
INPUT:-30dBFS DD LFE
-34dBFS(PCM.IN)
-37dBFS(A/D IN)
INPUT : -20dBFS(DIG.IN) PCM
200mV(A/D IN)
+8dB
GAIN setting of MASTER VOL 00dB
･DOLBY DIGITAL IN -2.5dB+12dB =+ 9.5dB
･PCM DIGITAL IN -2.5dB+12dB =+ 9.5dB
･ANALOG IN -2.5dB+12dB+3.0dB=+12.5dB
①②③
①:Basic OFFSET of VOL=0dB
②:OFFSET of SW-ch
③:OFFSET of the AD input
-2.5+12=9.5dB
PREOUT
300mVrms
43
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X3300W Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Pre-out channels	7.2
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Product color	Black
Audio decoders	DTS-HD, DTS-HD Master Audio, Dolby TrueHD
Multi-Zone quantity	2
Apple docking compatibility	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
HDMI in	8
Audio (L/R) in	5
Remote control in	1
Composite video in	3
Composite video out	0
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Audio formats supported	AAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA

Weight and Dimensions

Depth	389 mm
Width	434 mm
Height	167 mm
Weight	10800 g
