Denon AVR-X3300W Service Manual

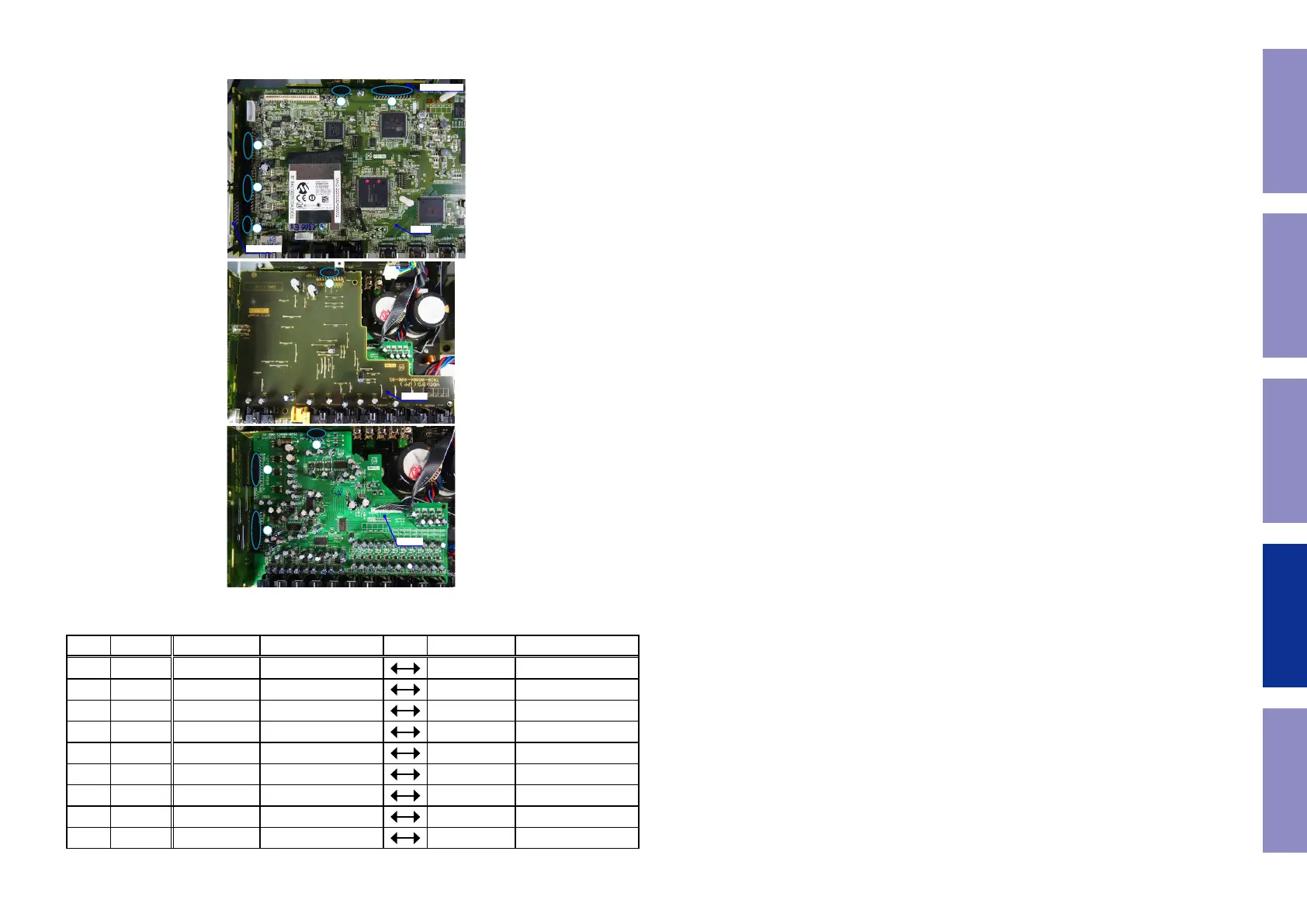

(4) Connect the expansion cables.
Board-to-Board Connections
No. Pin Ref. No. PCB Ref. No. PCB
q
7pin CP1022 SIDE CNT
N1022 HDMI
w
27pin CP1016 SIDE CNT
N1016 HDMI
e
21pin CP1018 SIDE CNT
N1018 HDMI
r
9pin CP1020 FRONT CNT
N1020 HDMI
t
23pin CP1039 FRONT CNT
N1039 HDMI
y
19pin CP5000 FRONT CNT
CN5000 VIDEO
u
27pin CP4203 SIDE CNT
CN4201 INPUT
i
21pin CP4202 SIDE CNT
CN4202 INPUT
o
9pin CN4203 FRONT CNT
CN4203 INPUT
FRONT CNT
HDMI
VIDEO
SIDE CNT
INPUT
1
2
3
4 5
6
7
8
9
154
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X3300W Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Pre-out channels	7.2
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Product color	Black
Audio decoders	DTS-HD, DTS-HD Master Audio, Dolby TrueHD
Multi-Zone quantity	2
Apple docking compatibility	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
HDMI in	8
Audio (L/R) in	5
Remote control in	1
Composite video in	3
Composite video out	0
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Audio formats supported	AAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA

Weight and Dimensions

Depth	389 mm
Width	434 mm
Height	167 mm
Weight	10800 g
