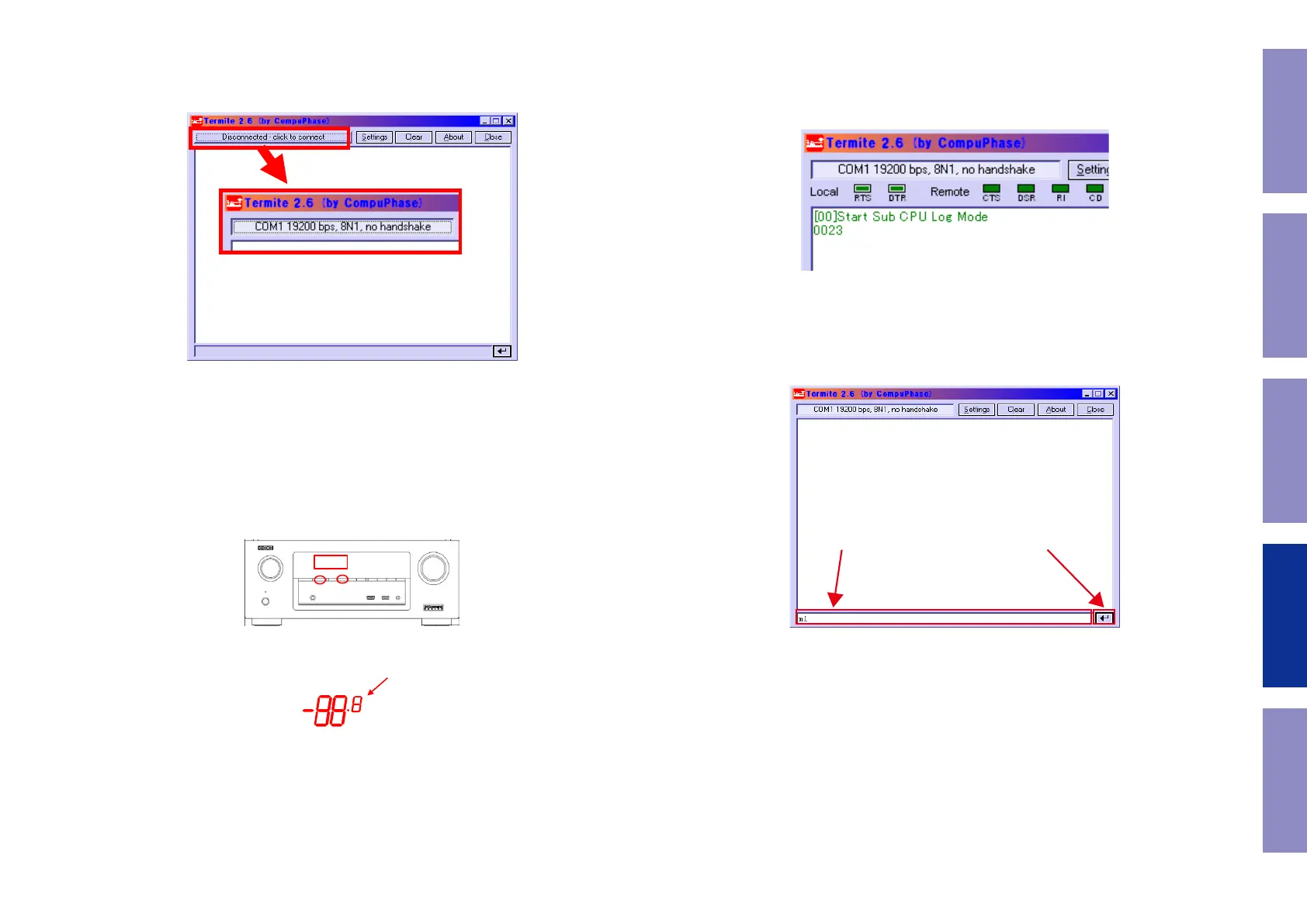

Click the [click to connect] button to start communication.
After a connection is established successfully, the display of the button name will change as
shown in Figure 4.
TV settings : Switch to the HDMI input in the AVR connection.
Player settings : Turn the unit power on and congure it to play disks.
AVR settings : Turn on the power while holding the [PRESET UP] button and [ZONE2
SOURCE].
(Continue to press and hold the buttons until all segments of the FLD volume illuminate.)
※ When the power is turned on after initialization, "Setup Assistant" will be displayed.
After exiting "Setup Assistant,” execute the above.
Display changes.
Figure 4 Change of the Display of the Communication Start Button Name
Press
Figure 6-1. AVR settings (AVR-X3300W)
All the
indicator Lights
for Volume 7 segment
Figure 6 FLD Display When Set
When the settings are correct, the following message will be displayed in the window of
Termite.
[00]Start Sub CPU Log Mode
****
(**** is a version of Sub CPU.)
The setup is now complete.
Method for sending commands
Enter the command in the transmission command entry section, click the [Send] button and
send the command.
Figure 7 Display of Termite When AVR is Set
1. Input a command in the
transmission command input.
2.Click on the transmission button.
Figure 8 Method for Sending Termite Commands
84
Caution in
servicing
Electrical Mechanical Repair Information Updating

Table of Contents

Other manuals for Denon AVR-X3300W

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Denon AVR-X3300W and is the answer not in the manual?

Denon AVR-X3300W Specifications

General IconGeneral
Receiver typeSurround
Frequency range10 - 100000 Hz
Pre-out channels7.2
Pre-out connectivityYes
Audio output channels7.2 channels
Signal-to-Noise Ratio (SNR)100 dB
Total Harmonic Distortion (THD)0.05 %
Power output per channel (1KHz@6 Ohm)180 W
Power output per channel (20-20KHz@8 Ohm)105 W
AC input voltage230 V
AC input frequency50 Hz
Power consumption (standby)0.1 W
Power consumption (typical)600 W
Product colorBlack
Audio decodersDTS-HD, DTS-HD Master Audio, Dolby TrueHD
Multi-Zone quantity2
Apple docking compatibility-
AM band range522 - 1611 kHz
FM band range87.5 - 108 MHz
Supported radio bandsAM, FM
HDMI in8
Audio (L/R) in5
Remote control in1
Composite video in3
Composite video out0
Connectivity technologyWired
Speakers connectivity typeClamp terminals
Audio formats supportedAAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA
Weight and Dimensions IconWeight and Dimensions
Depth389 mm
Width434 mm
Height167 mm
Weight10800 g
