Denon AVR-X3300W Service Manual

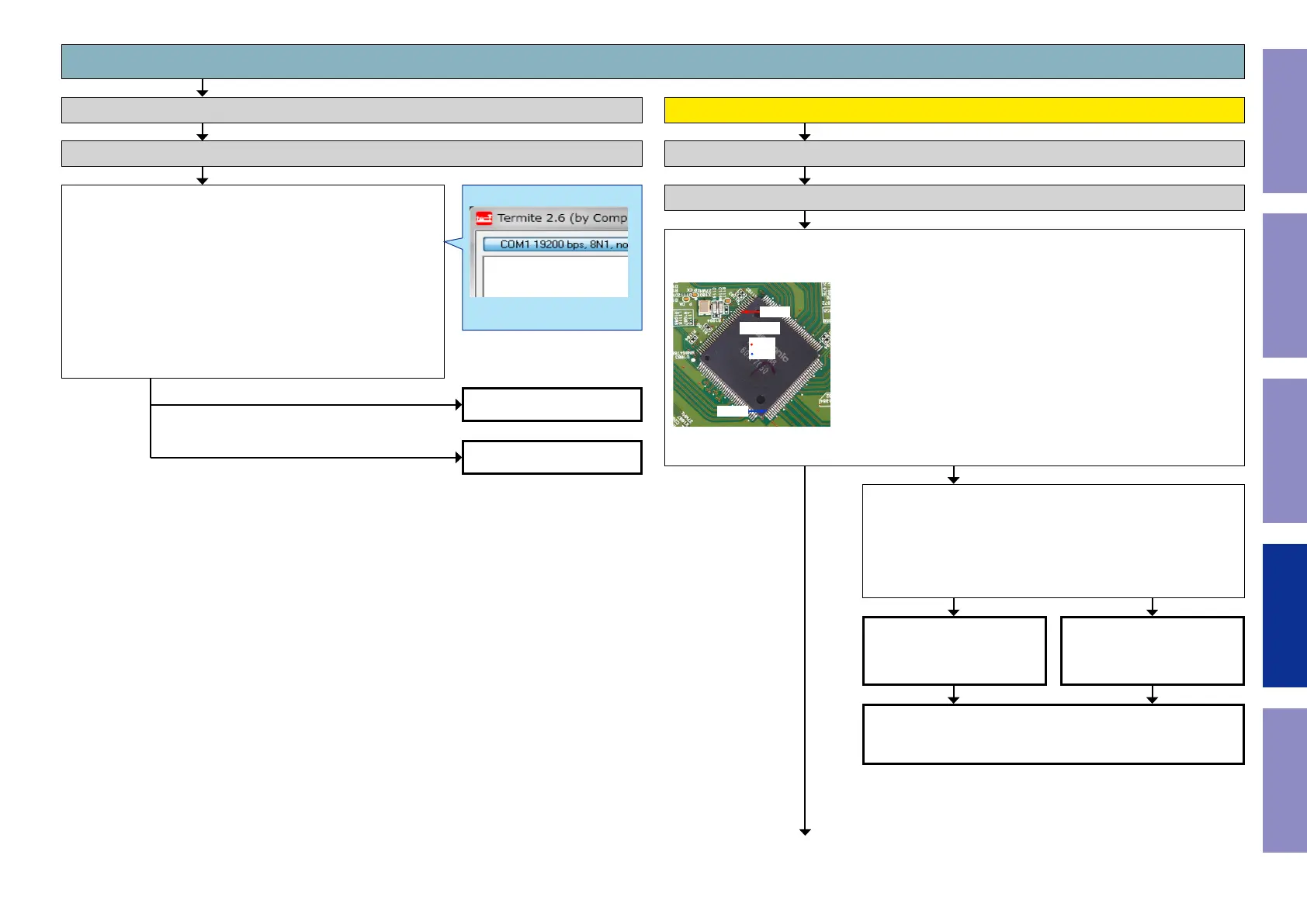

Check communication between CPU and the HDMI Switcher1 device.
When the results of check item (7) are "the communication results are not OK"
Checking device. (HDMI Switcher1)
Check the power supply voltage. (HDMI Switcher1)
Check item (7). Check communication between CPU and the HDMI
Switcher1 device. :
Check by reading device ID and revision of each device.
Check communication between HDMI Switcher1 (U1003) and CPU
(U1018) .
Send the following command from Termite.exe.
Send the command "i 0028 0000 0001".
Is the return value "01" ?
If the communication results are not OK
If the communication results are OK
Example :
If it is normal, "01" is returned.
i 0028 0000 0001
01
Go to check item (13)
Go to check item (8)
Checking device. (HDMI Switcher1)
3-2 Switcher1 failure detection procedure
YES
Go to next page.
Check item(8). Check the power supply voltage. :
Does the power supply voltage of the HDMI Switcher1 (U1003) indicate the correct voltage (1.1V, 3.3V)?
The test points are as follows.
U1003
112 pin
38 pin
1.1V
3.3V
Check item(9). Check the power supply voltage. :
Check the power components (U1066/U1065) and the pattern on
the substrate.
If there is no problem, remove the HDMI Switcher1 (U1003) from
the substrate and measure the voltage at the test point of check
item (8).
Is the voltage correct (1.1 V or 3.3 V)?
HDMI Switcher1(U1003) device
is failure.
Replace with a new device.
The power supply circuit is
faulty.
Replace the PCB.
Recheck from check item (3).
If it does not work, replace the PCB.
NO
NOYES
86
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X3300W Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Pre-out channels	7.2
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Product color	Black
Audio decoders	DTS-HD, DTS-HD Master Audio, Dolby TrueHD
Multi-Zone quantity	2
Apple docking compatibility	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
HDMI in	8
Audio (L/R) in	5
Remote control in	1
Composite video in	3
Composite video out	0
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Audio formats supported	AAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA

Weight and Dimensions

Depth	389 mm
Width	434 mm
Height	167 mm
Weight	10800 g
