Denon AVR-X3300W Service Manual

HDMI Switcher1 (U1003) is faulty.
Replace with a new device.
HDMI Switcher1 (U1003) is faulty.
Replace with a new device.
Recheck from check item (3).
If it does not work, replace the PCB.
Recheck from check item (3).
If it does not work, replace the PCB.
Check for a short circuit in the TMDS line.
If there is no problem, the HDMI Switcher1 (U1003) is faulty.
Replace with a new device.
Check for a short circuit in the HPD line.
If there is no problem, the HDMI Switcher1 (U1003) is faulty.
Replace with a new device.
When the results of check item (19) are "31 or 21 or 11 or 01"
(Detection of HPD is OK / Detection of RXSENSE is not OK )
When the results of check item (19) are "32 or 22 or 12 or 02"
(Detection of HPD is not OK / Detection of RXSENSE is OK )

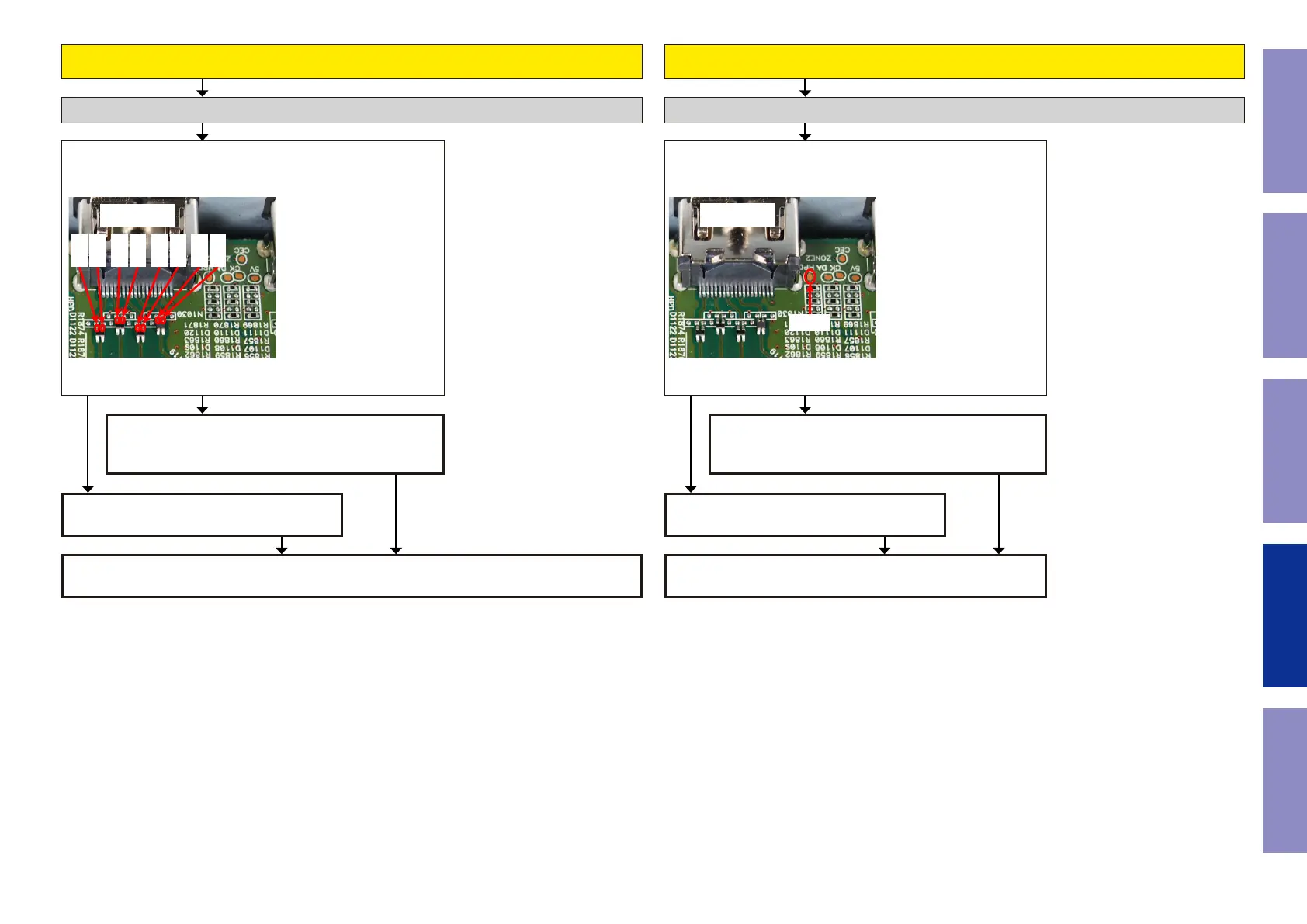

Check item(23). Checking the RXSENSE. :
Does the test point near HDMI output connector (N1030) indicate
(3.3V)?
ZONE2
D2+
D2-
D1+
D1-
D0+
D0-
CK+
CK-
Check item(24). Checking the HPD. :
Does the test point near HDMI output connector (N1030) indicate
"Hi(3-5V)"?
ZONE2
HPD
Check the TMDS. (HDMI ZONE2 OUT) Check the HPD. (HDMI ZONE2 OUT)
NO NOYES YES
92
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X3300W Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Pre-out channels	7.2
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Product color	Black
Audio decoders	DTS-HD, DTS-HD Master Audio, Dolby TrueHD
Multi-Zone quantity	2
Apple docking compatibility	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
HDMI in	8
Audio (L/R) in	5
Remote control in	1
Composite video in	3
Composite video out	0
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Audio formats supported	AAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA

Weight and Dimensions

Depth	389 mm
Width	434 mm
Height	167 mm
Weight	10800 g
