Denon AVR-X3300W Service Manual

YES

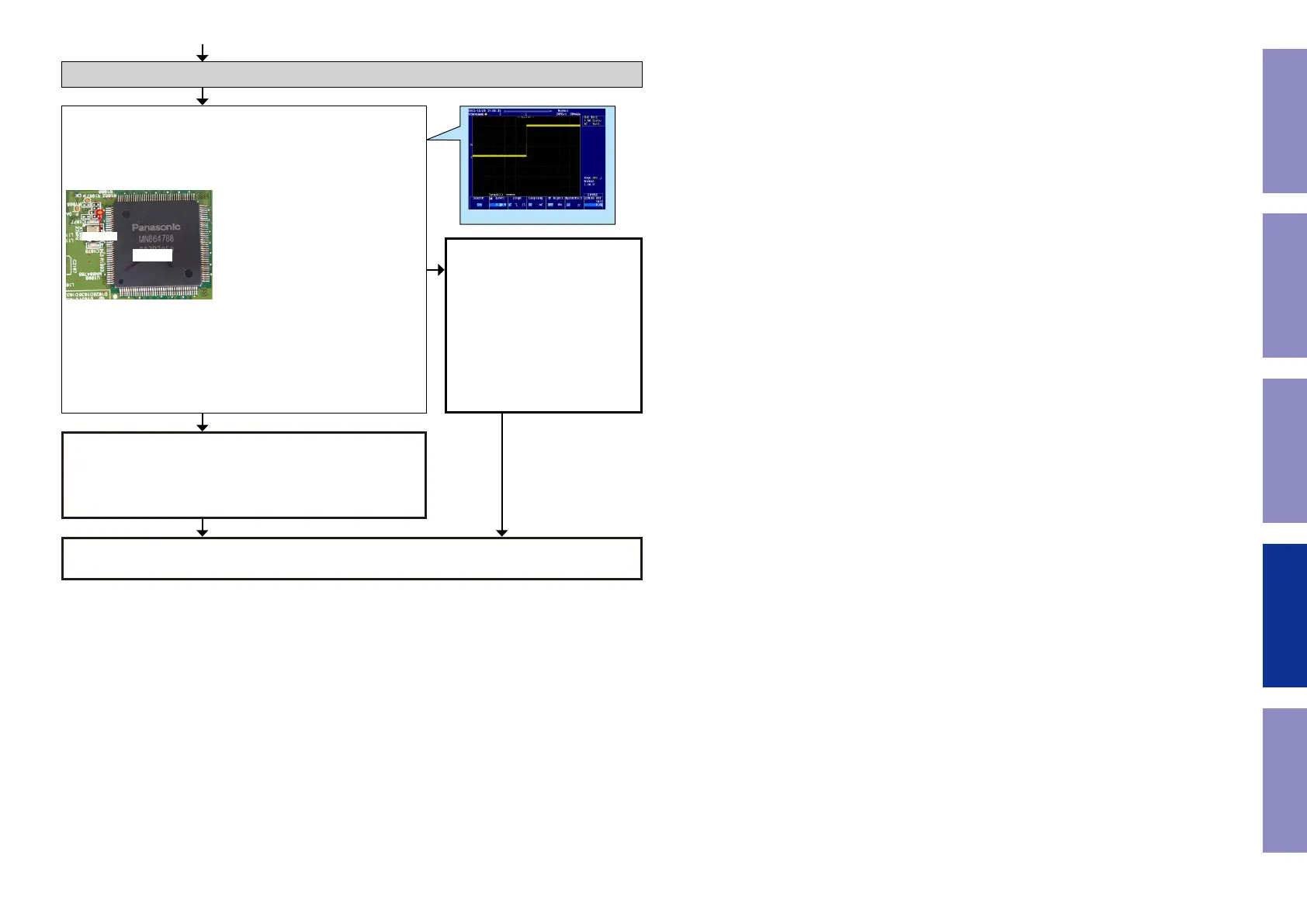

Checking the reset waveform. (HDMI Switcher2)
Check item(29). Checking the reset waveform :
Check the waveform.
Is the "RESET" waveform of the TP near the HDMI Switcher2
(U1000) correct (like the one shown in the diagram) when the
power is turned on?
U1000
RESET
Check the reset circuit between
CPU (U1018) and HDMI Switcher2
(U1000).
If there is no problem, the HDMI
Switcher2 (U1000) is faulty.
Replace with a new device.
Recheck from check item (4).
If it does not work, replace the
PCB.
NO
Examples of conrmation waveform
Recheck from check item (4).
If it does not work, replace the PCB.
Replace (R1061/R1062) with new resistors and check the I2C
communication again.
Check item (26) If the result is not OK, the HDMI Switcher2
(U1000) is faulty.
Replace with a new device.
95
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X3300W Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Pre-out channels	7.2
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Product color	Black
Audio decoders	DTS-HD, DTS-HD Master Audio, Dolby TrueHD
Multi-Zone quantity	2
Apple docking compatibility	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
HDMI in	8
Audio (L/R) in	5
Remote control in	1
Composite video in	3
Composite video out	0
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Audio formats supported	AAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA

Weight and Dimensions

Depth	389 mm
Width	434 mm
Height	167 mm
Weight	10800 g
