Denon AVR-X4700H User Manual

.

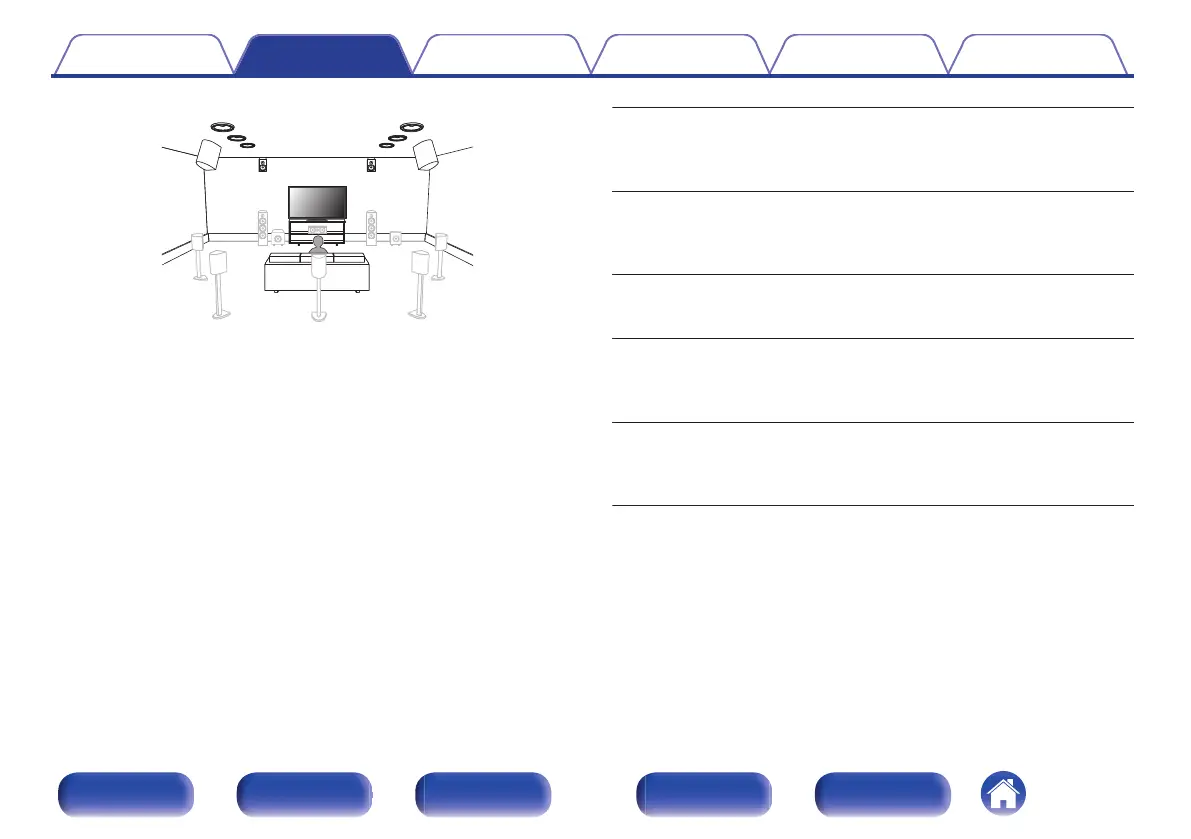

FHL FHR
TRR
TRL
TFR
TFL
RHL RHR
TMR
TML
FHL/FHR
(Front height speaker
left/right):
Place the FRONT HEIGHT left and right speakers
directly above the front speakers. Mount them as
close to the ceiling as possible and aim them
towards the main listening position.
TFL/TFR
(Top front speaker
left/right):
Mount the TOP FRONT left and right speakers on
the ceiling slightly in front of your main listening
position and aligned with the left and right front
speakers.
TML/TMR
(Top middle speaker
left/right):
Mount the TOP MIDDLE left and right speakers
directly above the main listening position and
aligned with the left and right front speakers.
TRL/TRR
(Top rear speaker
left/right):
Mount the TOP REAR left and right speakers on
the ceiling slightly behind your main listening
position and aligned with the left and right front
speakers.
RHL/RHR
(Rear height speaker
left/right):
Place the REAR HEIGHT left and right speakers
directly behind the main listening position. Mount
them as close to the ceiling as possible and
aligned with the left and right front speakers.
Contents Connections Playback Settings Tips Appendix
33
Front panel Display Rear panel Remote Index

Denon AVR-X4700H Specifications

General

Channels	9.2
HDMI Outputs	3
Dolby Atmos	Yes
DTS:X	Yes
IMAX Enhanced	Yes
4K/120Hz Pass-through	Yes
8K/60Hz Pass-through	Yes
Wi-Fi	Yes
Bluetooth	Yes
HEOS Multi-room	Yes
Voice Control	Amazon Alexa, Google Assistant, Apple Siri
Speaker Impedance	4-16 ohms
HDR Support	HDR10, HDR10+, Dolby Vision, HLG
eARC Support	Yes
Auro-3D	Yes
Audyssey MultEQ XT32	Yes
AirPlay 2	Yes
Phono Input	Yes
Input Sensitivity/Impedance	200mV/47k ohms
Analog Audio Inputs	6
Ethernet	Yes
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Power Output	125W per channel (8 ohms, 20Hz-20kHz, THD: 0.05%, 2ch driven)
HDMI Inputs	8
Dimensions	17.1 x 15.3 x 6.6 inches
Zone Output	Zone 2, Zone 3
Frequency Response	10Hz-100kHz (+1, -3 dB, Direct Mode)
Total Harmonic Distortion	0.05% (20Hz-20kHz, 8 ohms)
Signal-to-Noise Ratio	102dB
Video Inputs/Outputs	Component (2 in / 1 out)
Digital Audio Inputs	Optical (2), Coaxial (2)
USB Port	1 (Front)
Supported Video Formats	4K, 8K
