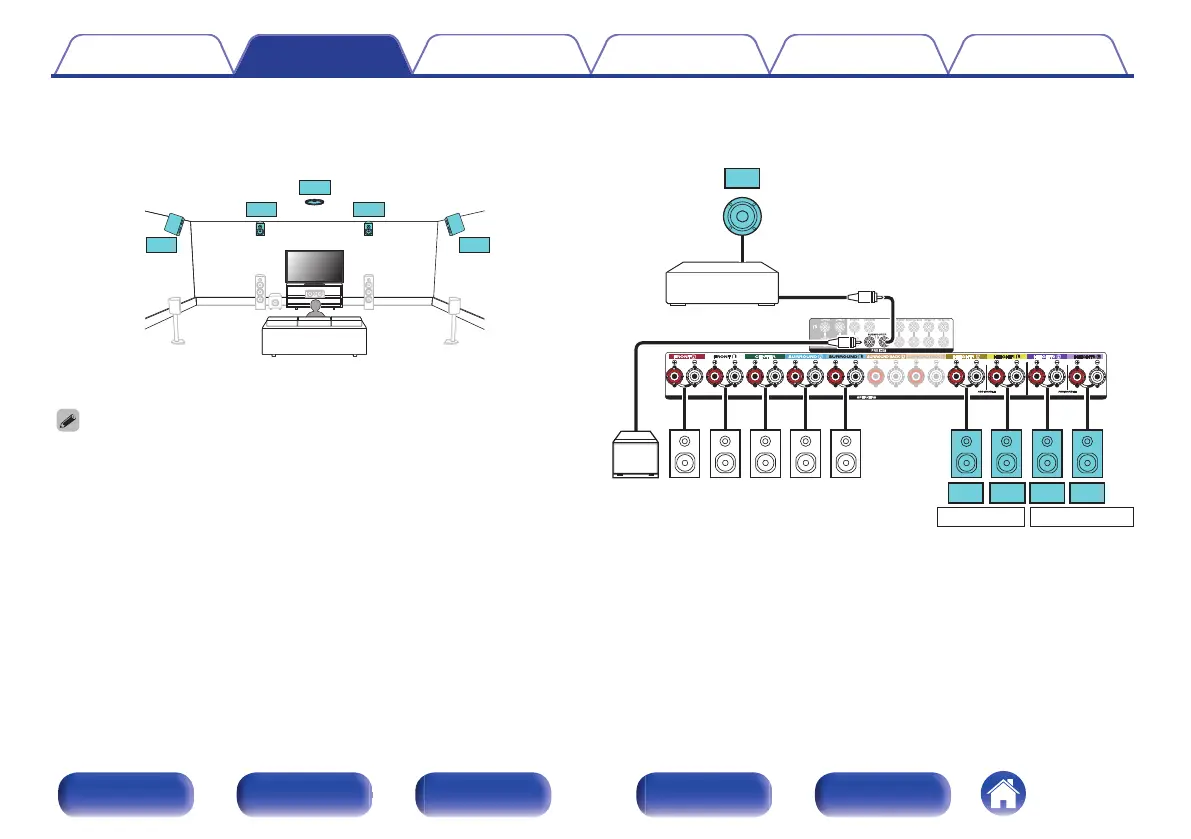

Example connection for the Auro-3D 10.1-channel system
This speaker configuration is optimized for Auro-3D playback.
.
FL FR
SW
SL SR
C
FHL FHR
SHL SHR
TS
0
Set “Height” - “Height Sp” to “5ch” in the menu when connecting in this
configuration. (v p. 233)
Next, set “Height” - “Layout” to “Front Height & Surr. Height”. (v p. 234)
.
FHR FHL
FR FL C SR SL
SW
TS
SHR SHL
Power amplifier
HEIGHT 1
z
1
HEIGHT 2
z
1
z
2
z1
You can change the combination of the HEIGHT1 and HEIGHT2 channels in
the settings. (v p. 64)
z2
For the best Auro-3D experience Surround Height speakers are
recommended, however you may substitute Rear Height speakers from a
Dolby Atmos speaker setup in place of Surround Height speakers.
