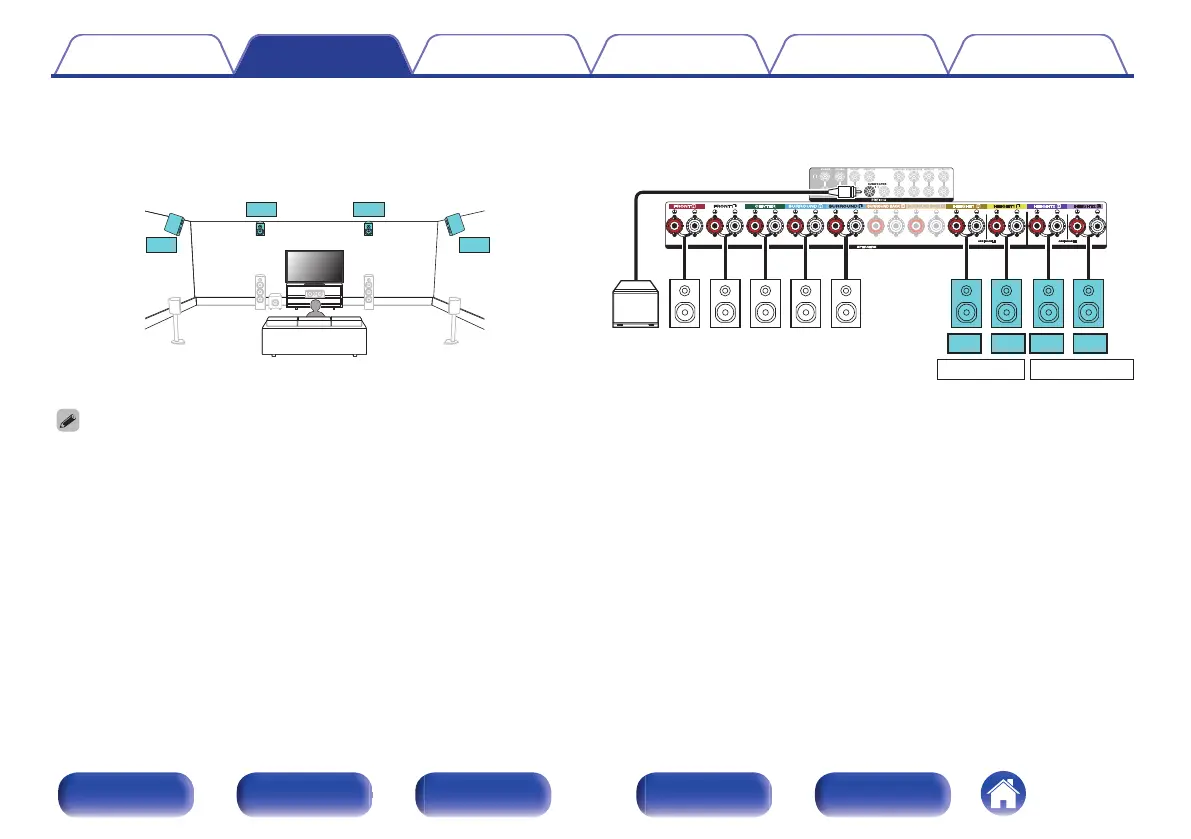

Example connection for the Auro-3D 9.1-channel system
This speaker configuration is optimized for Auro-3D playback.
.
FL FR
SW
SL SR
C
FHL FHR
SHL SHR
0
Set “Height” - “Height Sp” to “4ch” in the menu when connecting in this
configuration. (v p. 233)
Next, set “Height” - “Layout” to “Front Height & Surr. Height”. (v p. 234)
.
FHR FHL SHR SHL
FR FL C SR SL
SW
HEIGHT 1
z
1
HEIGHT 2
z
1
z
2
z1
You can change the combination of the HEIGHT1 and HEIGHT2 channels in
the settings. (v p. 58)
z2
For the best Auro-3D experience Surround Height speakers are
recommended, however you may substitute Rear Height speakers from a
Dolby Atmos speaker setup in place of Surround Height speakers.
Contents
Connections Playback Settings Tips Appendix
57
Front panel Display Rear panel Remote Index

Denon AVR-X4700H Specifications

General

Channels	9.2
HDMI Outputs	3
Dolby Atmos	Yes
DTS:X	Yes
IMAX Enhanced	Yes
4K/120Hz Pass-through	Yes
8K/60Hz Pass-through	Yes
Wi-Fi	Yes
Bluetooth	Yes
HEOS Multi-room	Yes
Voice Control	Amazon Alexa, Google Assistant, Apple Siri
Speaker Impedance	4-16 ohms
HDR Support	HDR10, HDR10+, Dolby Vision, HLG
eARC Support	Yes
Auro-3D	Yes
Audyssey MultEQ XT32	Yes
AirPlay 2	Yes
Phono Input	Yes
Input Sensitivity/Impedance	200mV/47k ohms
Analog Audio Inputs	6
Ethernet	Yes
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Power Output	125W per channel (8 ohms, 20Hz-20kHz, THD: 0.05%, 2ch driven)
HDMI Inputs	8
Dimensions	17.1 x 15.3 x 6.6 inches
Zone Output	Zone 2, Zone 3
Frequency Response	10Hz-100kHz (+1, -3 dB, Direct Mode)
Total Harmonic Distortion	0.05% (20Hz-20kHz, 8 ohms)
Signal-to-Noise Ratio	102dB
Video Inputs/Outputs	Component (2 in / 1 out)
Digital Audio Inputs	Optical (2), Coaxial (2)
USB Port	1 (Front)
Supported Video Formats	4K, 8K
