Refer to the example connection for “Example connection for the Auro-3D
9.1-channel system” (v p. 57) when playing Auro-3D with a 9.1-
channel system using the basic 5.1-channel system and the front height
and surround height speakers.
Also refer to the connection example for “Example connection for the
Auro-3D 10.1-channel system” (v p. 62) when playing Auro-3D with a
10.1-channel system by adding the top surround speaker.
0
In addition to the connections described in p. 46 - 70, this unit allows for various
speaker connections with the “Amp Assign” setting.

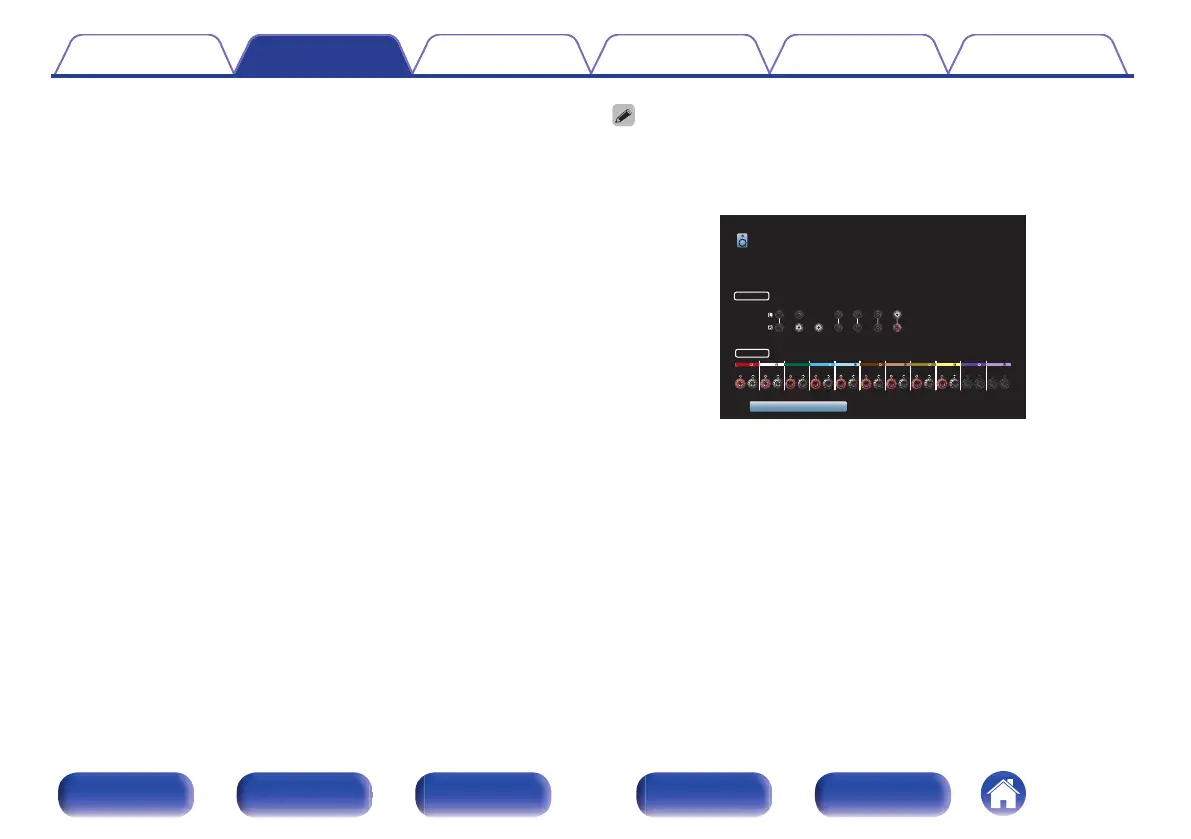

Also refer to the menu screen in “View Terminal Config.” on the “Amp Assign”
setting screen, which shows how to make connections in your environment.
.
T.REARSUBWOOFER
T.FRONTSURR.BACKSURROUNDCENTERFRONT
CENTER SURROUND SURROUNDFRONTFRONT CENTER SURROUND SURROUNDFRONTFRONT HEIGHT1 HEIGHT1HEIGHT1 HEIGHT1
SUBWOOFER
12
HEIGHT2
HEIGHT2
HEIGHT2
SURR.BACK SURR.BACK
SPEAKERS
Speakers/Amp Assign
PRE OUT
Assign Mode 11.1ch
Back
Contents
Connections Playback Settings Tips Appendix
45
Front panel Display Rear panel Remote Index

Denon AVR-X4700H Specifications

General

Channels	9.2
HDMI Outputs	3
Dolby Atmos	Yes
DTS:X	Yes
IMAX Enhanced	Yes
4K/120Hz Pass-through	Yes
8K/60Hz Pass-through	Yes
Wi-Fi	Yes
Bluetooth	Yes
HEOS Multi-room	Yes
Voice Control	Amazon Alexa, Google Assistant, Apple Siri
Speaker Impedance	4-16 ohms
HDR Support	HDR10, HDR10+, Dolby Vision, HLG
eARC Support	Yes
Auro-3D	Yes
Audyssey MultEQ XT32	Yes
AirPlay 2	Yes
Phono Input	Yes
Input Sensitivity/Impedance	200mV/47k ohms
Analog Audio Inputs	6
Ethernet	Yes
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Power Output	125W per channel (8 ohms, 20Hz-20kHz, THD: 0.05%, 2ch driven)
HDMI Inputs	8
Dimensions	17.1 x 15.3 x 6.6 inches
Zone Output	Zone 2, Zone 3
Frequency Response	10Hz-100kHz (+1, -3 dB, Direct Mode)
Total Harmonic Distortion	0.05% (20Hz-20kHz, 8 ohms)
Signal-to-Noise Ratio	102dB
Video Inputs/Outputs	Component (2 in / 1 out)
Digital Audio Inputs	Optical (2), Coaxial (2)
USB Port	1 (Front)
Supported Video Formats	4K, 8K
