Denon AVR-X5200W Service Manual

POWER DIAGRAM
ＡＣ ＰＬＵＧ
IN OUT
IN OUT
IN
OUT
IN OUT
IN OUT
IN
OUT
IN OUT
IN OUT
IN OUT
IN OUT
IN OUT
IN OUT
IN OUT
IN OUT
IN OUT
IN OUT
IN OUT
IN OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN OUT
IN OUT
IN
OUT
IN OUT

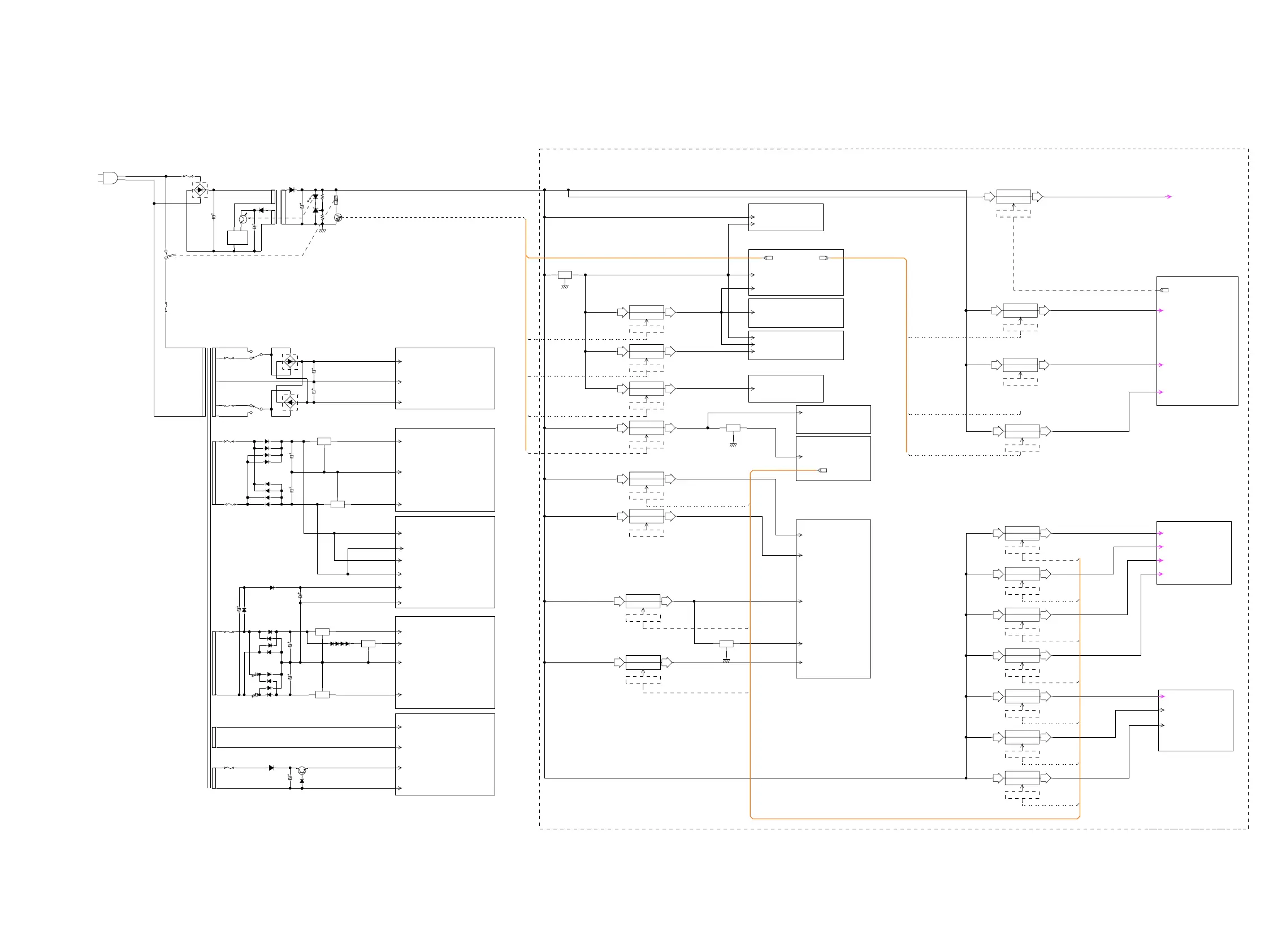

AVR-X5200 BLOCK DIAGRAM (P.SUPPLY)
MAIN_POWER
GND
5.2V
NET3.3V
870_POWER
EX3AV
DC-DC_CONV.
3.3V
D5V
from_MAIN
FRONT_USB_VBUS
NET1.2V
NET3.3V
870_CONTROL
232C+3.3V
5.2V
SCPU5V
SCPU_POWER_MO
2SA2018
TR
5.2V
D5V
form_MAIN
DSP1.1V1
DSP3.3V1
NJM2845DL
SCPU+3.3V
SUBCPU_CONTROL
SCPU5V
D5V
M+3.3V
M+3.3V
SWM+3.3V
M+3.3V
SWM+3.3V
REMOTE+3.3V
MAINCPU_CONTROL
3.3V
REMOTE3.3V
REMOTEPOWER_MO
2SA2018
TR
3.3V
M3.3V
form_MAIN
3.3V
232C3.3V
232C_POWER
2SA2018
TR
3.3V
M3.3V
form_MAIN
NJM2845DL
3.3V
SWM3.3V
CPU_POWER_MO
2SA2018
TR
3.3V
M3.3V
form_MAIN
5.2V
DSP3.3V
DA_POWER
ADP2114ACPZ-R7
DC_DC_CONV.
3.3V
D5V
form_SUBCPU
5.2V
NET1.9V
870_POWER
EX3AV
DC-DC_CONV.
1.9V
D5V
from_MAIN
5.2V
NET1.2V
870_POWER
EX3AV
DC-DC_CONV.
1.2V
D5V
from_MAIN
NET1.9V
5.2V
FRONT_USB_VBUS
cam_xclka
NCP380
IC
5.2V
D5V
form_870
5.2V
CEC1.2V
CEC_POWER
EX3AV
DC-DC_CONV.
1.2V
D5V
form_SUBCPU
5.2V
DV1.8V
DV_POWER2
EX3AV
DC-DC_CONV.
1.8V
D5V
form_SUBCPU
DV1.8V
DV5V
DV3.3V
5.2V
DV3.3V
DV_POWER1
EX3AV
DC_DC_CONV.
3.3V
D5V
form_SUBCPU
5.2V
CEC3.3V
CEC_POWER
EX3AV
DC_DC_CONV.
3.3V
D5V
form_SUBCPU
5.2V
CEC1.2V2
CEC_POWER
EX3AV
DC-DC_CONV.
1.2V
D5V
form_SUBCPU
CEC5V
5.2V
CEC5V
CEC_POWER
2SA2018
TR
5.2V
D5V
form_SUBCPU
CEC3.3V
5.2V
DV5V
DV_POWER1
2SA2018
TR
5.2V
D5V
form_SUBCPU
FLD_VKK
ANALOG_VIDEO_-5V
ANALOG_VIDEO_GND
ANALOG_AUDIO_GND
ANALOG_AUDIO_-7V
POWER_AMP_GND
FLD_AC
FLD_AC
ANALOG_AUDIO_+7V
POWER_AMP_HIGH_B
RELAY_12V
TRIGGER1&2_+12V
FAN_GND
POWER_AMP_HIGH_B
FLD_GND
TRIGGER_GND
ANALOG_VIDEO_+3.3V
RELAY_GND
ANALOG_VIDEO_+5V
FAN_+6 ～ 12V
SWM+3.3V
CEC1.2V
CEC1.2V2
3.3V
DSP1.1V
DA_POWER
ADP2114ACPZ-R7
DC-DC_CONV.
1.1V
D3.3V
5.2V
DA3.3V
DA_POWER
EX3AV
DC_DC_CONV.
3.3V
D5V
form_SUBCPU
NJM2845DL1-18
DA3.3V
DA1.8V
5.2V
CEC1.1V
CEC_POWER
EX3AV
DC-DC_CONV.
1.1V
D5V
form_SUBCPU
DA1.1V2
CONTR
OLLER
CX870
PHY/
RAM/
ROM
DSP/DIR/
PLD/DAC
SUB CPU
CEC_BUFFER
RESET/B_DOWN
MAIN CPU
FRONT
232C
2ch
I/P OSD
HDMI SW1
VIDEO PLD
HDMI SW2
DECORDER
HDMI TX
TRIG/FAN BLOCK
FLD BLOCK
ANALOG VIDEO BLOCK
ANALOG AUDIO BLOCK
POWER AMP BLOCK
HD_RADIO
DIGITAL PCB BLOCK
125
