Denon AVR-X5200W Service Manual

JIG FOR SERVICING
The following jigs (extension cable kit) are used when repairing the PCBs.
Order the jigs from your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.

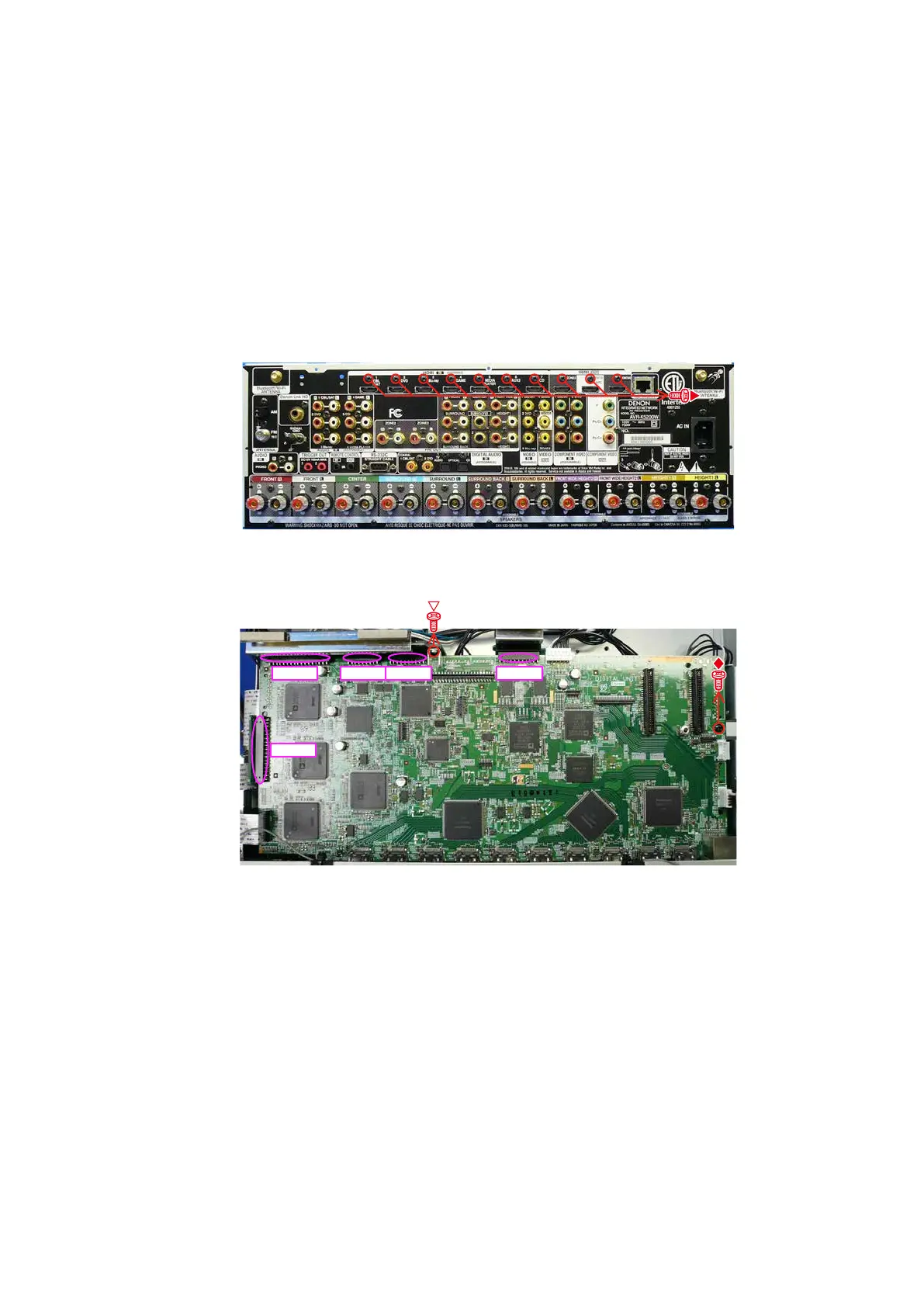

• Connection of Jig for DIGITAL PCB
-Items to Be Prepared-
8U- 110084S : EXTENSION UNIT KIT : 1 Set
Insulation sheet (Not supplied) : 1 sheet
Ground lead (Not supplied) : 1 pc
-Procedures-
(1) Remove the screws.
(2) Remove the connector PCB.
Front side
N1001 N5003 N5004 N1805
N1804
77

Denon AVR-X5200W Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Output impedance	16 Ω
Speaker selector	A+B
Pre-out connectivity	Yes
Audio output channels	- channels
Power output per channel (1KHz@6 Ohm)	205 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	8
Remote (IR) input	1
Composite video in	5
Component video (YPbPr/YCbCr) in	2
Number of HDMI outputs	3
Connectivity technology	Wired & Wireless
Speakers connectivity type	-
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Supported radio bands	AM, FM
Internet radio services supported	Spotify, vTuner
Optical drive included	No
Product color	Silver
Audio decoders	Dolby TrueHD, DTS 96/24, DTS Neo:X, DTS-ES, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	730 W

Weight and Dimensions

Depth	393 mm
Width	434 mm
Height	167 mm
Weight	14200 g
