Denon AVR-X5200W Service Manual

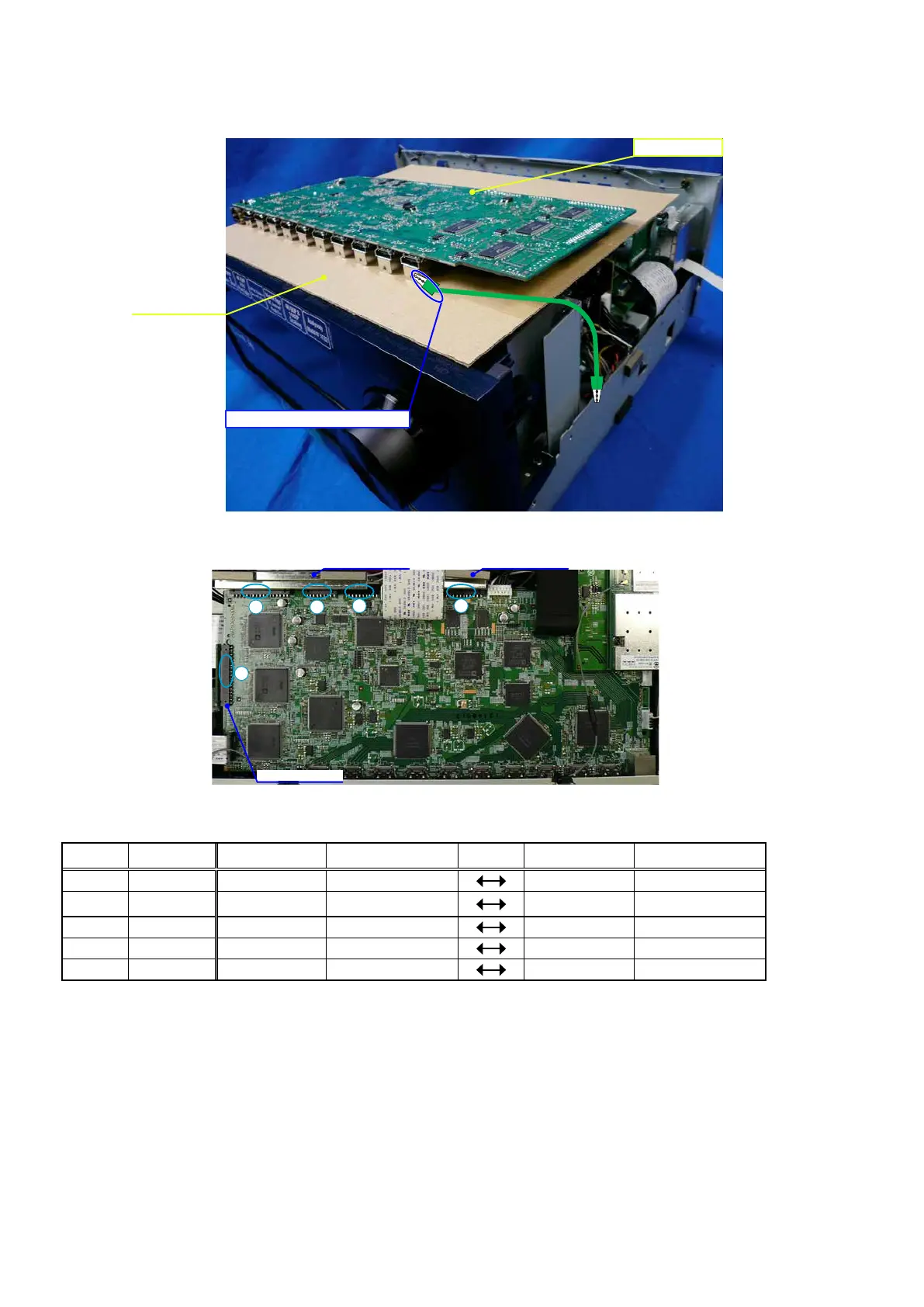

(3) Remove the DIGITAL PCB from the chassis and turn it over.
Place an insulation sheet larger than the PCB underneath the DIGITAL PCB.
b
Connect the earth of the PCB to the chassis using an earth wire, etc.
(4) Connect the expansion cables.
Connection table of Board to Board
No. Pin Ref. No. PCB Ref. No. PCB
q
33pin N5202 CONNECTOR-5
N1804 DIGITAL
w
33pin N5901 CONNECTOR-1
N1001 DIGITAL
e
17pin N5905 CONNECTOR-1
N5003 DIGITAL
r
19pin N5907 CONNECTOR-1
N5004 DIGITAL
t
21pin N5909 CONNECTOR-2
N1805 DIGITAL
Insulation sheet
PCB DIGITAL
CHASSIS-HDMI CONNECTOR
CONNECTOR-1 CONNECTOR-2
CONNECTOR-5
1
2 3
5
4
78

Denon AVR-X5200W Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Output impedance	16 Ω
Speaker selector	A+B
Pre-out connectivity	Yes
Audio output channels	- channels
Power output per channel (1KHz@6 Ohm)	205 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	8
Remote (IR) input	1
Composite video in	5
Component video (YPbPr/YCbCr) in	2
Number of HDMI outputs	3
Connectivity technology	Wired & Wireless
Speakers connectivity type	-
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Supported radio bands	AM, FM
Internet radio services supported	Spotify, vTuner
Optical drive included	No
Product color	Silver
Audio decoders	Dolby TrueHD, DTS 96/24, DTS Neo:X, DTS-ES, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	730 W

Weight and Dimensions

Depth	393 mm
Width	434 mm
Height	167 mm
Weight	14200 g
