Denon AVR-X5200W Service Manual

ADJUSTMENT
Adjusting Idling Current
1. Preparation
(1) Prepare a DV voltmeter.
(2) Place the unit in normal usage conditions, away from highly ventilated areas such as next to an air conditioning
machine or electric fan.
The set requires an ambient temperature of 15
℃
to 30
℃
and standard humidity.
(3) Settings of This Unit
• POWER (Power source switch) STANDBY
• SPEAKER (Speaker terminal) No load
( Do not connect equipment such as speakers or dummy resistors. )
2. Adjustment Procedure
(1) Remove the top cover and turn V101(ALL Channel) of the AMP UNIT as far anticlockwise(
c
) as possible.
(2) Connect the DC Voltmeter test points.
s
FRONT-Lch
：
N5813 10, 11pin
FRONT-Rch
：
N5823 2, 3pin
CENTER ch
：
N5813 8, 9pin
SURROUND-Lch
：
N5813 6, 7pin
SURROUND-Rch
：
N5823 4, 5pin
SURROUND-BACK Lch
：
N5813 4, 5pin
SURROUND-BACK Rch
：
N5823 6, 7pin
FRONT-WIDE/HEIGHT Lch
：
N5813 2, 3pin
FRONT-WIDE/HEIGHT Rch
：
N5823 8, 9pin
(3) Connect the power cord to an outlet. Next, press the power button to turn on the power.
(4) Set this unit as follows.
MASTER VOLUME
：
"---" anticlockwise (
c
min.)
SPEAKER (Speaker terminal)
：
No load
( Do not connect equipment such as speakers or dummy resistors. )
MODE
：
MCH STEREO
FUNCTION
：
DVD
(5) Turn VR101 clockwise (
x
) and adjust the voltage of the test point to "8.0mV ± 0.5mV DC" within 2 minutes.
(6) 10 minutes after the preliminary adjustment, turn V101 and set the voltage as "
8.0mV ± 0.5mV DC".
(7) Adjust the variable resistance of each channel using the same method.

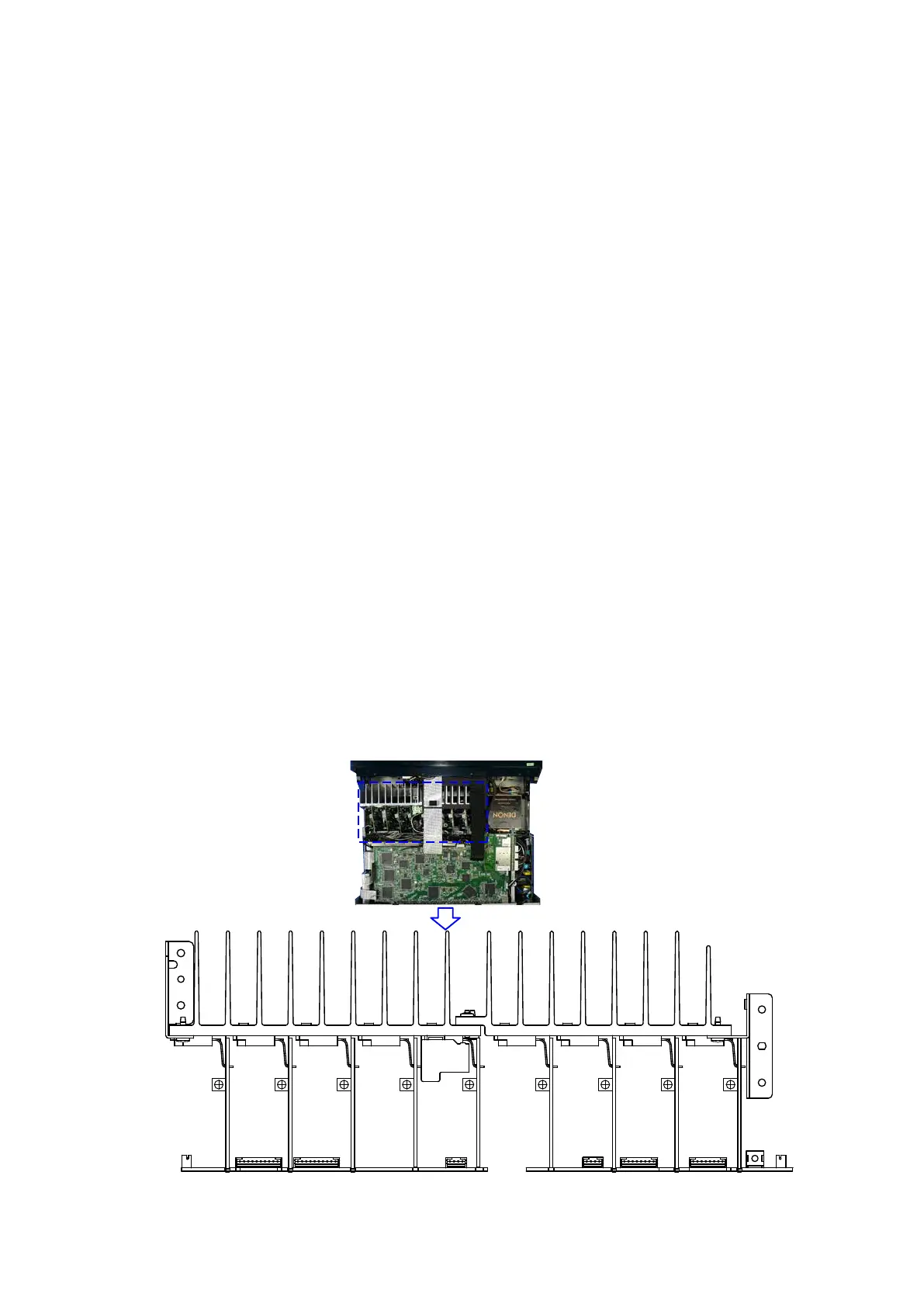

L-AMP CONNECT PCB R-AMP CONNECT PCB
FL
V101 V101 V101 V101 V101 V101 V101 V101 V101
FHL SBL SL C FHRSBRSRFR
N5823N5813
95

Denon AVR-X5200W Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Output impedance	16 Ω
Speaker selector	A+B
Pre-out connectivity	Yes
Audio output channels	- channels
Power output per channel (1KHz@6 Ohm)	205 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	8
Remote (IR) input	1
Composite video in	5
Component video (YPbPr/YCbCr) in	2
Number of HDMI outputs	3
Connectivity technology	Wired & Wireless
Speakers connectivity type	-
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Supported radio bands	AM, FM
Internet radio services supported	Spotify, vTuner
Optical drive included	No
Product color	Silver
Audio decoders	Dolby TrueHD, DTS 96/24, DTS Neo:X, DTS-ES, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	730 W

Weight and Dimensions

Depth	393 mm
Width	434 mm
Height	167 mm
Weight	14200 g
