Denon AVR-X5200W Service Manual

TECHNICAL SPECIFICATIONS
n
Audio section
• Power amplifier
Rated output
:
Front：
140W+140W (8Ω, 20Hz - 20kHz with 0.05% T.H.D.)
175W+175W (6Ω, 1kHz with 0.7% T.H.D)
Center :
140W (8Ω, 20Hz - 20kHz with 0.05% T.H.D.)
175W (6Ω, 1 kHz with 0.7 % T.H.D.)
Surround :
140W+140W (8Ω, 20 Hz - 20 kHz with 0.05% T.H.D.)
175W+175W (6Ω, 1 kHz with 0.7 % T.H.D.)
Surround back / Height1 / Front wide / Height2:
140W+140W (8Ω, 20 Hz - 20 kHz with 0.05% T.H.D.)
175W+175W (6Ω, 1 kHz with 0.7 % T.H.D.)
Rated output :
160 W x 2-channel (8 Ω)
250 W x 2-channel (4 Ω)
Output connectors：4 - 16Ω
n
Analog section
Input sensitivity/Input impedance：200 mV/47 kΩ
Frequency response： 10 Hz - 100 kHz — +1, -3 dB(Direct mode)
S/N：102 dB(IHF-A weighted, Direct mode)
Distortion：0.005 % (20 Hz – 20 kHz) (Direct mode)
Rated output：1.2 V
n
Digital section
D/A output： Rated output — 2 V (at 0 dB playback)
Total harmonic distortion — 0.008 % (1 kHz, at 0 dB)
S/N ratio — 102 dB
Dynamic range — 100 dB
Digital input：Format — Digital audio interface
n
Phono equalizer section
Input sensitivity： 2.5 mV
RIAA deviation：
±1 dB (20 Hz to 20 kHz)
S/N： 74 dB (IHF-A)
Distortion factor： 0.03 % (1 kHz, 3 V)
n
Video section
• Standard video connectors
Input/output level and impedance：
1 Vp-p, 75 Ω
Frequency response：5 Hz – 10 MHz — 0, –3 dB
• Color component video connector
Input/output level and impedance：
Y signal — 1 Vp-p, 75 Ω
PB / CB signal — 0.7 Vp-p, 75 Ω
PR / CR signal — 0.7 Vp-p, 75 Ω
Frequency response：5 Hz - 60 MHz — 0, -3 dB
n
Tuner section
Reception frequency range： F M 87.5 MHz - 107.9 MHz(for E3)
FM 87.5 MHz - 108.0 MHz(for E2, E1C)
AM 530 kHz - 1710 kHz(for E3)
AM 522 kHz - 1611 kHz(for E2, E1C)
Effective sensitivity：
FM 1.5μV(14.8dBf)
AM 20 μV
50 dB sensitivity：
MONO ― 2.8 μV (20.2 dBf)
S/N ratio (IHF-A)： MONO ― 78 dB
STEREO ― 68 dB
HD ― FM 85dB AM 85dB
Distortion (1 kHz)：
MONO ― 0.1 %
SRETEO ― 0.2 %
HD ― FM 0.02% AM 0.02%
n
Wireless LAN section
Network type
(wireless LAN standard): Conforming to Wi-Fi®z1
Security：
WEP 64 bit, WEP 128 bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
Radio frequency：
2.4 GHz
No. of channels： 1 - 11 ch (for E3)
1 - 13 ch (for E2, E1C)
z1
The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product
Logo are registered trademarks of the Wi-Fi Alliance.
n
Bluetooth section
Communications system： Bluetooth Version 2.1 + EDR
(Enhanced Data Rate)
Transmission power：Maximum 2.5 mW (Class 2)
Maximum communication range：Approx. 32.8 ft/10 m in line of sight
Frequency band：2.4 GHz band
Modulation scheme：FHSS (Frequency-Hopping Spread Spectrum)
Supported proles：
A2DP 1.2 (Advanced Audio Distribution Prole)
AVRCP 1.4 (Audio Video Remote Control Prole)
Corresponding codec：SBC, AAC
Transmission range (A2DP)：20 Hz - 20,000 Hz
n
General
Power supply： (for E3) : AC 120 V, 60 Hz
(for E2) : AC 230 V, 50 Hz / 60Hz
(for E1C) : AC 220 V, 50 Hz
Power consumption：730W
Power consumption in standby mode：0.1W
Power consumption in CEC standby mode：0.5W
Power consumption in network standby mode：4.5W
For purposes of improvement, specications and design are subject to
change without notice.

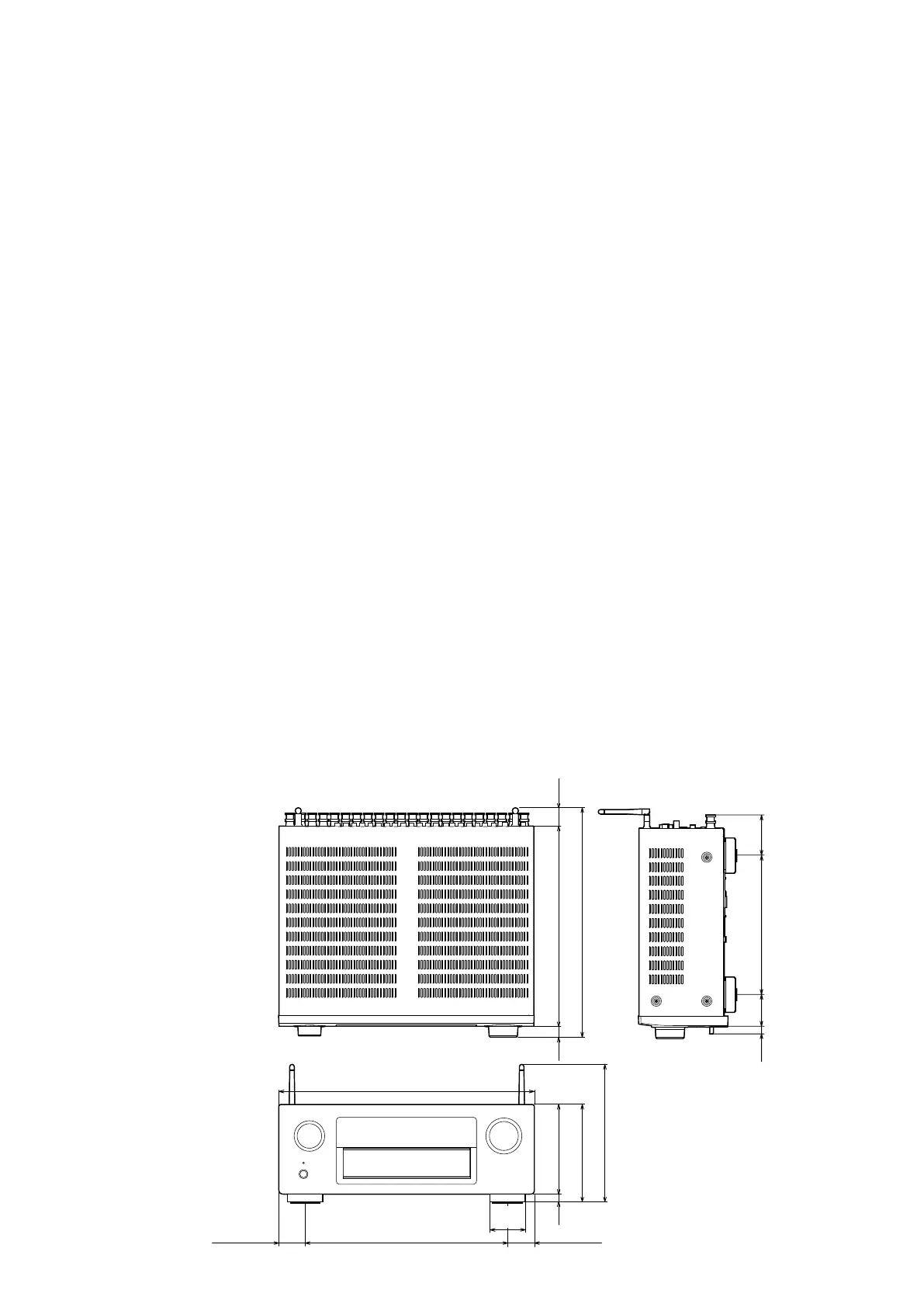

DIMENSION
Unit： in. (mm) Weight： 31 lb 1 oz (14.1 kg)
17 1/8 (435)
9 21/64 (237)
2 11/64
(55)
2 3/4
(70)
19/32
(15)
5 63/64 (152) 6 37/64 (167)
9 1/4 (235)
13 11/32 (339) 15 15/32 (393)
55/64
(22)
15/32
(12)
1 17/64
(32)
13 35/64 (344)
2 23/64
(60)
1 51/64 (45.5) 1 51/64 (45.5)
9

Denon AVR-X5200W Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Output impedance	16 Ω
Speaker selector	A+B
Pre-out connectivity	Yes
Audio output channels	- channels
Power output per channel (1KHz@6 Ohm)	205 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	8
Remote (IR) input	1
Composite video in	5
Component video (YPbPr/YCbCr) in	2
Number of HDMI outputs	3
Connectivity technology	Wired & Wireless
Speakers connectivity type	-
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Supported radio bands	AM, FM
Internet radio services supported	Spotify, vTuner
Optical drive included	No
Product color	Silver
Audio decoders	Dolby TrueHD, DTS 96/24, DTS Neo:X, DTS-ES, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	730 W

Weight and Dimensions

Depth	393 mm
Width	434 mm
Height	167 mm
Weight	14200 g
