TERMINAL
I/O
PULL-
DOWN
5-V
TOLERANT
DESCRIPTION
NAME PIN
VOUT1+ 43 O No No Positive analog output from DAC1
VOUT1- 44 O No No Negative analog output from DAC1
RSV2 45 — — — Reserved, tied to analog ground
AGND2 46 — — — Analog ground 2
VCC2 47 — — — Analog power supply 2, +5 V
RSV2 48 — — — Reserved, tied to analog ground
(1) Open-drain conguration in out mode.

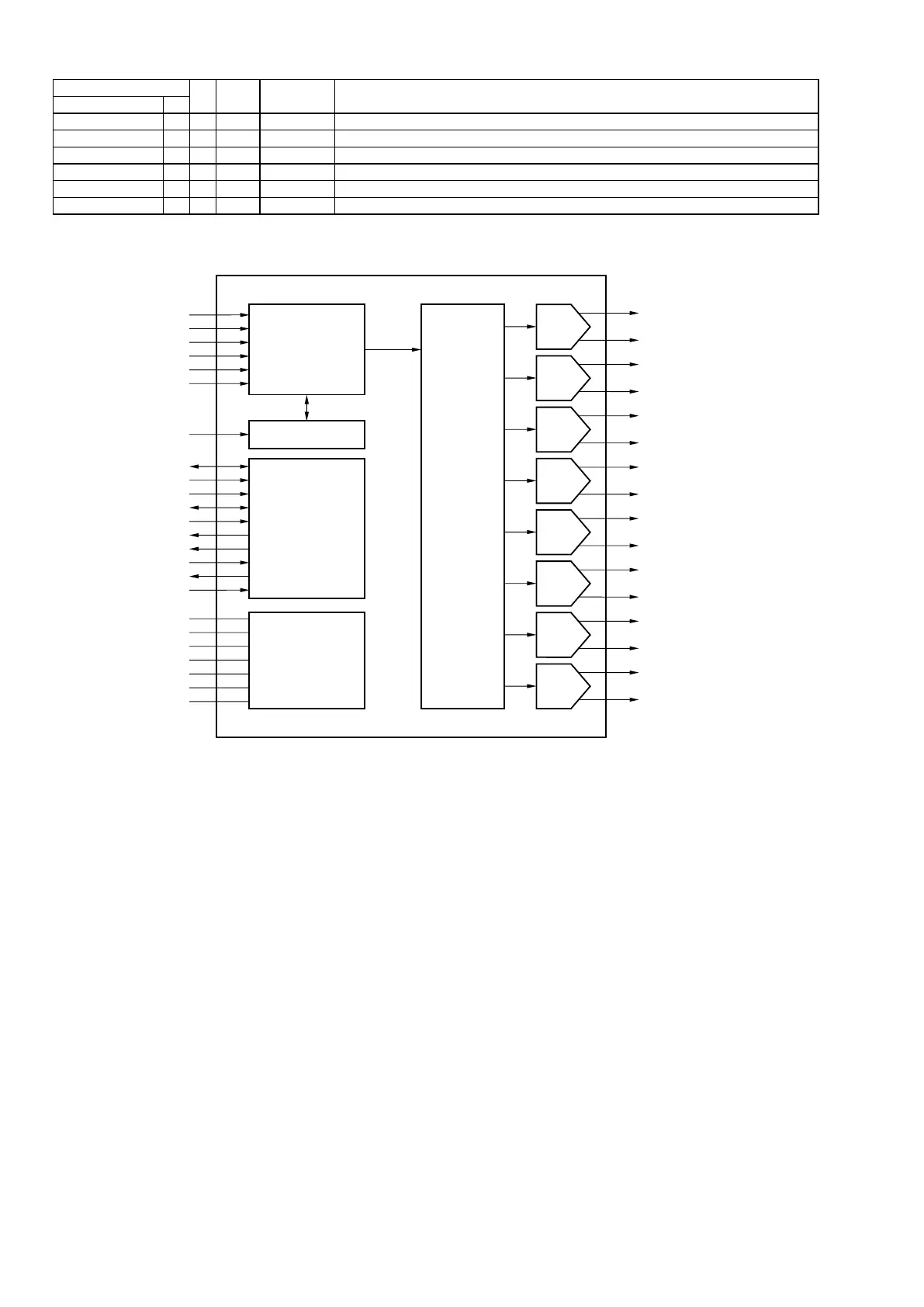

PCM1690 FUNCTIONAL BLOCK DIAGRAM
FUNCTIONAL BLOCK DIAGRAM
DAC
VOUT1+
VOUT1

DAC
VOUT2+
VOUT2

DAC
VOUT3+
VOUT3

DAC
VOUT4+
VOUT4

DAC
VOUT5+
VOUT5

DAC
VOUT6+
VOUT6

AGND2
VDD
DGND
VCOM
VCC1
AGND1
VCC2
DAC
VOUT7+
VOUT7

DAC
VOUT8+
VOUT8

DigitalFilter
and
Volume
PowerSupplyand
CommonVoltage
SCKI
SCKManager
RST
AMUTEO
AMUTEI
ZERO2
ZERO1
MODE
MD/SDA/DEMP
MC/SCL/FMT
MS/ADR0/RSV
TEST/ADR1/RSV
ControlInterface
(SPI/I C/HW)
2
LRCK
BCK
DIN4
DIN3
DIN2
DIN1
AudioInterface
PCM1690
SBAS448A–OCTOBER 2008–REVISED JANUARY 2009.............................................................................................................................................. www.ti.com
8 Submit Documentation Feedback Copyright © 2008–2009, Texas Instruments Incorporated
Product Folder Link(s): PCM1690
