Denon AVR-X6200W Service Manual

CAUTION IN SERVICING

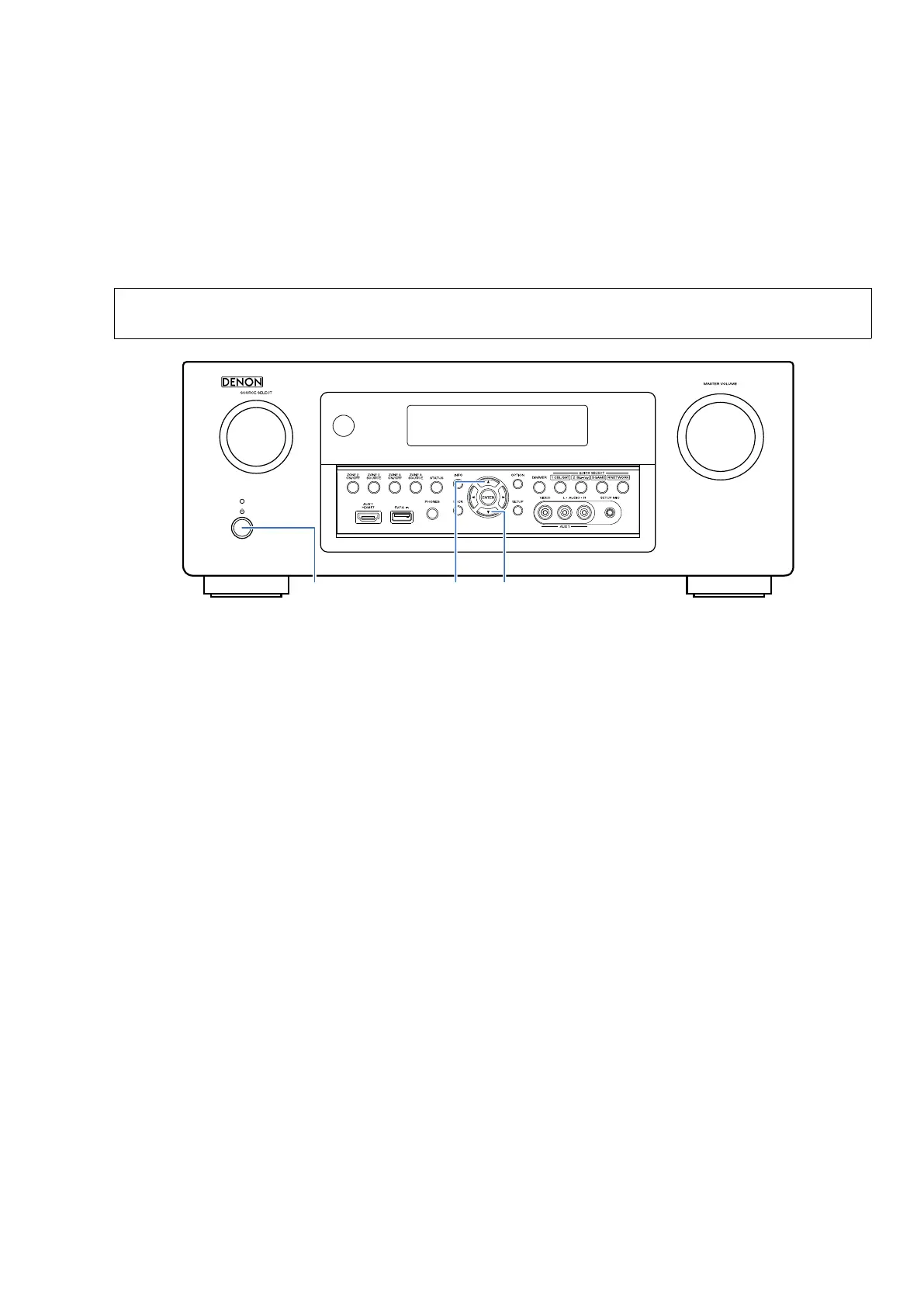

Initializing This Unit
Make sure to initialize this unit after replacing the microcomputer or any peripheral equipment, or the digital PCB.
1. Press the power button to turn off the power.
2. While holding down buttons "
CURSOR
d
" and "
CURSOR
f
" simultaneously, press the power button to turn on the
power.
3. Release the buttons after conrming that the display ashes at 1-second intervals.
＊ The unit is initialized.
NOTE：
• If the unit fails to enter the service mode in step 3, repeat the procedure from step 1.
• Initializing the device restores the customized settings to the factory settings. Write down your settings in advance and
recongure the settings after initialization.
JIG FOR SERVICING
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
8U-110084S : EXTENSION UNIT KIT : 2Sets
(See page 77)
X
CURSOR d CURSOR f
11

Denon AVR-X6200W Specifications

General

Display	VFL
Product color	Silver
RS-232 ports	1
12V trigger ports quantity	2
Speakers connectivity type	RCA
HDMI in	8
Composite video in	5
Receiver type	Surround
Frequency range	10 - 100000 Hz
Pre-out channels	13.2
Input sensitivity	200 mV
Audio output channels	9.2 channels
Signal-to-Noise Ratio (SNR)	102 dB
Power output per channel (1KHz@6 Ohm)	205 W
Power output per channel (20-20KHz@8 Ohm)	140 W
Number of HDMI outputs	3
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	730 W
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Spotify
3D	-
Supported graphics resolutions	4096 x 2160
Card reader integrated	No
Audio formats supported	AAC, AIFF, ALAC, FLAC, MP3, WAV
Image formats supported	JPG

Weight and Dimensions

Depth	383 mm
Width	434 mm
Height	167 mm
Weight	14100 g
