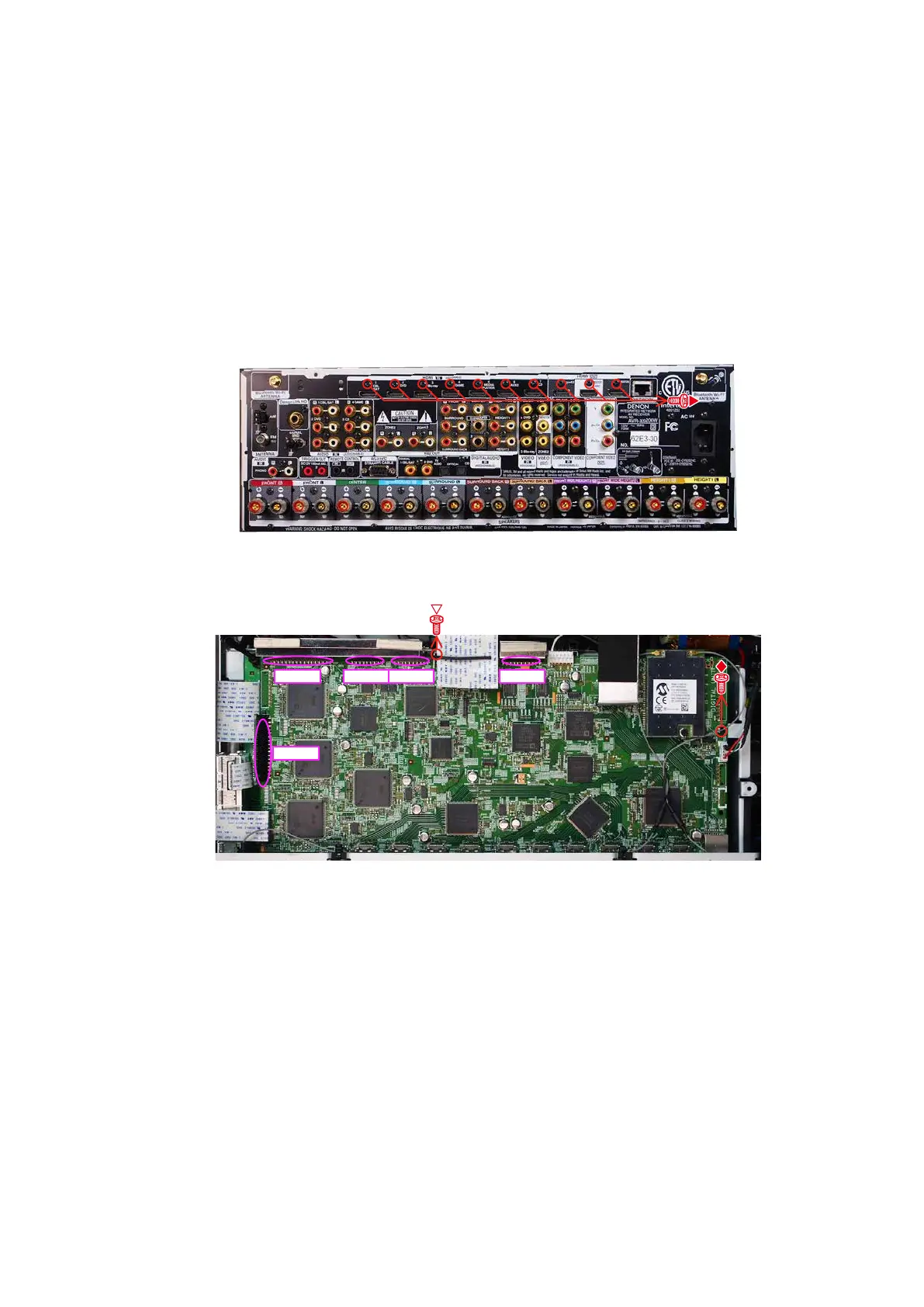

JIG FOR SERVICING
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.
Connection of Jig for DIGITAL PCB
---Items to Be Prepared---
8U-110084S : EXTENSION UNIT KIT : 1set
Insulation sheet (Not supplied) : 1 sheets
Ground lead (Not supplied) : 1 pcs
-Procedures-
(1) Remove the screws.
(2) Remove the connector PCB.
Front side
N1001 N5003 N5004 N1805
N1804
77
