Denon AVR-X6200W Service Manual

Explanatory Photos for DISASSEMBLY
• For the shooting direction of each photos used in this manual, see the photo below.
• A, B, C and D in the photo below indicate the shooting directions of photos.
• The photographs with no shooting direction indicated were taken from the top of the unit.
• Photos of AVR-X6200W E3 are used in this manual.

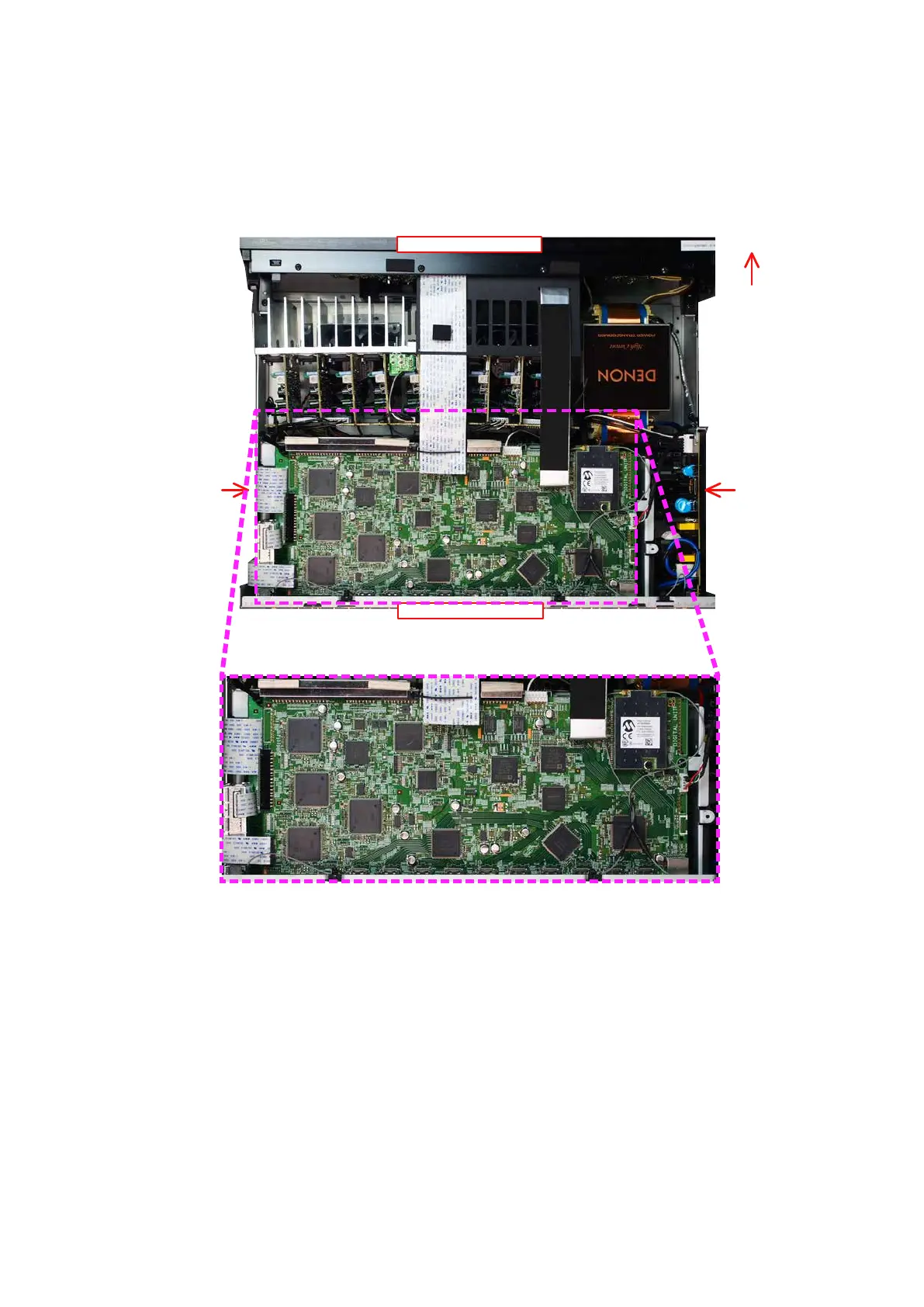

The viewpoint of each photograph
(Shooting direction : X) [View from the top]
Front side
Shooting
direction: D
Shooting
direction: C
↑Shooting direction: A↑
↓Shooting direction: B↓
13

Denon AVR-X6200W Specifications

General

Display	VFL
Product color	Silver
RS-232 ports	1
12V trigger ports quantity	2
Speakers connectivity type	RCA
HDMI in	8
Composite video in	5
Receiver type	Surround
Frequency range	10 - 100000 Hz
Pre-out channels	13.2
Input sensitivity	200 mV
Audio output channels	9.2 channels
Signal-to-Noise Ratio (SNR)	102 dB
Power output per channel (1KHz@6 Ohm)	205 W
Power output per channel (20-20KHz@8 Ohm)	140 W
Number of HDMI outputs	3
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	730 W
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Spotify
3D	-
Supported graphics resolutions	4096 x 2160
Card reader integrated	No
Audio formats supported	AAC, AIFF, ALAC, FLAC, MP3, WAV
Image formats supported	JPG

Weight and Dimensions

Depth	383 mm
Width	434 mm
Height	167 mm
Weight	14100 g
