Denon DCD-3560 - Disc Care and Remote Operation; Compact Disc Handling and Storage; Remote Control Unit Usage

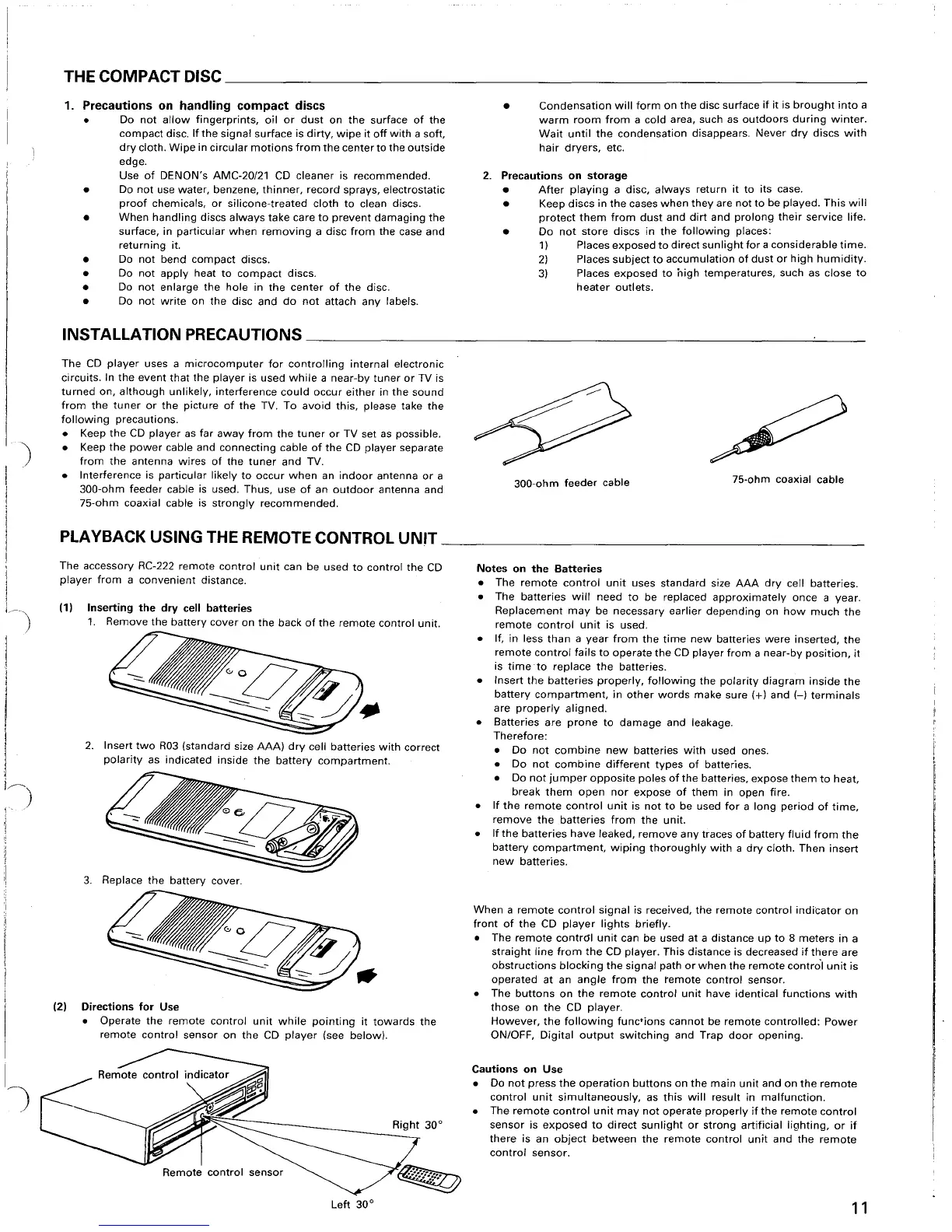

THE COMPACT DISC _
1. Precautions on handling compact discs
• Do not allow fingerprints, oil or dust on the surface of the
compact disc. If the signal surface is dirty, wipe it off with a soft,
dry cloth. Wipe in circular motions from the center to the outside
edge.
Use
of DEN ON's AMC-20/21 CD cleaner is recommended.
• Do not use water, benzene, thinner, record sprays, electrostatic
proof chemicals, or silicone-treated cloth to clean discs.
•
When handling discs always take care to prevent damaging the
surface, in particular when removing a disc from the case and
returning it.
• Do
not bend compact discs.
• Do
not apply heat to compact discs.
• Do
not enlarge the hole in the center of the disc.
• Do
not write on the disc and do not attach any labels.
•
Condensation will form on the disc surface if it is brought into a
warm room from a cold area, such as outdoors during winter.
Wait until the condensation disappears. Never dry discs with
hair dryers, etc.
2. Precautions on storage
• After playing a disc, always return it to its case.
• Keep
discs in the cases when they are not to be played. This will
protect them from dust and dirt and prolong their service life.
•
Do not store discs in the following places:
1) Places exposed to direct sunlight for a considerable time.
2) Places subject to accumulation of dust or high humidity.
3) Places exposed to high temperatures, such as close to
heater outlets.
The CD player uses a microcomputer for controlling internal electronic
circuits. In
the event that the player is used while a near-by tuner or TV is
turned on, although unlikely, interference could occur either in the sound
from the tuner or the picture of the TV. To avoid this, please take the
following precautions.
• Keep
the CD player as far away from the tuner or TV set as possible.
• Keep
the power cable and connecting cable of the CD player separate
from the antenna wires of the tuner and TV.
• Interference is
particular likely to occur when an indoor antenna or a
300-ohm feeder cable is used. Thus, use of an outdoor antenna and
75-ohm coaxial cable is strongly recommended.
300-ohm feeder cable
75-ohm coaxial cable
PLAYBACK USING THE REMOTE CONTROL UNIT _
I
I
I
I
i~)
The accessory RC-222 remote control unit can be used to control the CD
player from a convenient distance.
(1)
Inserting the dry cell batteries
1. Remove the battery cover on the back of the remote control unit.
2. Insert two R03 (standard size AAA) dry cell batteries with correct
polarity as indicated inside the battery compartment.
3. Replace the battery cover.
(2)
Directions for Use
• Operate
the remote control unit while pointing it towards the
remote control sensor on the CD player (see below).
Notes on the Batteries
• The remote control unit uses standard size AAA dry cell batteries.
• The
batteries will need to be replaced approximately once a year.
Replacement may be necessary earlier depending on how much the
remote control unit is used.
• If,
in less than a year from the time new batteries were inserted, the
remote control fails to operate the CD player from a near-by position, it
is time to replace the batteries.
• Insert
the batteries properly, following the polarity diagram inside the
battery compartment, in other words make sure (+) and (-) terminals
are properly aligned.
• Batteries are prone to damage and leakage.
Therefore:
• Do not combine new batteries with used ones.
•
Do not combine different types of batteries.
• Do
not jumper opposite poles of the batteries, expose them to heat.
break them open nor expose of them in open fire.
• If
the remote control unit is not to be used for a long period of time,
remove the batteries from the unit.
• If
the batteries have leaked, remove any traces of battery fluid from the
battery compartment, wiping thoroughly with a dry cloth. Then insert
new batteries.
When a remote control signal is received, the remote control indiCator on
front of the CD player lights briefly.
• The remote contral unit can be used at a distance up to 8 meters in a
straight line from the CD player. This distance is decreased if there are
obstructions blocking the signal path or when the remote contro'l unit is
operated at an angle from the remote control sensor.
• The
buttons on the remote control unit have identical functions with
those on the CD player.
However, the following func'ions cannot be remote controlled: Power
ON/OFF, Digital output switching and Trap door opening.
Left 30°
Cautions on Use
• Do not press the operation buttons on the main unit and on the remote
control unit simultaneously, as this will result in malfunction.
• The remote control unit may not operate properly if the remote control
sensor is exposed to direct sunlight or strong artificial lighting, or if
there is an object between the remote control unit and the remote
control sensor.
11
