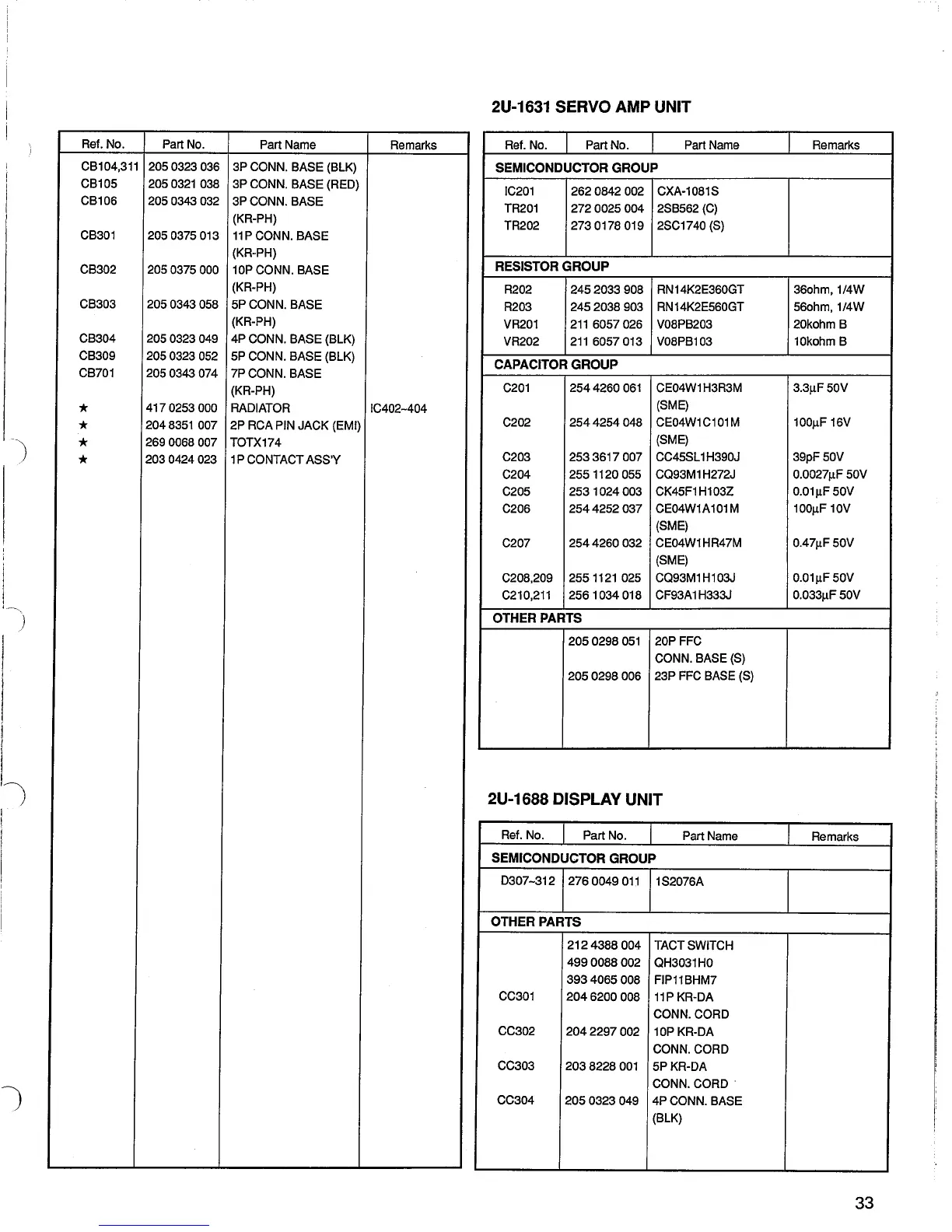

Denon DCD-3560 - Servo Amp and Display Unit Parts

I
I
I
I
)
!
I
I
Ref. No.
Part No.
Part Name
Remarks
CB104,311
2050323036
3P CONN. BASE (BlK)
CB105 2050321038
3P CONN. BASE (RED)
CB106
2050343 032
3P CONN. BASE
(KR-PH)
CB301
2050375013
11PCONN.BASE
(KR-PH)
CB302
2050375000
10P CONN. BASE
(KR-PH)
CB303
2050343058
5P CONN. BASE
(KR-PH)
CB304
2050323049
4P CONN. BASE (BlK)
CB309 2050323052
5P CONN. BASE (BlK)
CB701
2050343 074 7P CONN. BASE
(KR-PH)
*
4170253000 RADIATOR
IC402-404
*
2048351007
2P RCA PIN JACK (EMI)
*
2690068007
TOTX174
*
2030424023
1P CONTACT ASS'Y
2U-1631 SERVO AMP UNIT
Ref. No. Part No. Part Name Remarks
SEMICONDUCTOR GROUP
IC201 2620842002 CXA·1081S
TR201
2720025004
2SB562 (C)
TR202 2730178019 2SC1740 (S)
RESISTOR GROUP
R202
2452033908
RN14K2E360GT 36ohm,1/4W
R203 2452038903 RN 14K2E560GT 56ohm,1/4W
VR201 2116057026 V08PB203 20kohm B
VR202
211 6057013 V08PB103 10kohm B
CAPACITOR GROUP
C201 2544260061 CE04W1 H3R3M
3.3J.lF50V
(SME)
C202
2544254048 CE04W1 C1 01 M 100J.lF 16V
(SME)
C203
2533617007 CC45Sl1H390J
39pF 50V
C204
2551120055 CQ93M1H272J 0.0027J.lF 50V
C205
2531024003 CK45F1 H103Z 0.01J.lF50V
C206 2544252037 CE04W1A101 M 100J.lF 10V
(SME)
C207
2544260032 CE04W1 HR47M 0.47J.lF 50V
(SME)
C208,209 2551121 025 CQ93M1H103J
0.01J.lF 50V
C210,211
2561034018 CF93A1 H333J 0.033J.lF50V
OTHER PARTS
2050298051 20P FFC
CONN. BASE
(S)
2050298006
23P FFC BASE (S)
2U-1688 DISPLAY UNIT
Ref. No.
Part No.
Part Name
Remarks
SEMICONDUCTOR GROUP
D307-312
2760049011
1S2076A
OTHER PARTS
2124388004
TACT SWITCH
4990088002
QH3031HO
3934065008
FIP11BHM7
CC301
2046200008 11P KR-DA
CONN. CORD
CC302
2042297002
10P KR-DA
CONN. CORD
CC303
2038228001
5PKR-DA
CONN. CORD·
CC304
2050323049
4P CONN. BASE
(BlK)
33
