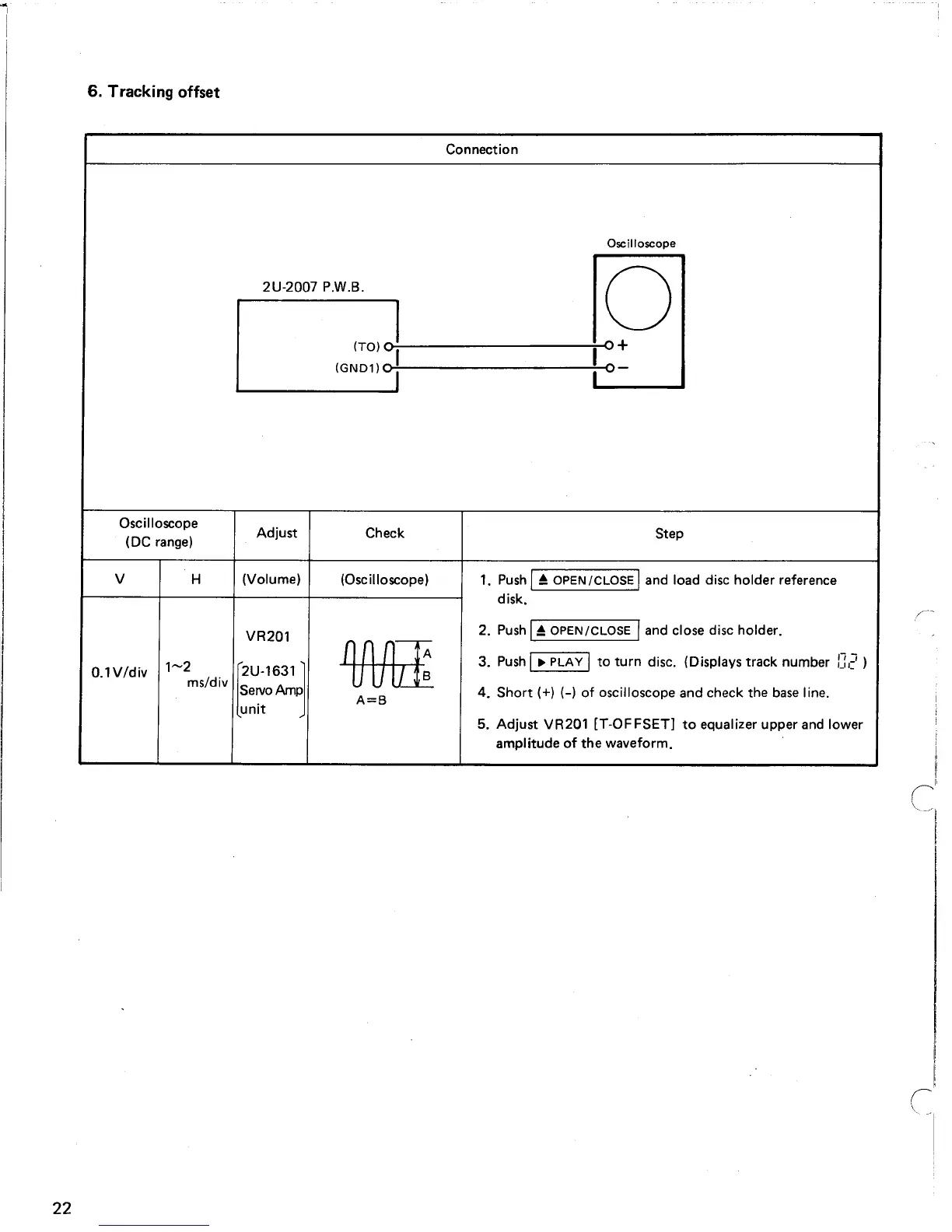

6. Tracking offset
Connection
Oscilloscope
2U-2007 P.W.B.
0
(TO) 0
1
0
+
(GND1) 0 I
0-
Oscilloscope
Adjust Check
Step
(DC
range)
V
H
(Volume)
(Osc i1loscope)
1. Push I! OPEN /CLOSE Iand load disc holder reference
disk.
VR201
2.
Push I!OPEN/CLOSE Iand close disc holder.
4ftfiIK
O.lV/div
1-2
r'631 j
3. Push I. PLAY I to turn disc. (Displays track number IJI? )
ms/div
Servo Amp
4.
Short (+) (-) of oscilloscope and check the base line.
unit
A=B
5. Adjust VR201 [T-OFFSETl to equalizer upper and lower
amplitude
of the waveform.
