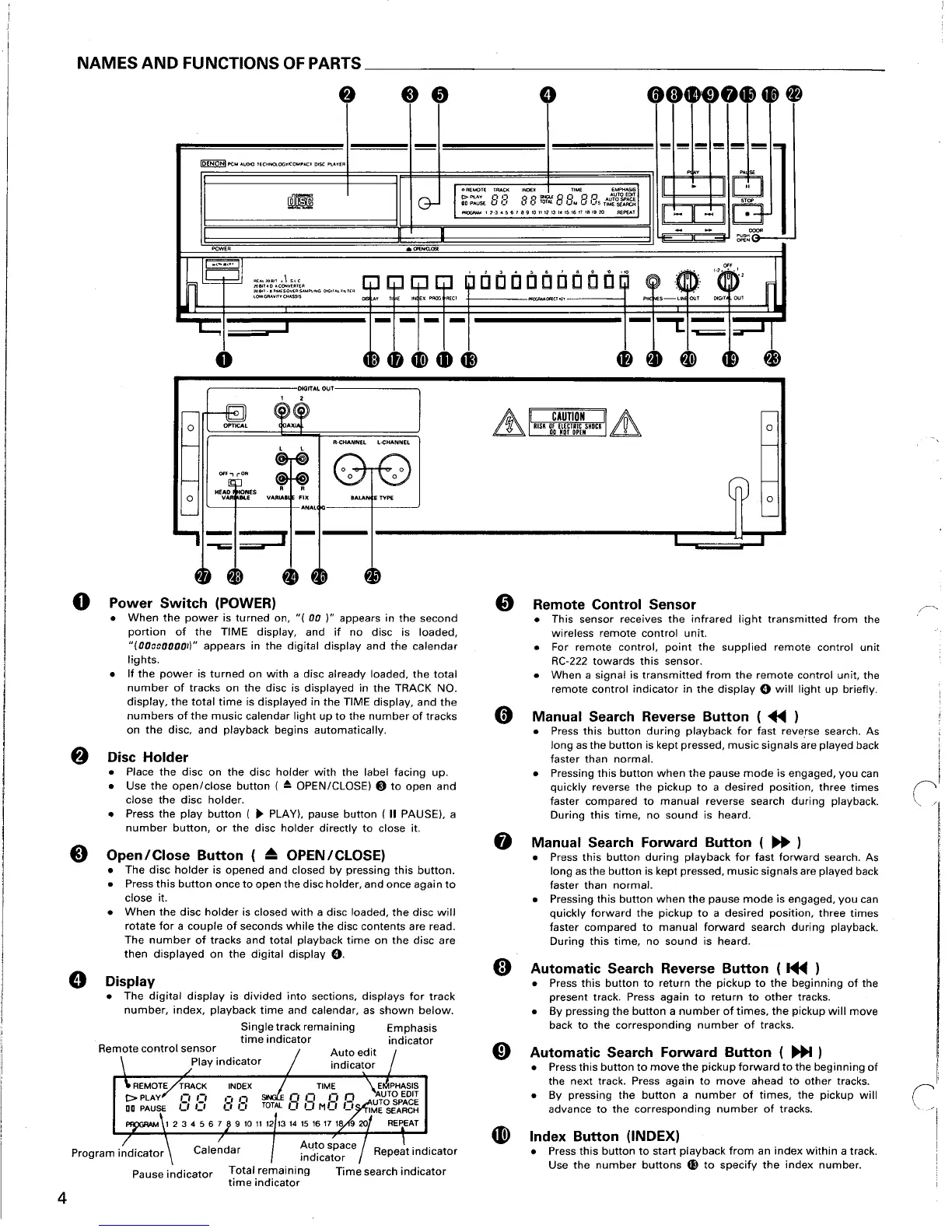

NAMES AND FUNCTIONS OF PARTS _
o
-
----
,c,;l
----
IO£NONI PC'" AUDIO IECHNO.OG~ICO"'''ACI DISC I'1. ... YER
,
]
I" ","<H' "'''' '''''' n", ''''"ll
II
~
e
G-
~~~~ BS 88~B8 ... BBsT£tie~~
I'IO:AW ''}.J. ~ 6 1 8 9 10 11 .'}13 ,. 1~ .6 11 18 19 20 RePEAT
I[ : ~
- II
III "+
~ClClOA
POWER
A""""''''
n~
~1:f~~r§}f:.~I'1.I~G O'G"4FIl'ER
~DDDDDDDDor
0
.~~.
'~~'
rr
"'~'
n E 1~ EX PllOO
"W
f"«AW,(RCToJ:'
"''''
LIN OUT DIGIT
00'
I
- - - -
- L ::;:i...-J1
L...,
0
4" fI
4D 48
4J)
4B m ~ 4~ ~
o
OfF, JON
HEAD NES
V ....
o
o
-:;;:::J- .. I- -I------------- ...... --·LI---I
I
C
1
Index Button (INDEX)
• Press this button to start playback from an index within a track.
Use
the number buttons CIl to specify the index number.
o Remote Control Sensor
• This sensor receives the infrared light transmitted from the
wireless remote control unit.
• For remote control, point the supplied remote control unit
RC-222 towards this sensor.
• When a signal is transmitted from the remote control unit, the
remote control indicator in the display 0 will light up briefly.
o Manual Search Reverse Button ( ~ )
• Press this button during playback for fast reverse search. As
long as the button is kept pressed, music signals are played back
faster than normal.
• Pressing this button when the pause mode is engaged, you can
quickly reverse the pickup to a desired position, three times
faster compared to manual reverse search during playback.
During this time, no sound is heard.
o Manual Search Forward Button ( ~ )
• Press this button during playback for fast forward search. As
long as the button is kept pressed, music signals are played back
faster than normal.
• Pressing this button when the pause mode is engaged, you can
quickly forward the pickup to a desired position, three times
faster compared to manual forward search during playback.
During this time, no sound is heard.
«;) Automatic Search Reverse Button ( ~ )
• Press this button to return the pickup to the beginning of the
present track. Press again to return to other tracks.
•
By pressing the button a number of times, the pickup will move
back to the corresponding number of tracks.
o Automatic Search Forward Button ( ~ )
• Press this button to move the pickup forward to the beginning of
the next track. Press again to move ahead to other tracks.
• By
pressing the button a number of times, the pickup will
advance to the corresponding number of tracks.
Auto space
indicator
Total remaining Time search indicator
time indicator
Pause indicator
Remote control sensor
Play indicator
o Power Switch (POWER)
• When the power is turned on, "( 00 )" appears in the second
portion of the TIME display, and if no disc is loaded,
"(000000001)" appears in the digital display and the calendar
lights.
• If the power is turned on with a disc already loaded, the total
number of tracks on the disc is displayed in the TRACK NO.
display, the total time is displayed in the TIME display, and the
numbers of the music calendar light up to the number of tracks
on the disc, and playback begins automatically.
8 Disc Holder
• Place the disc on the disc holder with the label facing up.
• Use the open/close button ( ~ OPEN/CLOSE) e to open and
close the disc holder.
• Press the play button ( ~ PLAY), pause button ( II PAUSE), a
number button, or the disc holder directly to close it.
8 OpenI Close Button ( o\\\!I:; OPEN I CLOSE)
• The disc holder is opened and closed by pressing this button.
• Press this button once to open the disc holder, and once again to
close it.
•
When the disc holder is closed with a disc loaded, the disc will
rotate for a couple of seconds while the disc contents are read.
The number of tracks and total playback time on the disc are
then displayed on the digital display O.
o Display
• The digital display is divided into sections, displays for track
number, index, playback time and calendar, as shown below.
Single track remaining Emphasis
time indicator indicator
