Denon DCD-3560 - FG-621 Mechanism Unit Details; FG-621 Mechanism Exploded View; FG-621 Mechanism Parts List

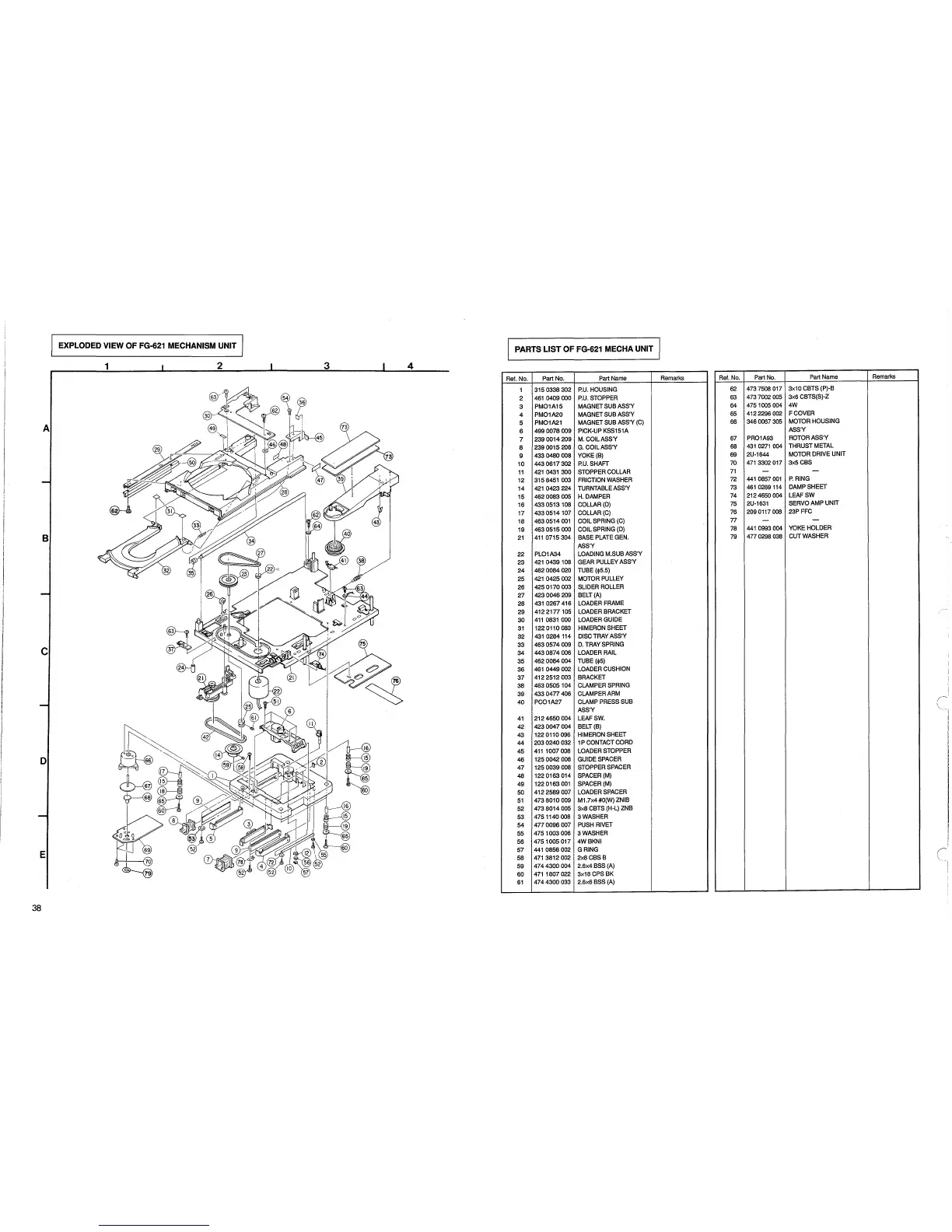

IEXPLODED VIEW OF FG-621 MECHANISM UNIT I
1 I 2
3
4
I PARTS LIST OF FG-621 MECHA UNIT I
A
B
c
o
E
38
Ref. No.
Part No.
Part Name
Remarks
1
3150338302
P.U. HOUSING
2
4610409000
P.U. STOPPER
3
PM01A15
MAGNET SUB ASS'Y
4
PM01A20
MAGNET SUB ASS'Y
5
PM01A21
MAGNET SUB ASS'Y
(C)
6
4990078009
PICK-UP KSS151A
7
2390014209 M. COIL ASS'Y
8
2390015208
G. COIL ASS'Y
9
4330480008
YOKE (B)
10
4430617302 P.U.SHAFT
11
4210431300
STOPPER COLLAR
12
3158451003
FRICTION WASHER
14
4210423224 TURNTABLE ASS'Y
15
4620083005
H.DAMPER
16
4330513108
COLLAR (D)
17
4330514107
COLLAR (C)
18
4630514001
COIL SPRING (C)
19
4630515000
COIL SPRING (D)
21
411 0715304
BASE PLATE GEN.
ASS'Y
22
PL01A34
LOADING M.SUB ASS'Y
23
4210439108
GEAR PULLEY ASS'Y
24
4620084020
TUBE (cjl5.5)
25
4210425002 MOTOR PULLEY
26
4250170003
SLIDER ROLLER
27
4230046209 BELT (A)
28
4310267416
LOADER FRAME
29
4122177 105
LOADER BRACKET
30
411 0831 000
LOADER GUIDE
31
1220110083
HIMERON SHEET
32
4310284114 DISC TRAY ASS'Y
33
4630574009
D. TRAY SPRING
34
4430874006
LOADER RAIL
35
4620084004 TUBE (cjl5)
36
4610449002
LOADER CUSHION
37
4122512003 BRACKET
38
4630505104
CLAMPER SPRING
39
4330477 406
CLAMPER
ARM
40
PC01A27
CLAMP PRESS SUB
ASS'Y
41
2124650004 LEAFSW.
42
4230047004
BELT (B)
43
1220110096
HIMERON SHEET
44
2030240 032
1P CONTACT CORD
45
411 1007008
LOADER STOPPER
46
1250042008
GUIDE SPACER
47
1250039008
STOPPER SPACER
48
1220163 014
SPACER(M)
49
1220163 001
SPACER(M)
50
4122589007 LOADER SPACER
51
4738010009
M1.7x4#0(W)ZNIB
52
4738014005
3x8 CBTS (H-L) ZNB
53
4751140008 3 WASHER
54
4770096007 PUSH RIVET
55
4751003006 3 WASHER
56
4751005017 4WBKNI
57
4410856002 GRING
58
4713812002 2x8CBS B
59
4744300004
2.6x4 BSS (A)
60
4711807022
3x18 CPS BK
61
4744300033
2.6x6 BSS (A)
Ref. No.
Part No.
Part Name
Remarks
62
4737508017
3x10 CBTS (P)-B
63
4737002005
3x6 CBTS(S)-Z
64
4751005004
4W
65
4122296002
FCOVER
66
3460067305
MOTOR HOUSING
ASS'Y
67
PR01A93
ROTOR ASS'Y
68
431 0271 004
THRUST METAL
69
2U-1644
MOTOR DRIVE UNIT
70
471 3302017
3x5CBS
71
-
-
72
4410857001
P. RING
73
461 0269114
DAMP SHEET
74
2124650004
LEAFSW
75
2U-1631
SERVO AMP UNIT
76
2090117008
23P
FFC
77
-
-
78
4410993004
YOKE HOLDER
79
4770298038
CUT WASHER
