Denon DCD-3560 - PLL, Slide, and Tracking Adjustments

I
I
I~
I
I

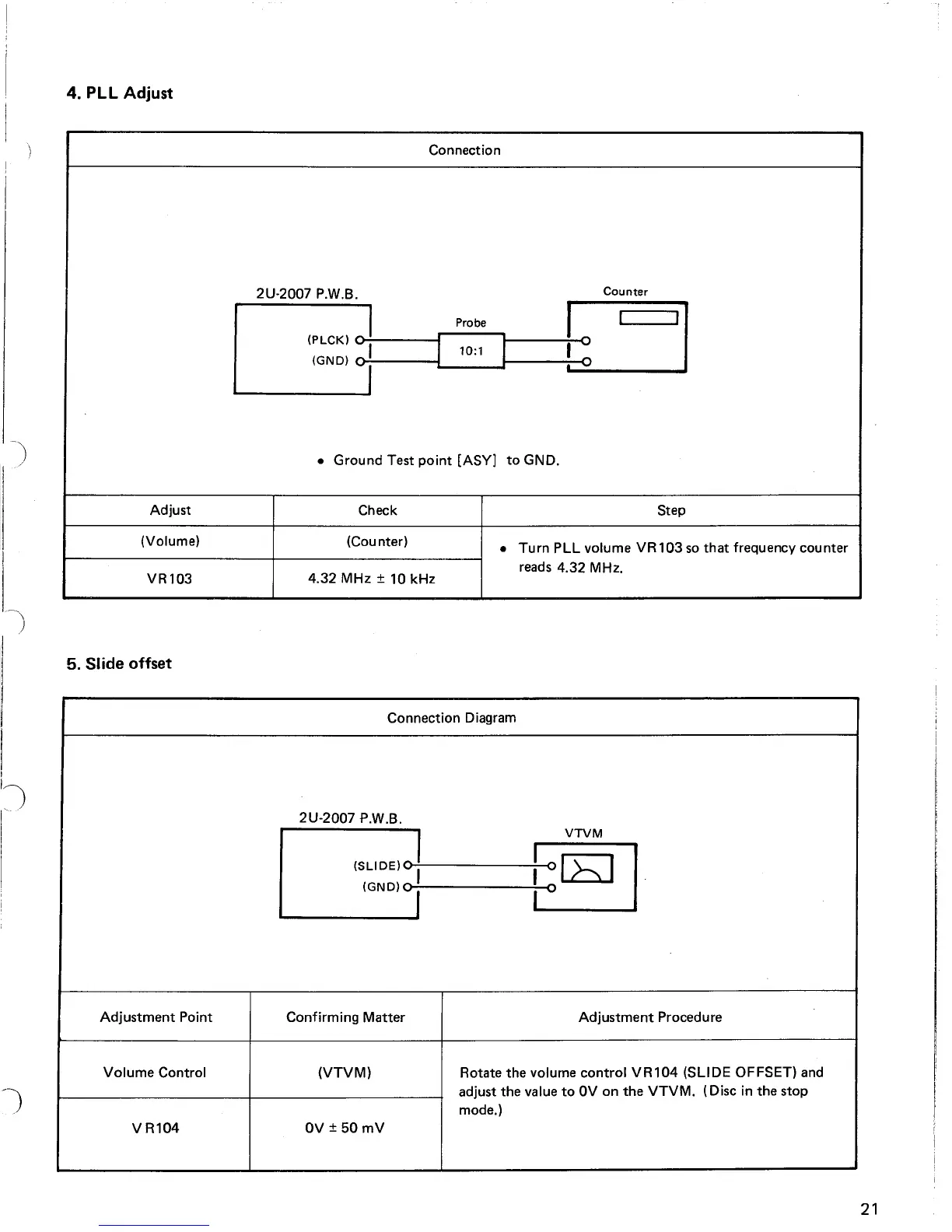

4. PLL Adjust
Connection
2U-2007 PW.B.
Counter
(PLCKI ~!
Probe
U
I
I
10:1
(GND) I
• Ground Test point [ASY) to GND.
Adjust Check Step
(Volume)
(Counter)
•
Turn PLL volume VR 103 so that frequency counter
4.32 MHz
± 10 kHz
reads 4.32 MHz.
VR103
5. Slide offset
Connection Diagram
2U-2007
PW.B.
(SLIDEIO!
VTVM
! 0[8 I
(GND) 0 I
0
Adjustment Point
Confirming Matter
Adjustment Procedure
Volume Control (VTVM) Rotate the volume control VR104 (SLIDE OFFSET) and
adjust the value to OV on the VTVM. (Disc in the stop
mode.)
VR104
OV ± 50 mV
21
