DCD-CX3
TMP86FH47ADUG (IC116)

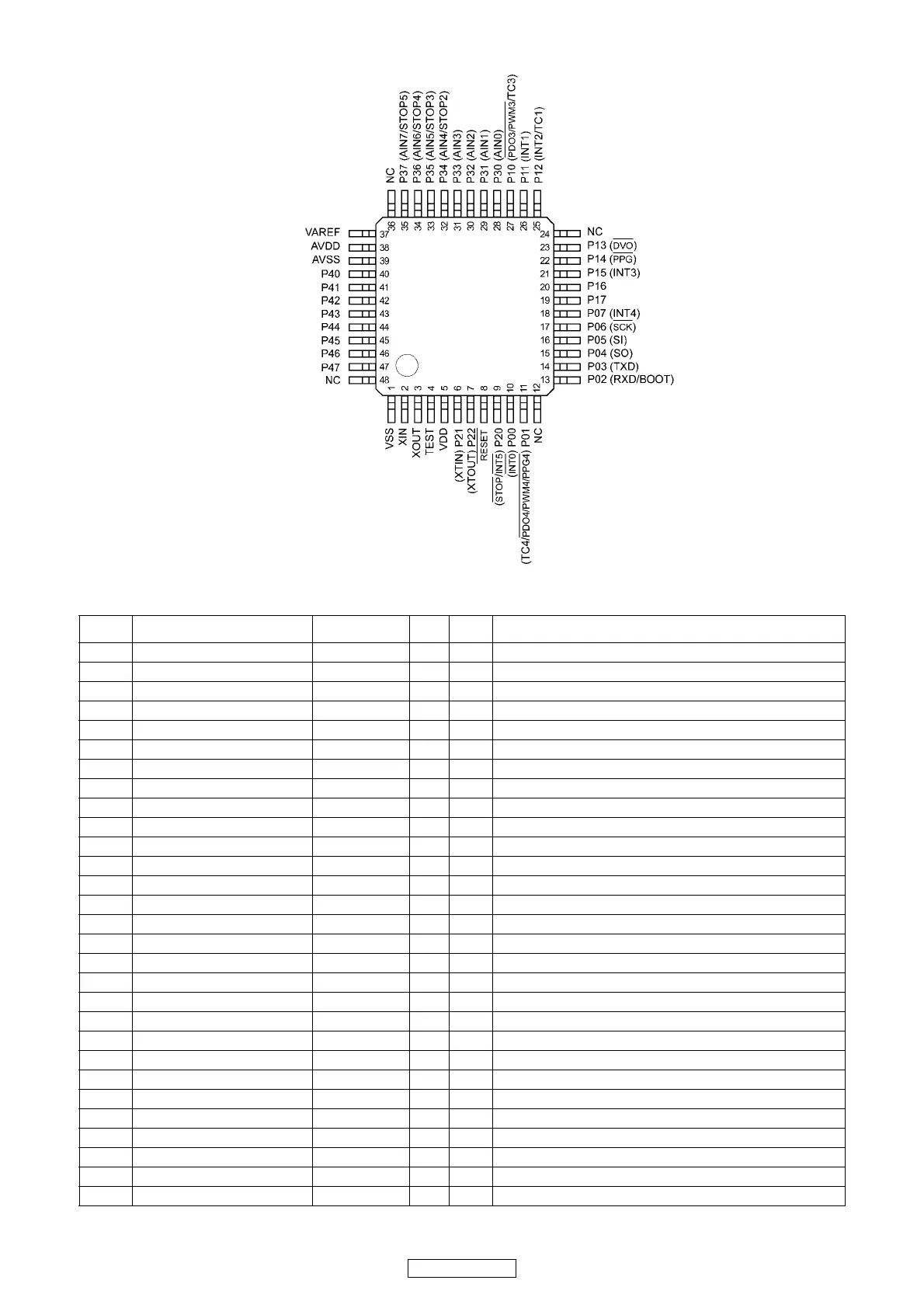

TMP86FH47ADUG Terminal Function
pin No port mode I/O Intial action
1 VSS GND I
2 XIN Xin I X'tal in
3 XOUT Xout O X'tal out
4 TEST TEST I L Normal mode ; L Wirte mode ; H
5VDD +3.3V I
6 (XTIN)P21 OPEN O L
7 (XTOUT)P22 OPEN O L
8 RESET RESET I Hard Reset
9 (STOP/INT5)P20 REMOCON I L REMOCON INPUT (SHARP FORMAT)
10 (INT0)P00 OPEN O L
11 (TC4/PD04/PWM4/PPG4)P01 OPEN O L
12 NC OPEN
13 P02(RXD/BOOT) RXD I L RXD from DV3.2(70pin)
14 P03(TXD) TXD O L TXD to DV3.2(71pin)
15 P04(SO) OPEN O L
16 P05(SI) OPEN O L
17 P06(SCK) OPEN O L
18 P07(INT4) OPEN O L
19 P17 ON/STB O L ON/STB (H;ON L;STANDBY)
20 P16 NRST O L NRST for DV3.2
21 P15(INT3) DV_STB I L ON/STB OK from DV3.2
22 P14(PPG) REDLED O L RED LED H;ON (for POWER ON)
23 P13(DVO) ORGLED O L ORG LED H;ON (for STANDBY)
24 NC OPEN
25 P12(INT2/TC1) OPEN O
26 P11(INT1) OPEN O
27 P10(PDO3/PWM3/TC3) REMO_SEL O H REMOTE LINE SELECT (L;DV3.2 H;STANDBY(TMP86))
28 P30(AIN0) OPEN O
29 P31(AIN1) OPEN O
