72
DCD-CX3
各部の波形と測定方法
メイン基板の波形チェックを行うためにはオシロスコー
プの GND(
-
) プローブを "Vref" ポイントに接続します。

測定ディスク: SACD/DACTestDisc
CD/TCD-784
(テストポイントとプローブ間に延長ワイヤを使用する
のがより良い方法です。
HF 波形を観測する場合、できるだけ短い延長ワイヤ
を使用してください。
HF 波形がノイズで不明瞭、またはアイパターンが識
別不能の場合は Iop 測定後にトラバースユニットを交
換してください。
ポイント 〜 は、下図のポイントで測定してくだ
さい。
注 意
1 22
MEASURING METHOD AND WAVEFORMS
To check the waveforms on the Main P.W.B., the GND (
-
) probe of the oscilloscope to “Vref” point.
(Except for lnner SW, TRVSW)
Measuring Disc: SACD/DAC Test Disc
CD/TCD-784
(It is better to use wires for extending between the probe
and test points.)
When watching the HF waveform, use the extending
wire as short as possible.
When HF waveform is noisy or cannot discriminate the
eye-pattern, replace the Traverse Unit after measuring
the lop.
Point 〜 is measured with the point shown below.
NOTES
1 22
1710
4
13256 143
11 158
21
22
20
16
19
18
17
1 9
12

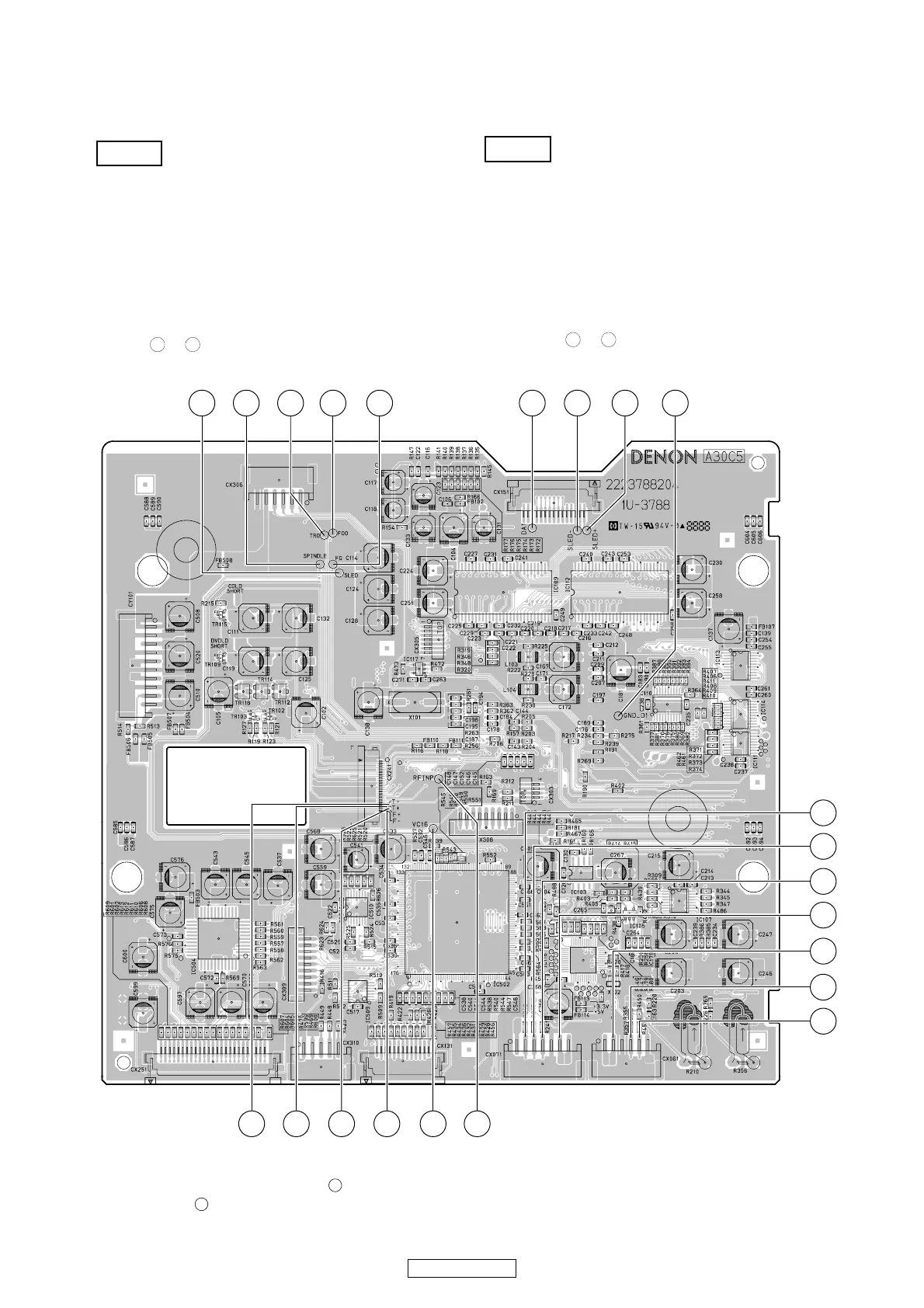

1U-3788 SAD MODULE P.W.B. Unit : Component Side
Reference voltage of ⑬,⑯~ is GND_D1 , and reference voltage of other point is VC16 .
*⑬、⑯〜 の基準電圧は GNDD1 ⑮で、他のポイントの基準電圧は VC16 ⑭です。
