BHT-805B
CU-811
The CU-811 has an IEEE802.3-compliant Ethernet interface port (100Base-TX).

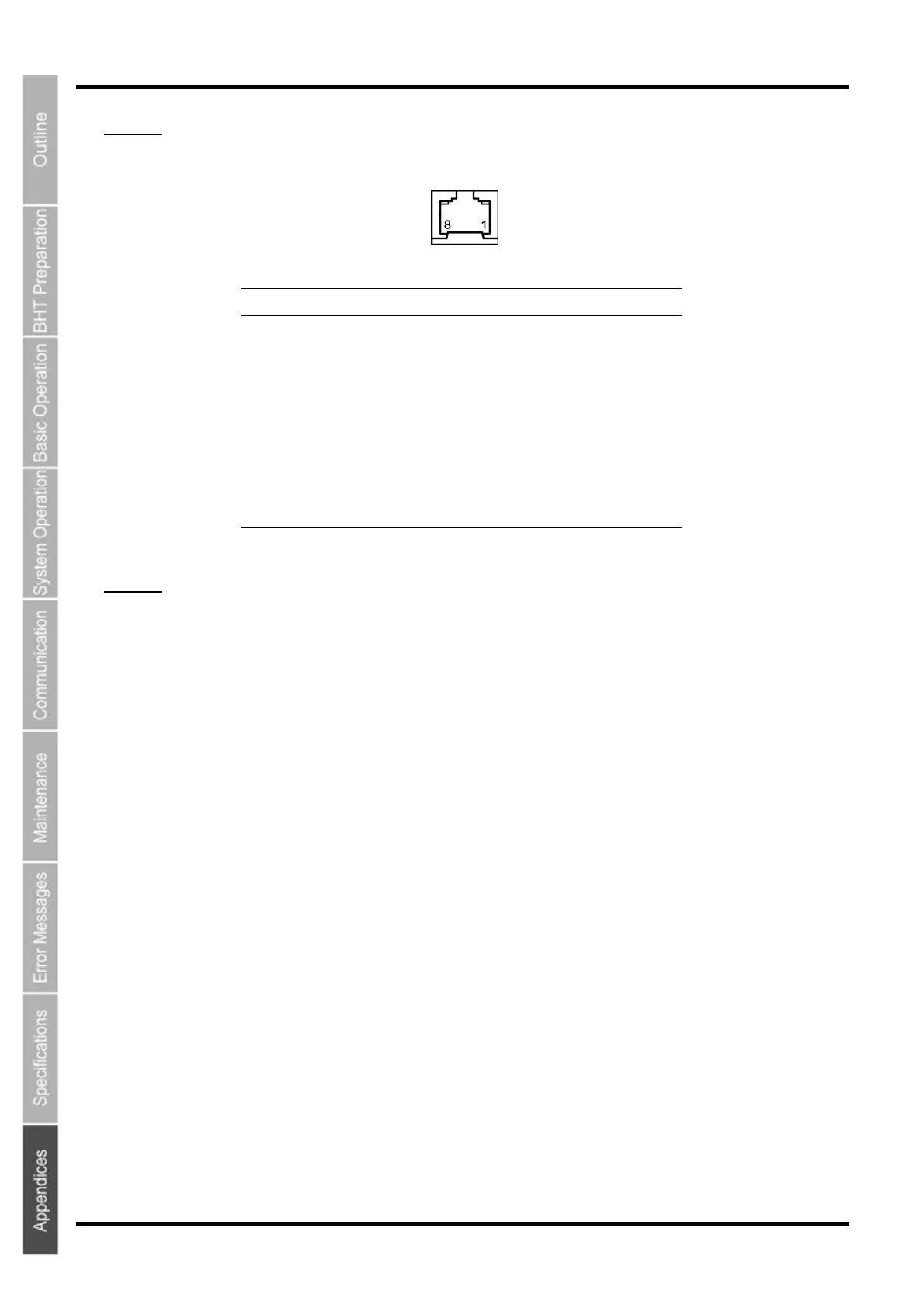

Ethernet Interface Port (RJ45 jack) on the CU-811
Pin No. Signal Functions
1 TD+ Send data
2 TD- Send data
3 RD+ Receive data
4 N.C. No connection
5 N.C. No connection
6 RD- Receive data
7 N.C. No connection
8 N.C. No connection
CU-821
The USB interface on the CU-821 is USB1.1 (Full-speed) compliant, with a Type Mini-B receptacle.
162
