BHT-805B
[7] SettingtheTCP/IP,FTPandDHCP
Use the following procedure to change the TCP/IP, FTP and DHCP settings.
1. Select “7: TCP/IP” at the SET SYSTEM menu and then press the
ENT key.

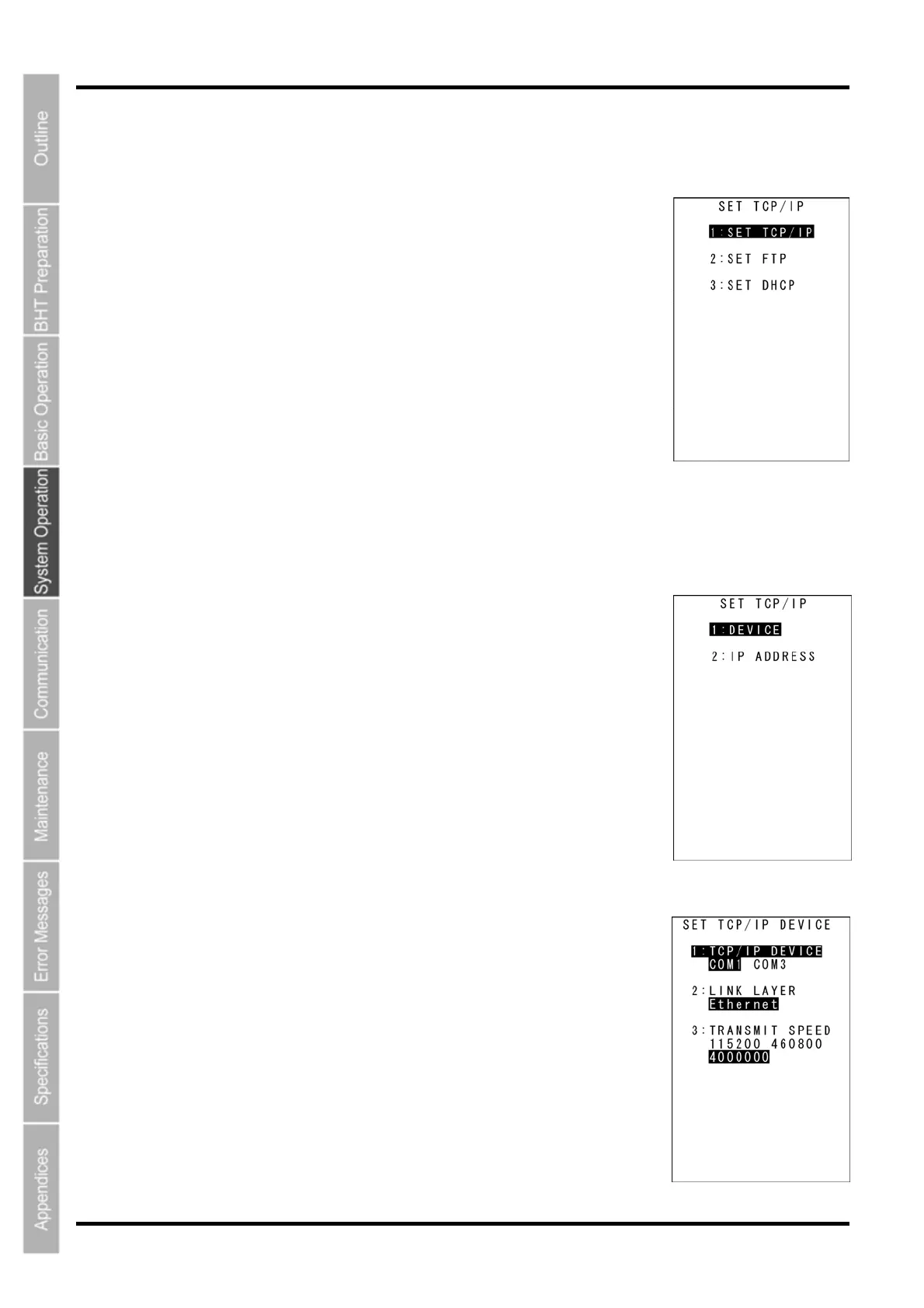

The SET TCP/IP menu screen on the right displays.
2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3]) to
highlight the item to be set, and then press the ENT key.
“1: SET TCP/IP”: Changes the TCP/IP setting.
“2: SET FTP”: Changes the FTP setting.
“3: SET DHCP”: Changes the DHCP setting.
Refer to the following section for details of the above items.
Press the BS/C key to return to the SET SYSTEM menu.
 “1: SET TCP/IP”: Setting the TCP/IP
1. Select “1: SET TCP/IP” at the SET TCP/IP menu and then press the
ENT key.
The SET TCP/IP menu screen on the right displays.
2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight
the item to be set, and then press the ENT key.
Press the BS/C key to return to the SET TCP/IP menu.
“1: DEVICE”: Setting the TCP/IP device
Select “1: DEVICE” at the SET TCP/IP menu to display the screen on the
right where the current settings are displayed.
“1: TCP/IP DEVICE”: TCP/IP communication device
“2: LINK LAYER”: Link layer
“3 TRANSMIT SPEED”: Communication speed with CU
Press the BS/C key to return to the SET TCP/IP menu.
