DESKO PENTA Scanner - Hardware Integration

Technical Specification DESKO PENTA Scanner
®
& Page 13 of 37
DESKO PENTA Scanner
®
BGR & DESKO PENTA Scanner
®
CKI
4.1 Hardware Integration

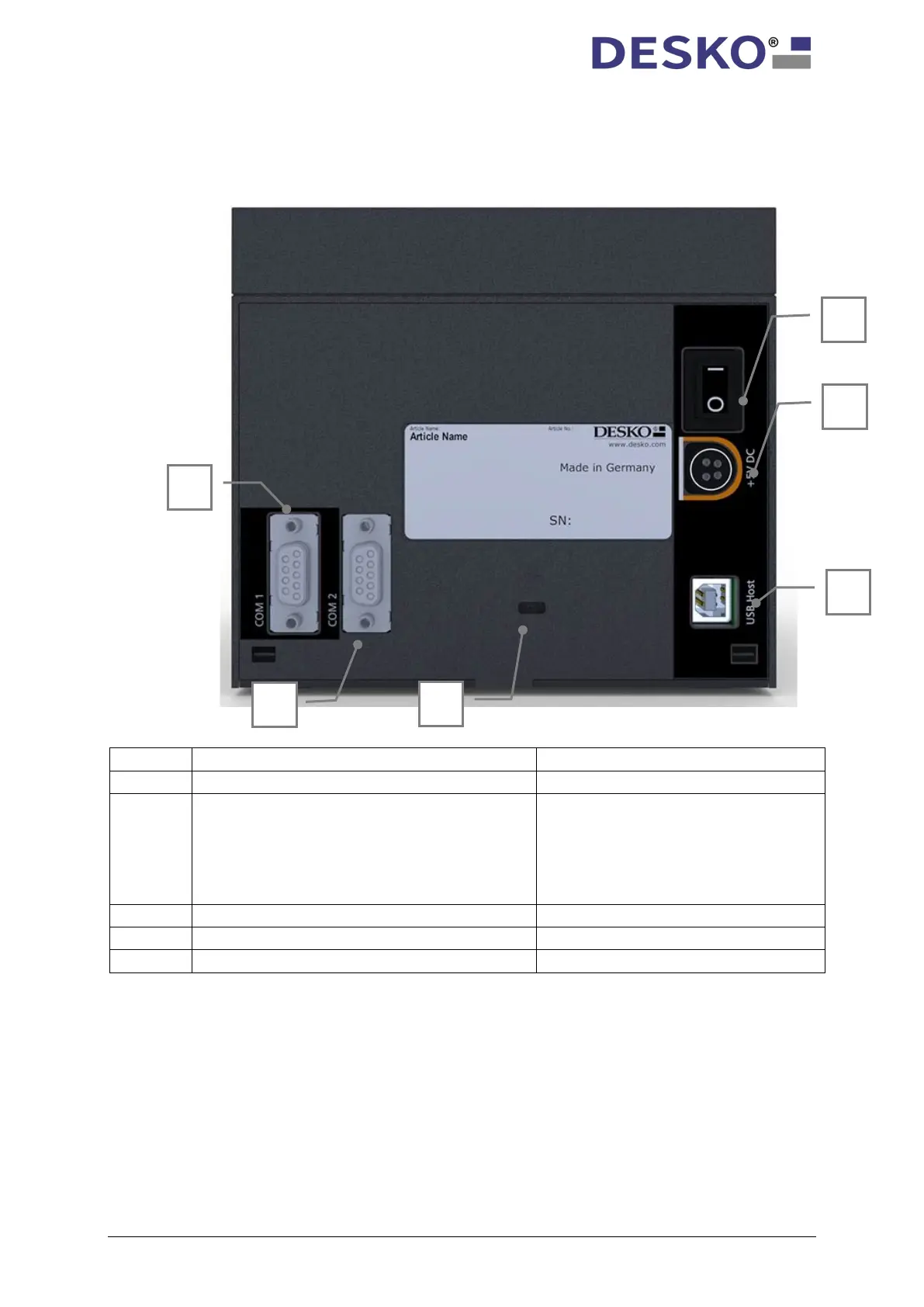

The picture below gives you an overview of available interfaces and ports on the backside:
1
Power Switch
ON / OFF
2
Power Connector
5 V / 2,5 A
3
USB Host
USB 2.0 high speed communication
between DESKO PENTA Scanner
®
,
DESKO PENTA Scanner
®
BGR,
DESKO PENTA Scanner
®
CKI and
host PC
4
Kensington Lock
5
COM 2*
D-Sub 9 pin male
6
COM 1*
D-Sub 9 pin female
*only available with DESKO PENTA Scanner
®
BGR & DESKO PENTA Scanner
®
CKI models
1
2
3
4
6
5
