DESKO PENTA Scanner - Hardware Integration

Technical Specification DESKO PENTA Scanner
®
& Page 31 of 37
DESKO PENTA Scanner
®
BGR & DESKO PENTA Scanner
®
CKI
13.1 Hardware Integration
To use the DESKO PENTA Scanner
®
, DESKO PENTA Scanner
®
BGR or the DESKO PENTA
Scanner
®
CKI with embedded PC board it needs to be connected to the power supply. The
DESKO PENTA Scanner
®
, DESKO PENTA Scanner
®
BGR or the DESKO PENTA Scanner
®
CKI and
PC will be powered via one power supply. The power connector is accessible enabling the
user to plug and unplug the power cord.

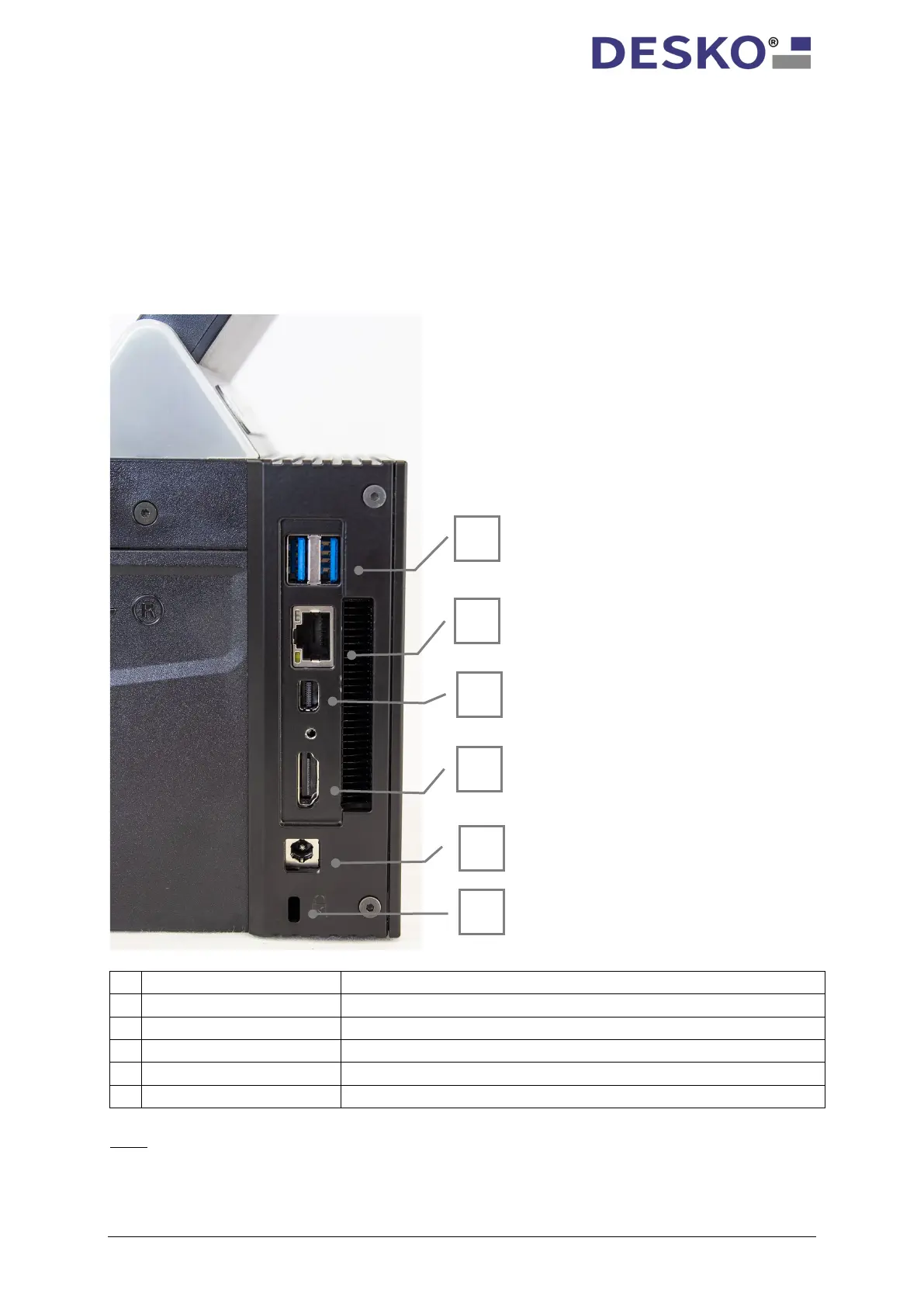

The picture below gives an overview of available interfaces:
1
2 x USB Host
USB 3.0 high speed communication
2
RJ45
Ethernet
3
Mini DP
Mini Display Port
4
HDMI 2.0
5
Power Connector
19 V DC / 2,5 A
6
Kensington Lock
Theft protection
Note: all interfaces are accessible and protected by a small removable cover to protect them
from unauthorized access. The connector cover is secured with a screw and can be removed.
Please use a screwdriver to release the screw.
1
2
3
4
5
6
