4.2 Hardware Setup

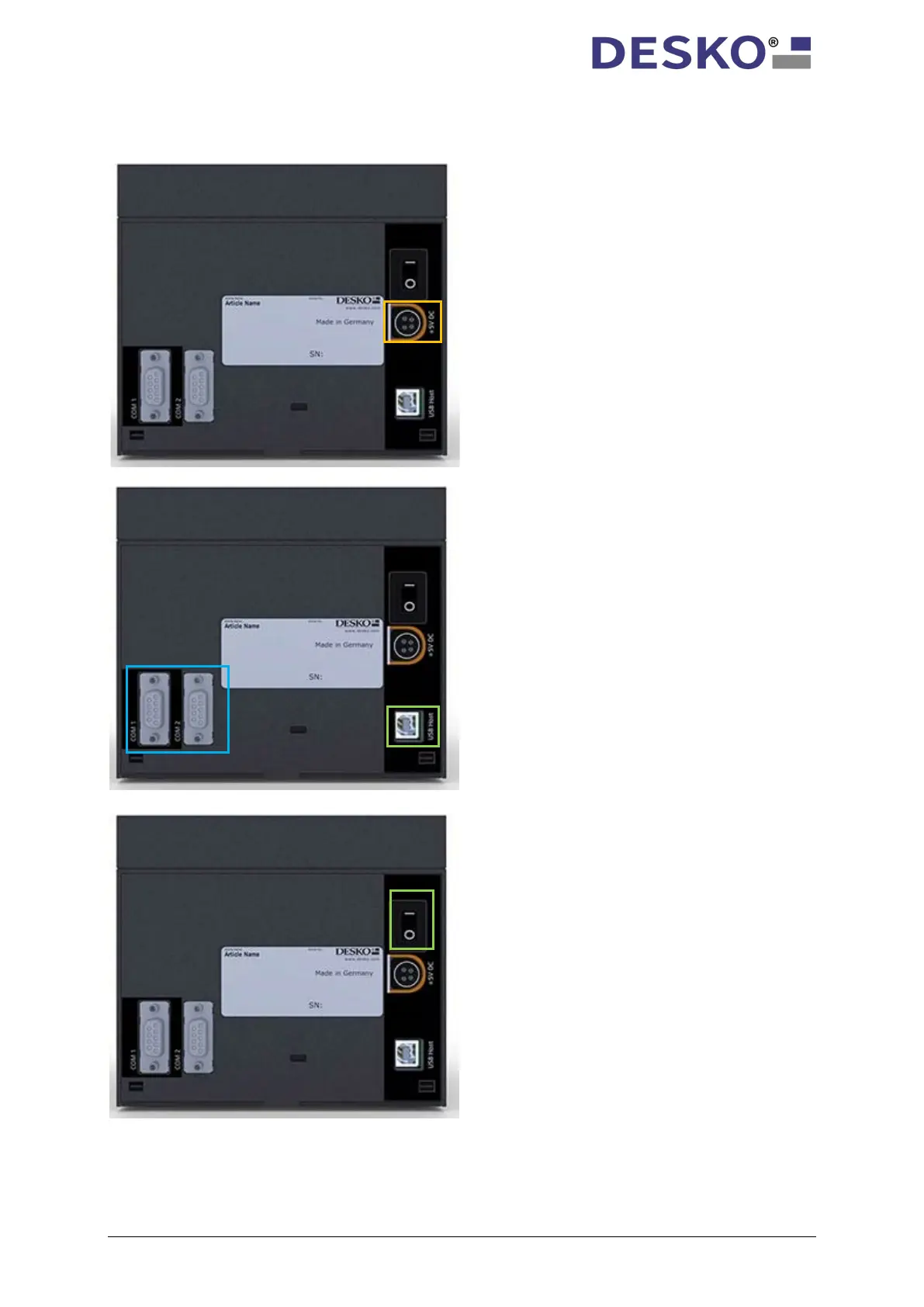

Step 1 – Power Connection
Connect the DESKO PENTA Scanner
®
,
DESKO PENTA Scanner
®
BGR, DESKO
PENTA Scanner
®
CKI to the power
plug (orange box). Only use the
provided power supply!
Step 2 – Signal Connection
Connect the DESKO PENTA Scanner
®
,
DESKO PENTA Scanner
®
BGR, DESKO
PENTA Scanner
®
CKI via the provided
USB cable with your PC (green box).
Afterwards, you can connect other
cables e.g. serial connectors (blue
box).
Step 3 – Turning on the DESKO
PENTA Scanner
®
, DESKO PENTA
Scanner
®
BGR, DESKO PENTA
Scanner
®
CKI
After connecting the DESKO PENTA
Scanner
®
, DESKO PENTA Scanner
®
BGR, DESKO PENTA Scanner
®
CKI
turn the device on by switching the
power switch (green box).
