- 10 - 6159924330 - 08/2020
Hardware installation
Installing controllers, tools and accessories
Technical data
Environment restrictions
Refer to the Safety Instructions booklet supplied in the packaging box of controllers.
Line protection
Controllers have a JVL6-32 residual current circuit breaker with over-current protection which provides protection
against earth leakage faults (30mA), overloads, short-circuits and over-current in the installation.
There is no fuse.
The over-current protection of the JVL6-32 uses “D” tripping characteristics.

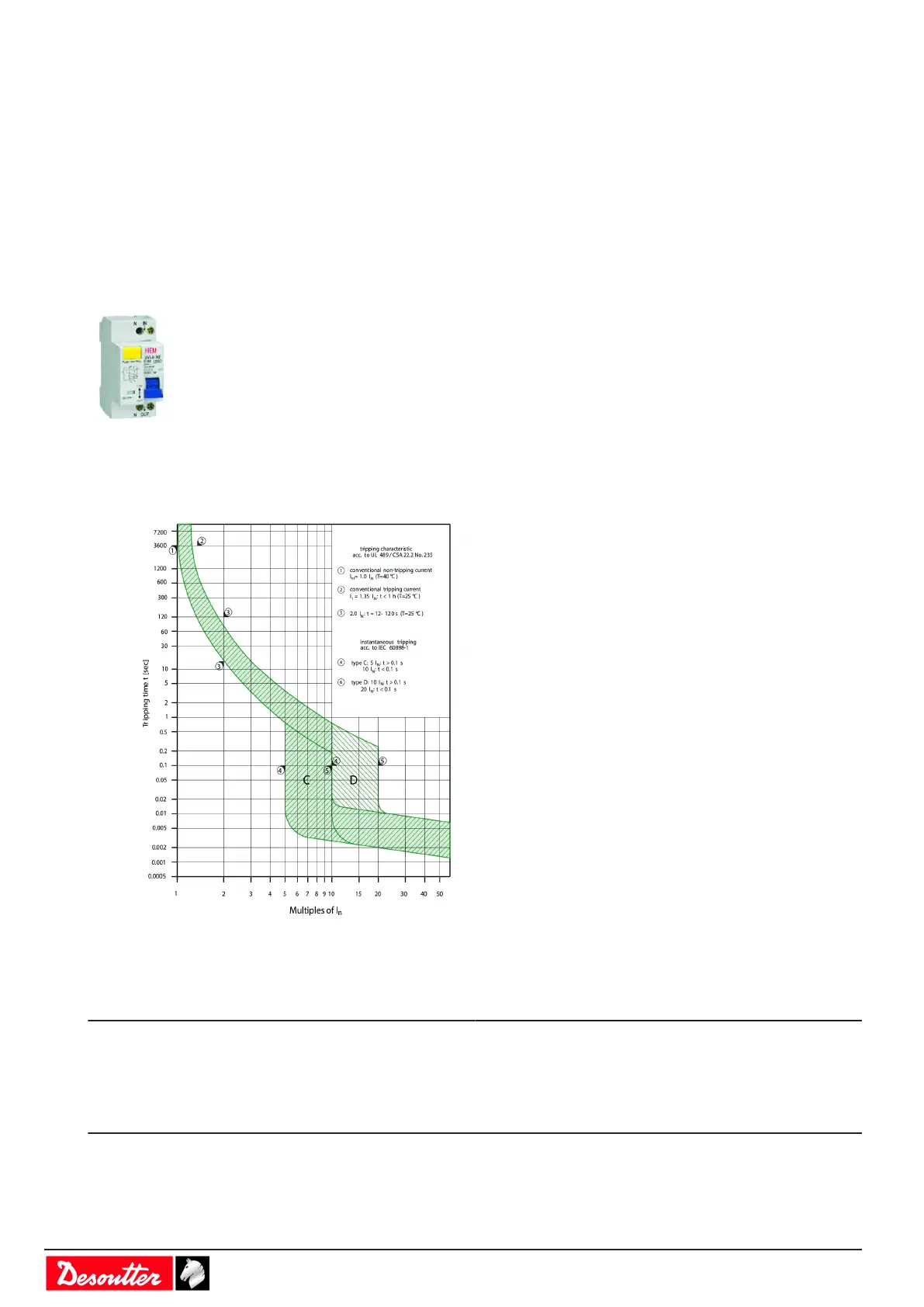

Figure 1 - Curve C and D
Never replace the circuit breaker by a model of higher value.
Never replace the circuit breaker by a short-circuit.
Voltage 200-240 V
Max. current 16 A
Curve D
Differential sensitivity 30 mA
GFI type A
• The standby consumption is 17 W.
• The max power available supplied via the 24V power supply (between pins 2 and 3 of the I/O connector) is as
follows.
