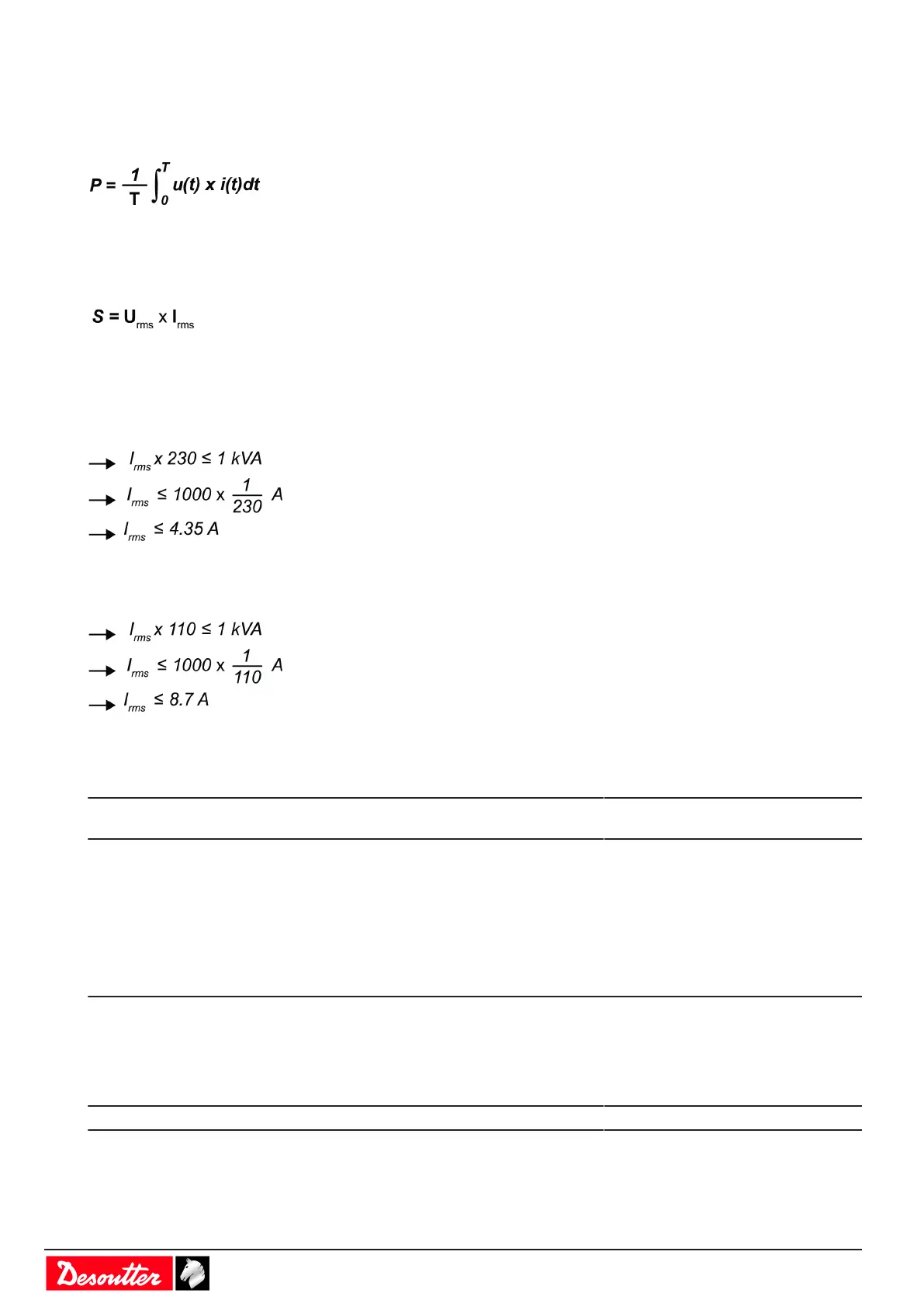

S = apparent power measured in VA.
P = true power measured in Watts.
Q = reactive power measured in VAR.
α = impedance phase angle.
where T is the period of the signal.
In a CVI3 controller, the power peak is 5kW.
To dimension an installation, the apparent power consumption (S) is the only needed information.
The apparent power peak is 6kVA.
The duration of the peak is < 0.5 s
The mean apparent power is always ≤ 1 kVA.
At 230 V
We recommend to use a circuit breaker 10A Curve D.
At 110 V
We recommend to use a circuit breaker 20A Curve D.
Power consumption
Model
A
at 110 V
A
at 240 V
CVI3 Essential 8 4
CVI3 Function 8 4
CVI3 Function eSTOP 8 4
CVI3 Vision 8 4
CVI3 Vision eSTOP 8 4
TWINCVI3 16 8
TWINCVI3 eSTOP 16 8
IP rating
40
Weight
Controller Weight (kg) Weight (lb)
CVI3 Essential 9.4 20.7
CVI3 Function 9.4 20.7
CVI3 Function eSTOP 9.4 20.7
