Safety-related characteristic data
Value for
1 controller
Value for
2 controllers
DC 99% 99%
MTTFd [hours] in accordance with EN
ISO 13849-1:2015
HIGH – 93 years HIGH – 93 years
TM in accordance with EN ISO
13849-1:2015
20 years 20 years

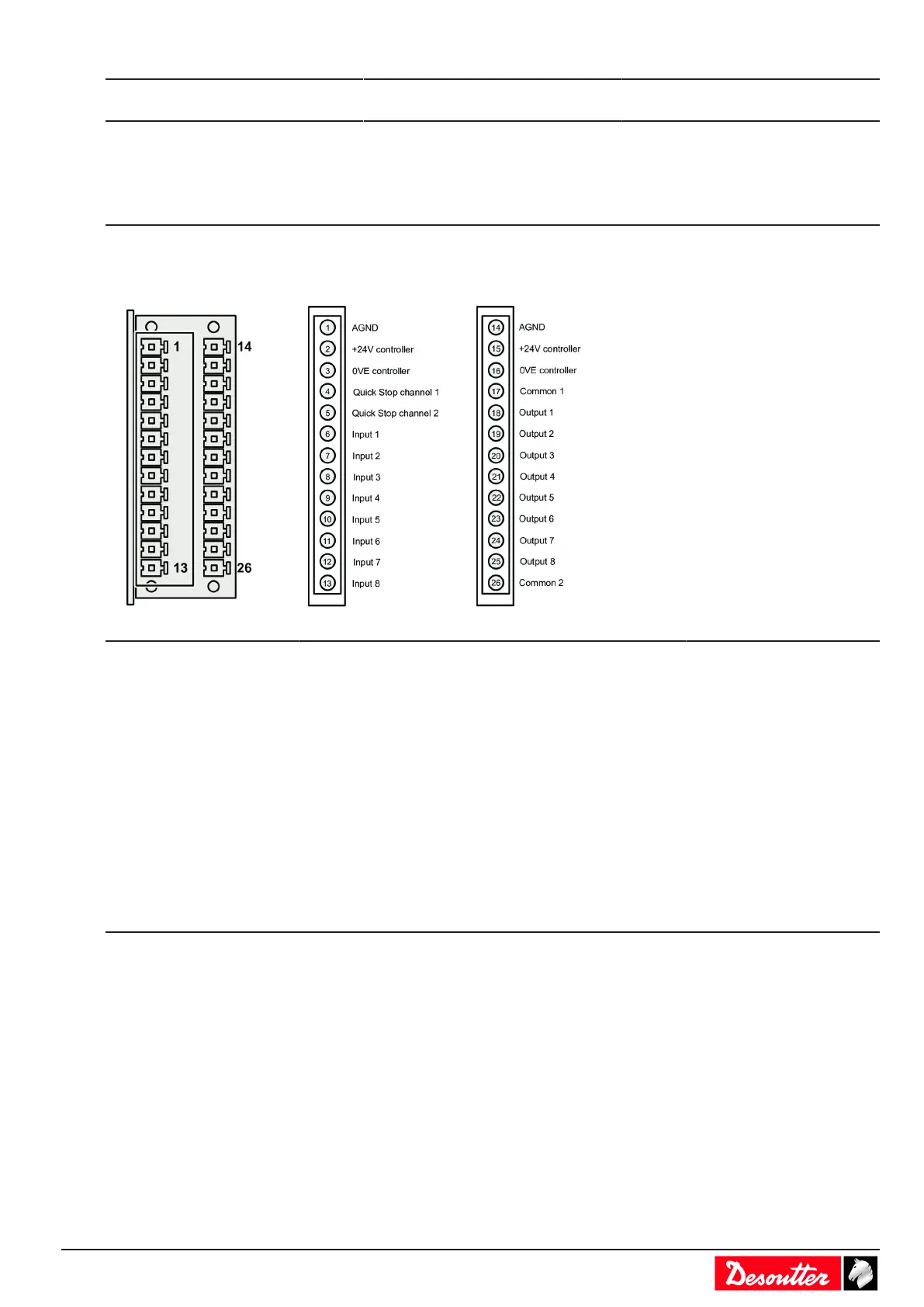

Input/Output connection
Description
1 AGND 14 AGND
2 +24V controller 15 +24V controller
3 0VE controller 16 0VE controller
4 Quick Stop channel 1 17 Common 1
5 Quick Stop channel 2 18 Output 1
6 Input 1 19 Output 2
7 Input 2 20 Output 3
8 Input 3 21 Output 4
9 Input 4 22 Output 5
10 Input 5 23 Output 6
11 Input 6 24 Output 7
12 Input 7 25 Output 8
13 Input 8 26 Common 2
Example of connection
It is possible to connect a 24V external supply in parallel of the 24V delivered by the controller.
