Desoutter CVI3 Vision Installation And Upgrades

- 28 - 6159924330 - 08/2020
Do not set up the tool cable as shown below.

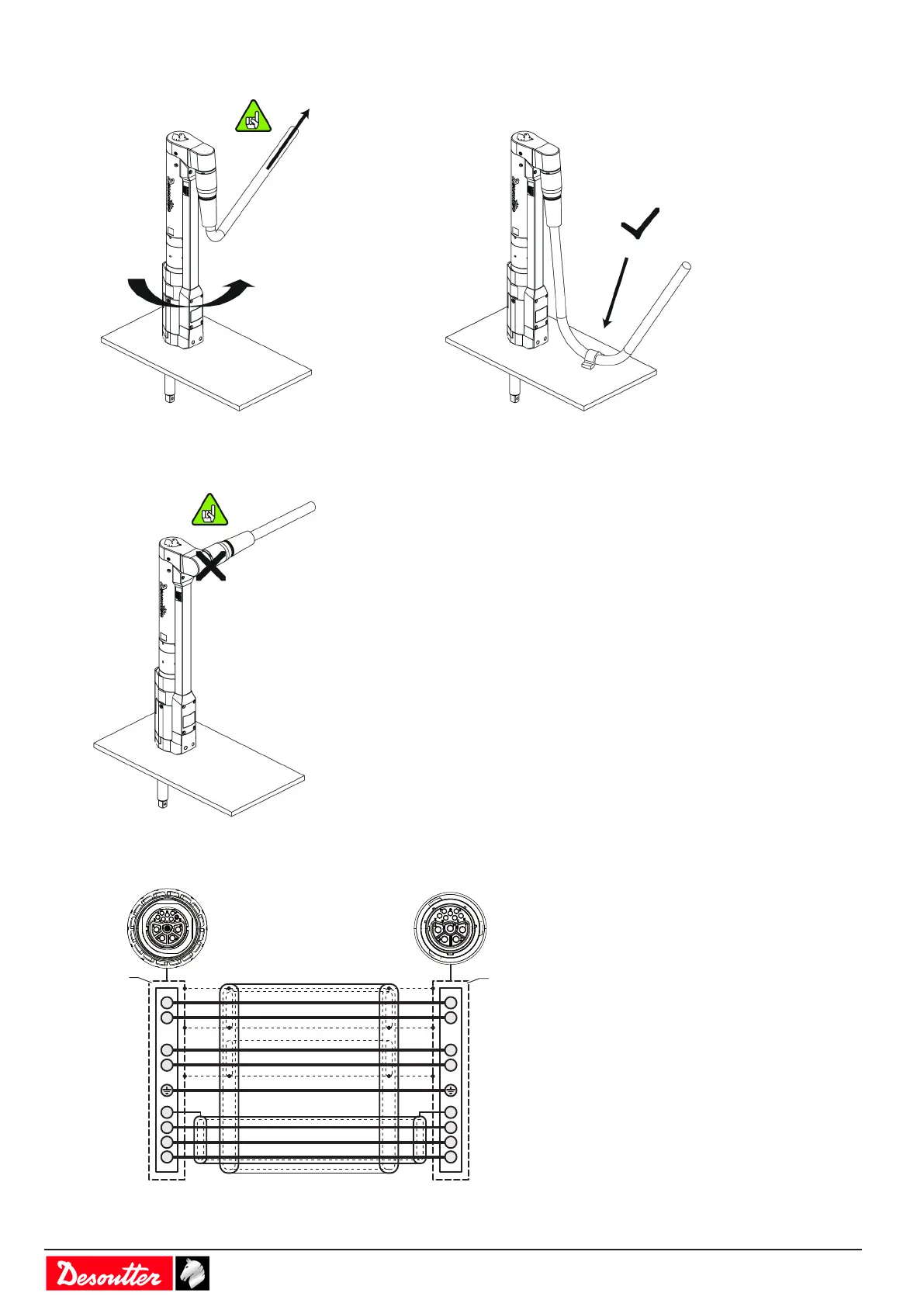

Tool connector wiring diagram
A
B
STA
STB
+15V
0V
Ground
Phase 1
Phase 2
Phase 3
(a)
(a)
(a)
(a)
(a)
(b) (b)
1mm² 1mm²
0.25mm²/120Ω
0.25mm²/120Ω
0.35mm²
0.35mm²
1mm² or 2.5mm²
1mm² or 2.5mm²
1mm² or 2.5mm²
1mm² or 2.5mm²
(a)
E
F
A
B
4
1
2
3
E
F
A
B
4
1
2
3
